DTC P0112, P0113: IAT Sensor: Wiring Diagram

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

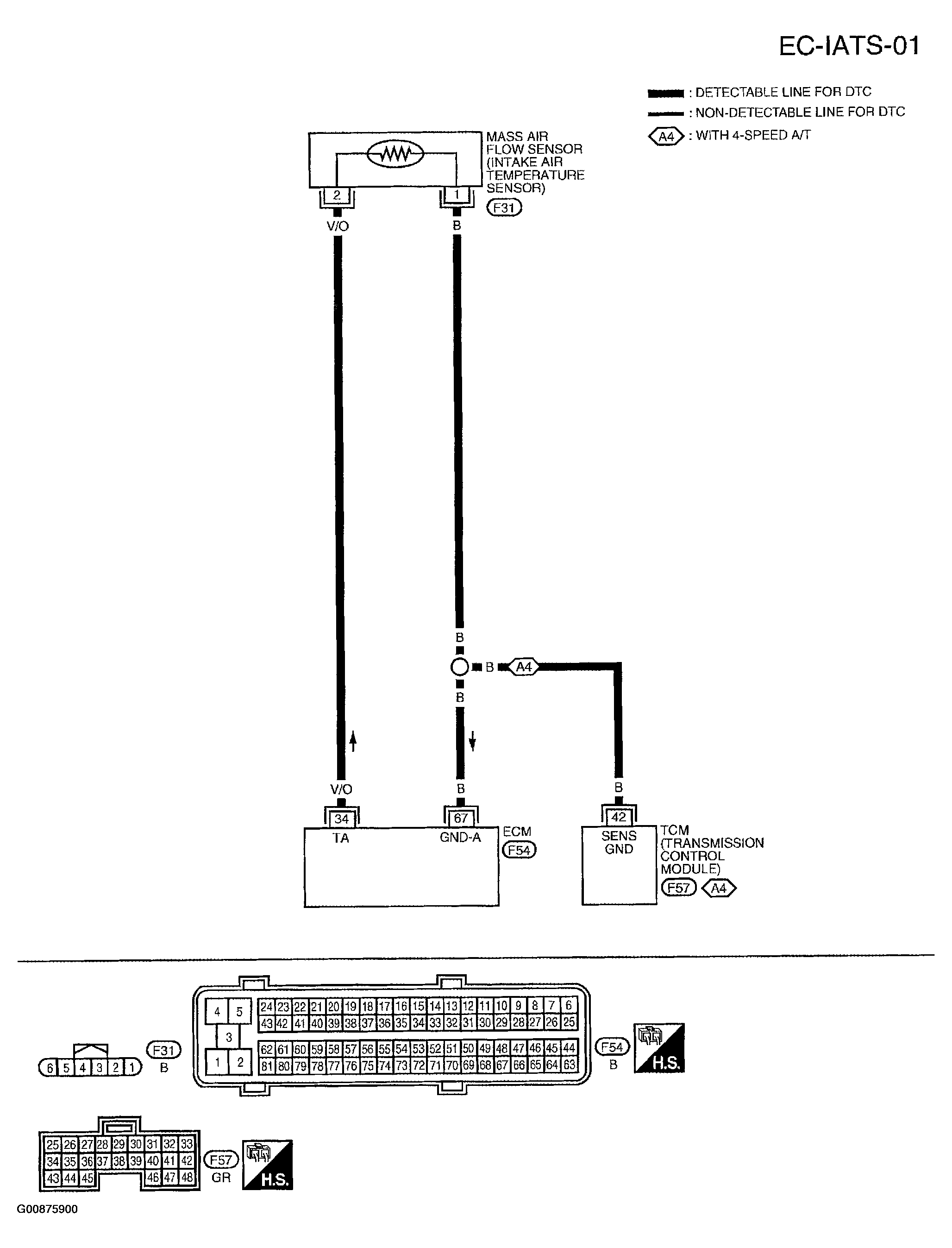

Fig 1: Wiring Diagram - EC-IATS-01
G00875900Courtesy of NISSAN MOTOR CO., U.S.A.
