Engine Control Component Parts Location

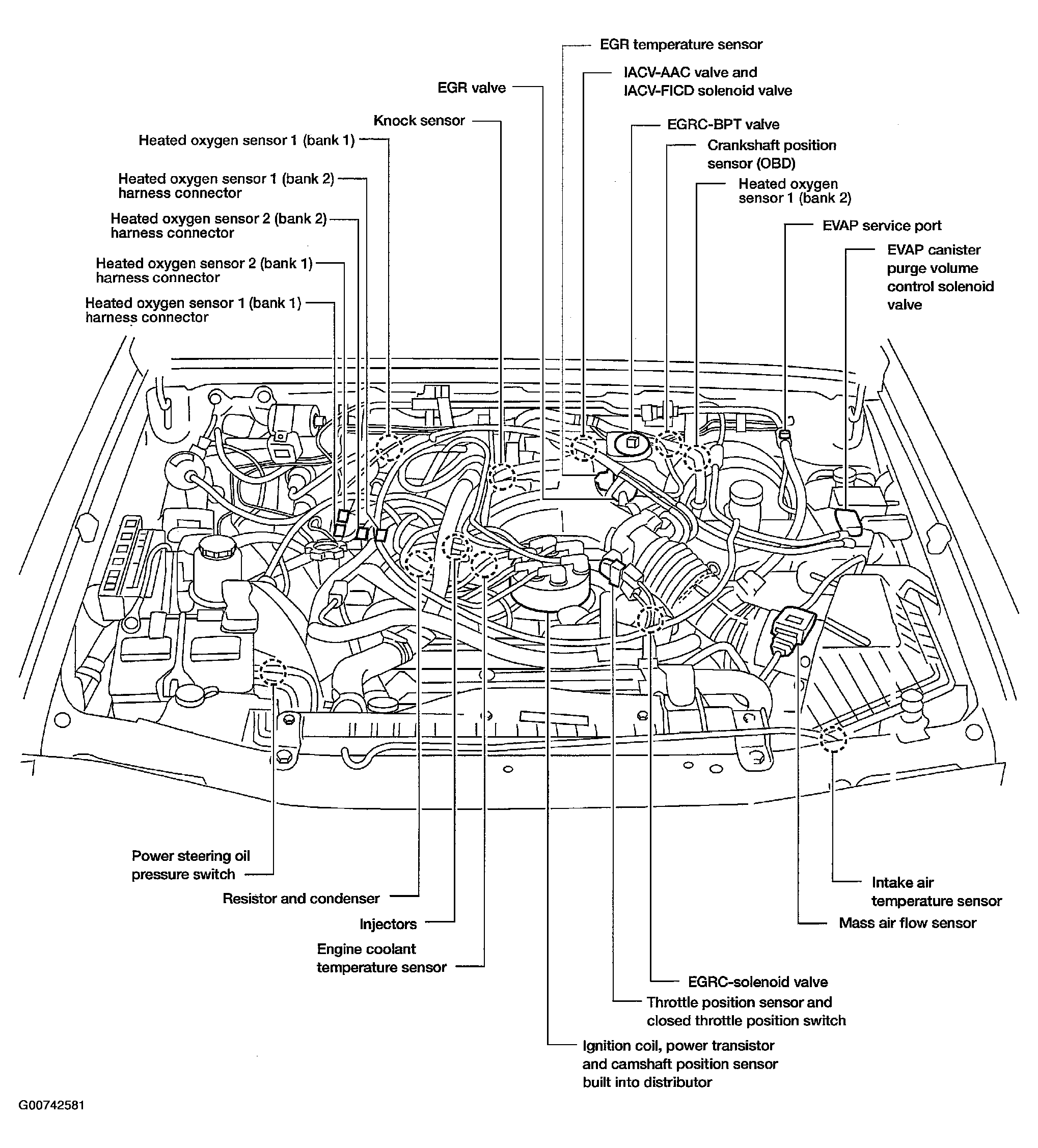

Fig 1: Locating Engine Control Components (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

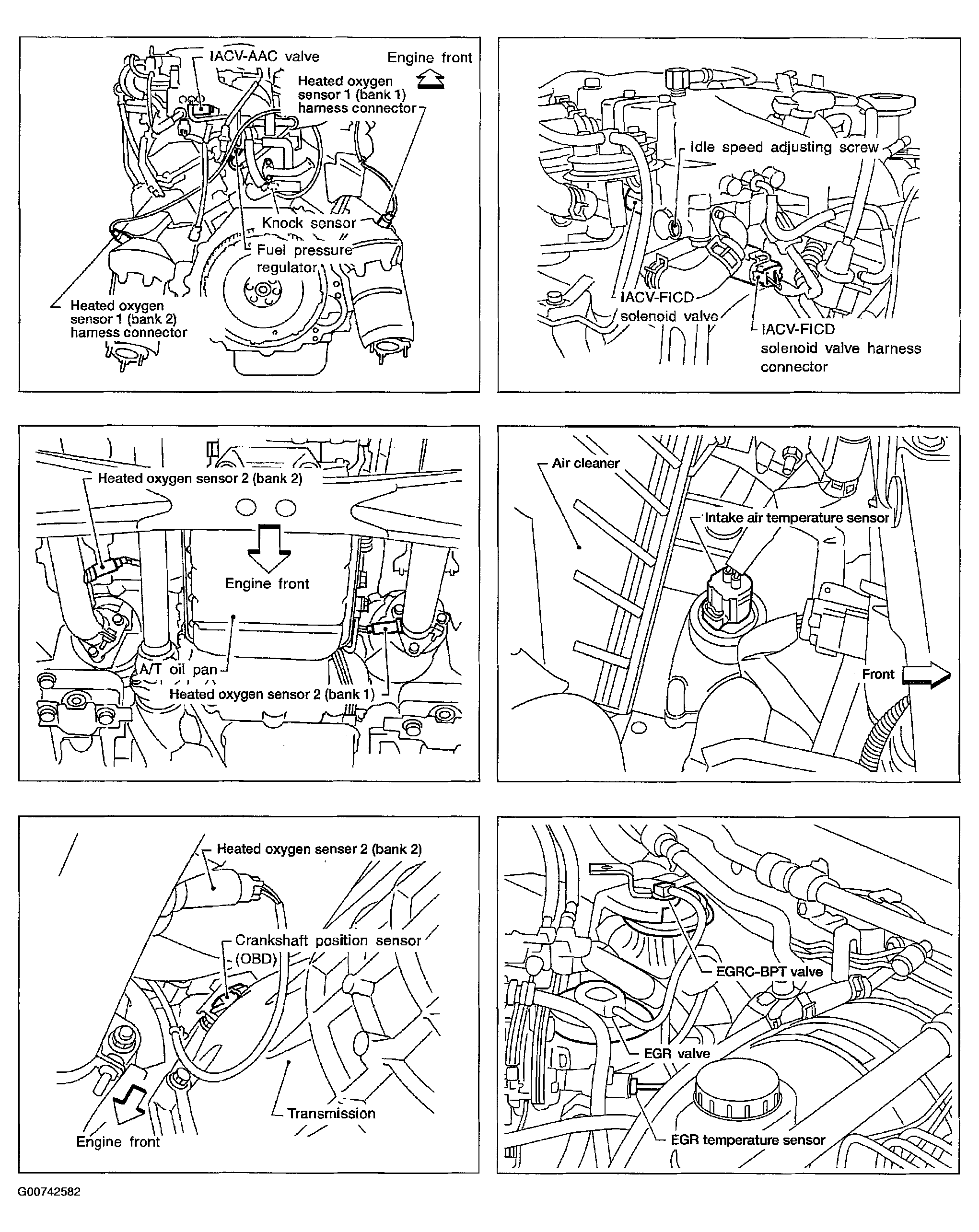

Fig 2: Locating Engine Control Components (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

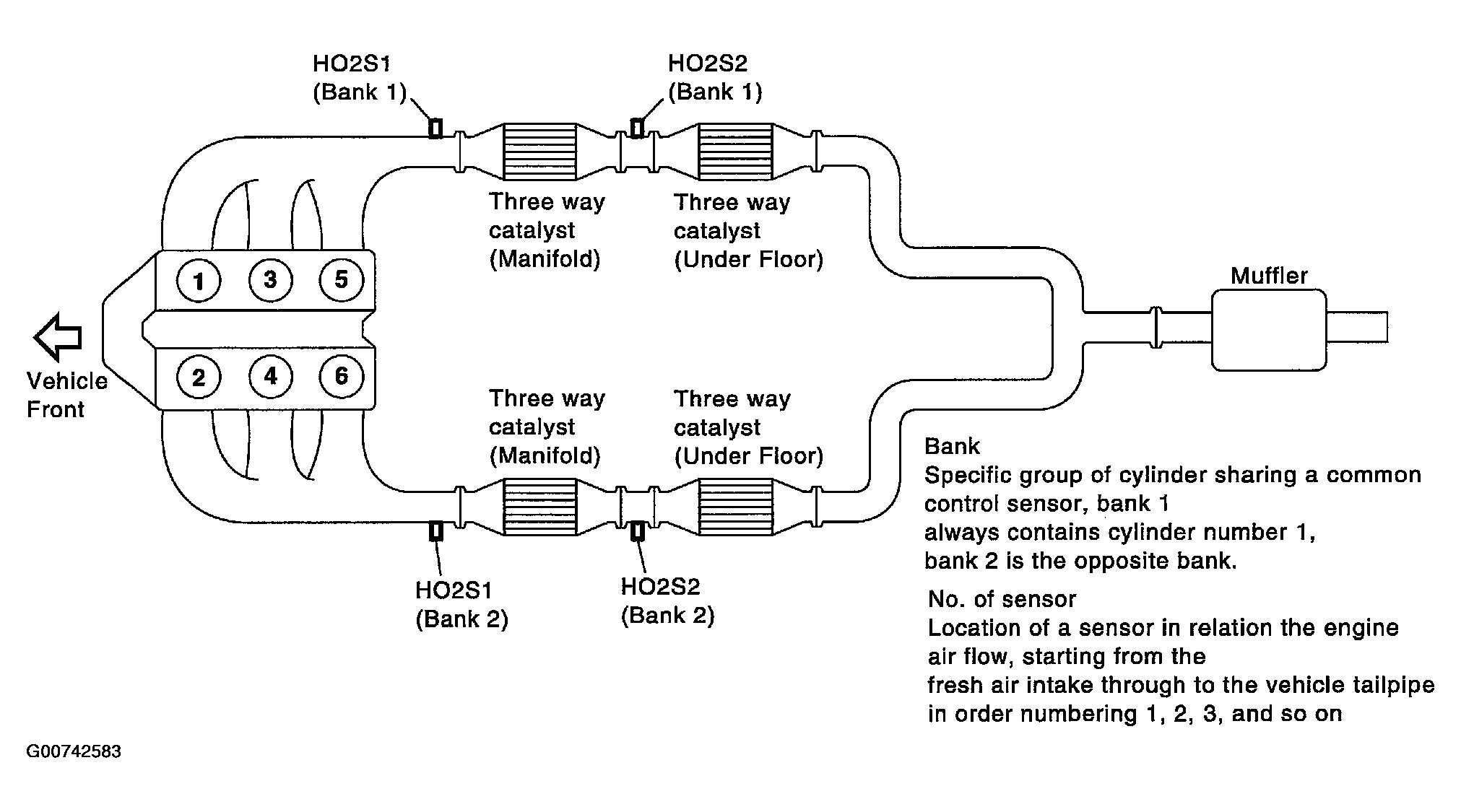

Fig 3: Locating Engine Control Components (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

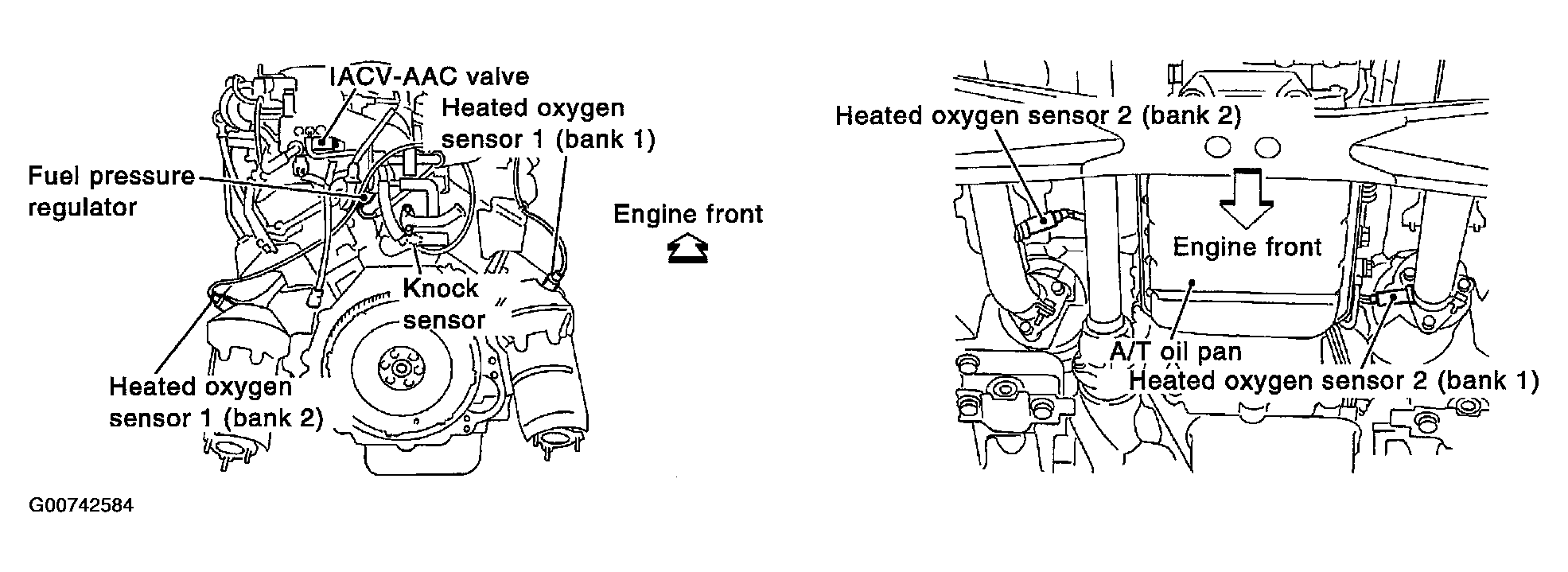

Fig 4: Locating Engine Control Components (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
