Case Components

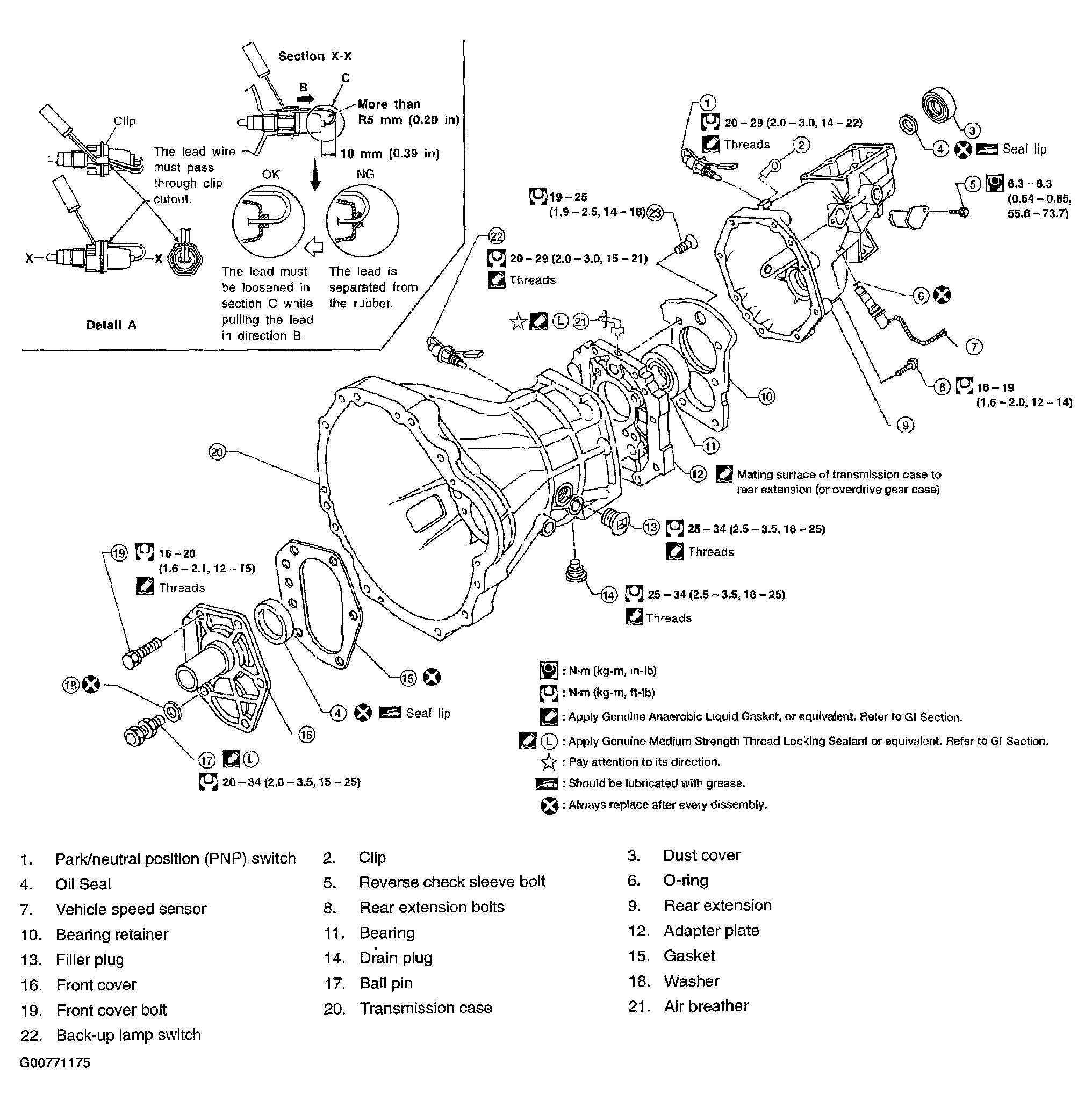

Fig 1: Transmission Case Replacement Components Including Torque Specs

G00771175

Courtesy of NISSAN MOTOR CO., U.S.A.
