Shift Control Components: Disassembly

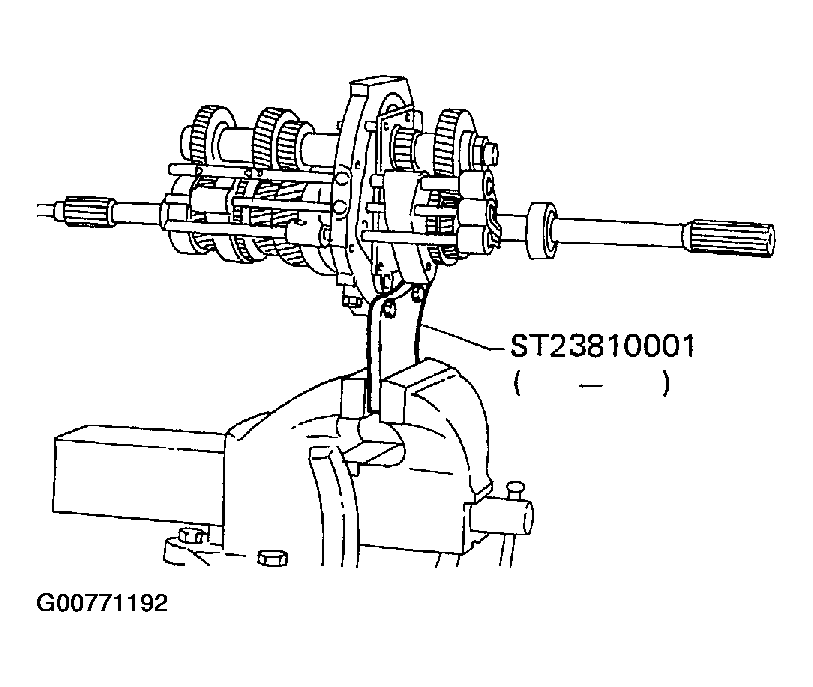

Set up Tool on adapter plate.
1. Tool number: ST23810001 ( - )
Remove striking rod from adapter plate.
Remove check ball plugs, check springs, and check balls.
NOTE: Mark locations of interlock balls to ensure proper installation.

Fig 1: Removing Check Ball Plugs, Check Springs, And Check Balls
Courtesy of NISSAN MOTOR CO., U.S.A.

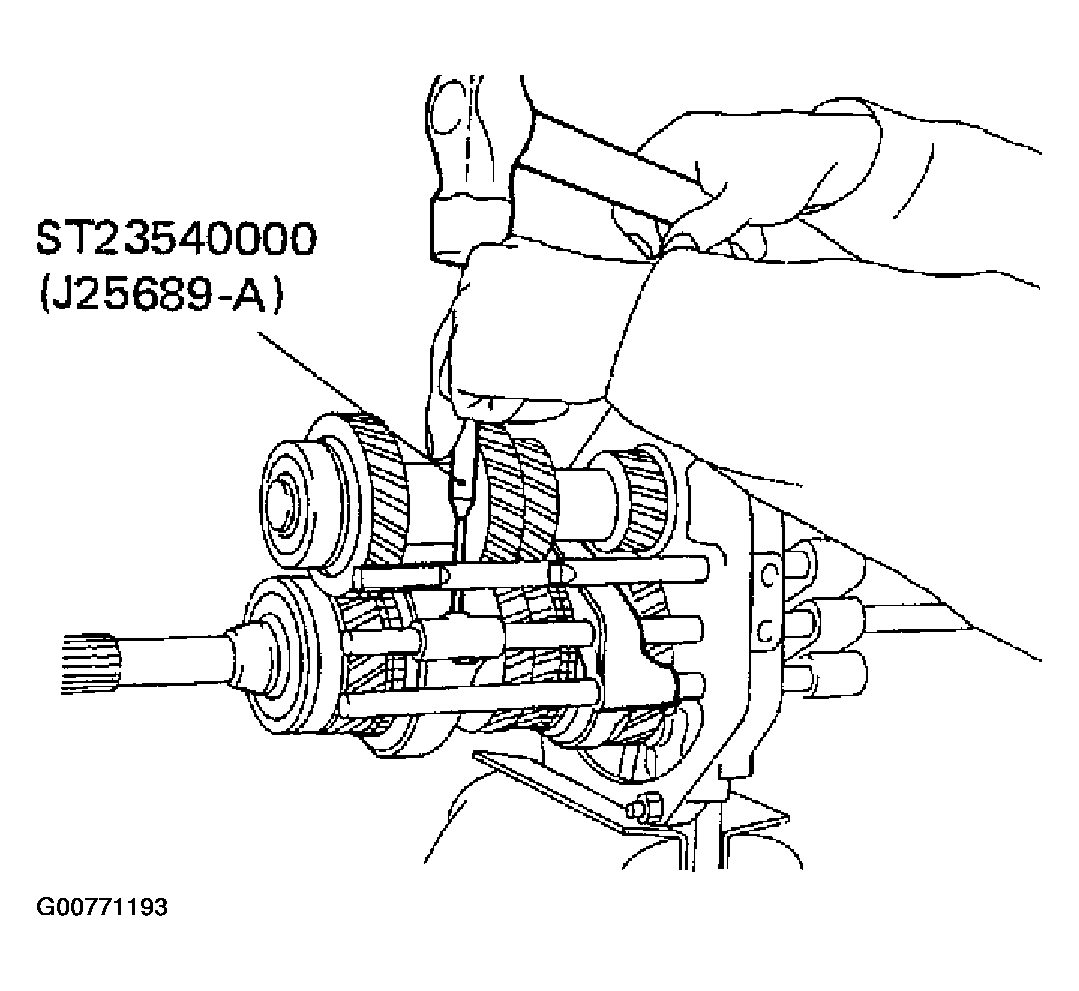

Drive out retaining pins. Then drive out fork rods and remove interlock balls.

Fig 2: Removing Retaining Pins
Courtesy of NISSAN MOTOR CO., U.S.A.
