Shift Control Components: Assembly

  1. Install fork rods, interlock plunger, interlock balls and check balls.

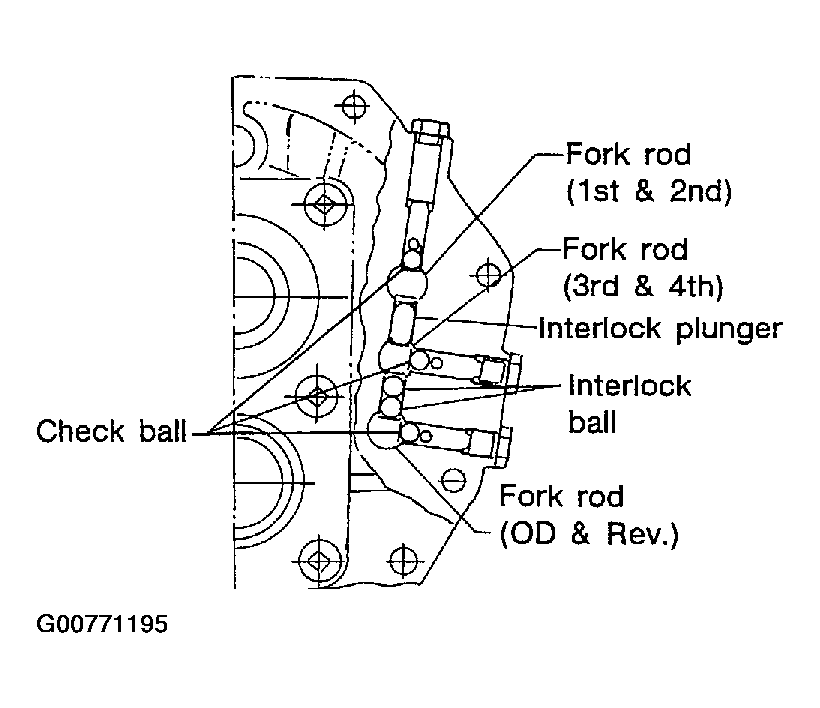

    Fig 1: Installing Fork Rods, Interlock Plunger, Interlock Balls And Check Balls
    G00771195Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install 1st and 2nd shift fork, then drive in retaining pin.

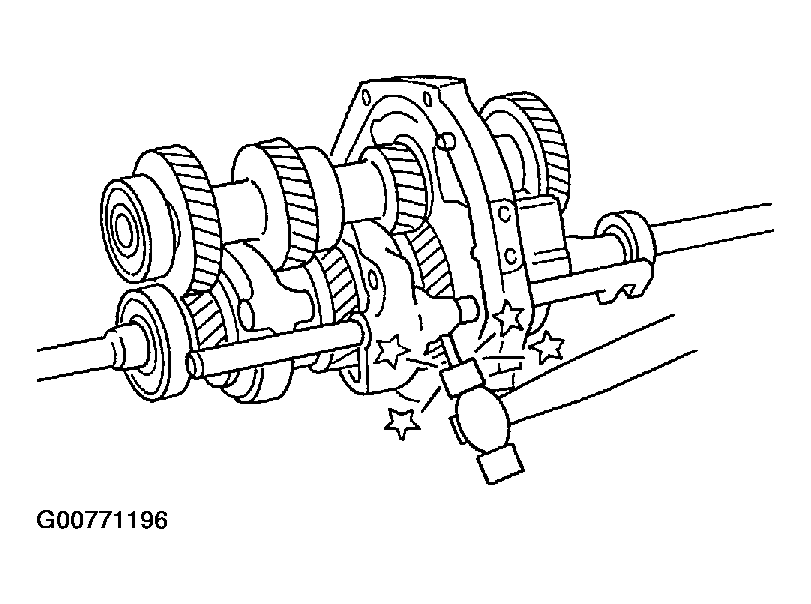

    Fig 2: Installing 1st And 2nd Shift Fork
    G00771196Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install 3rd and 4th shift fork, then drive in retaining pin.

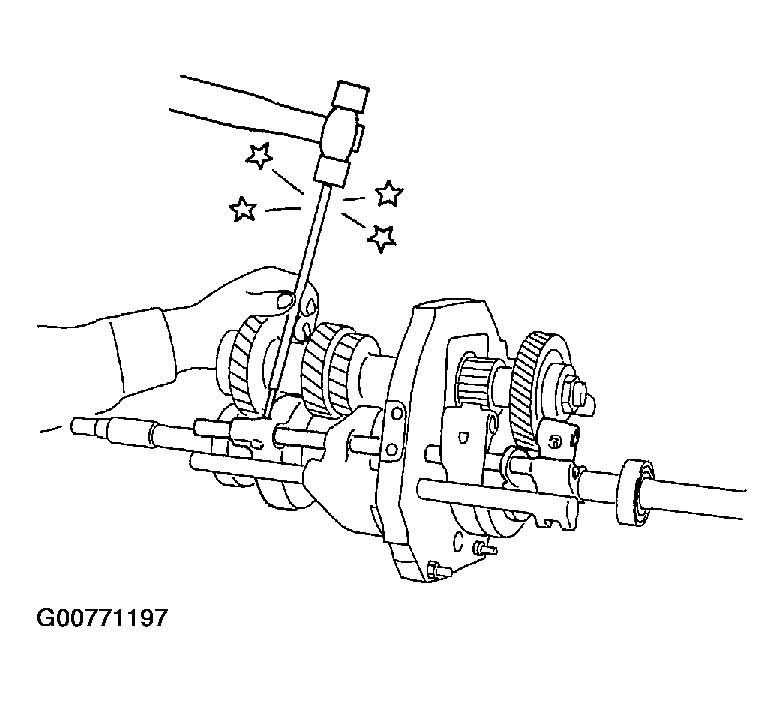

    Fig 3: Installing 3rd And 4th Shift Fork
    G00771197Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install overdrive and reverse shift fork, then drive in retaining pin.

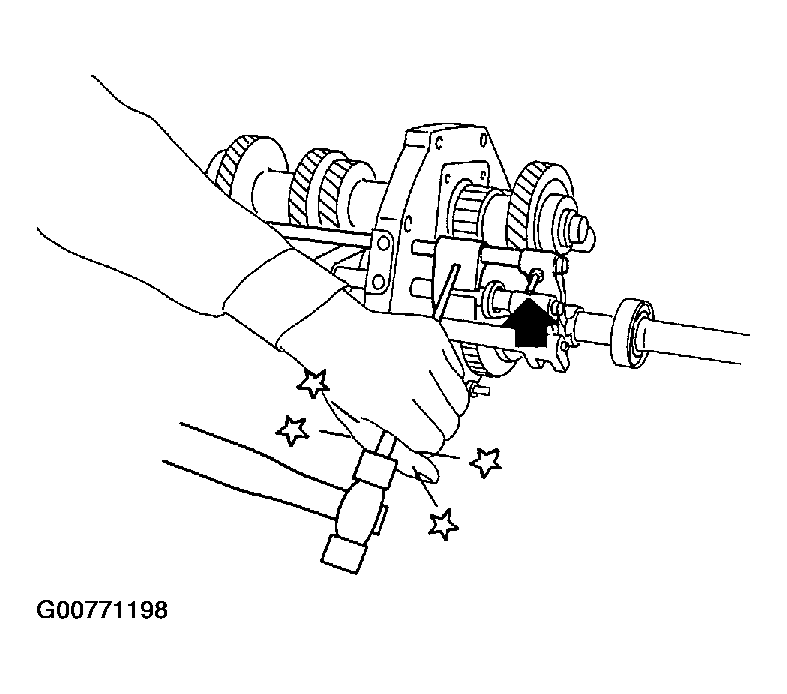

    Fig 4: Installing Overdrive And Reverse Shift Fork
    G00771198Courtesy of NISSAN MOTOR CO., U.S.A.
