Manual Transmission - FS5W71C
>>
Preparation
>>
Special Service Tools
Special Service Tools

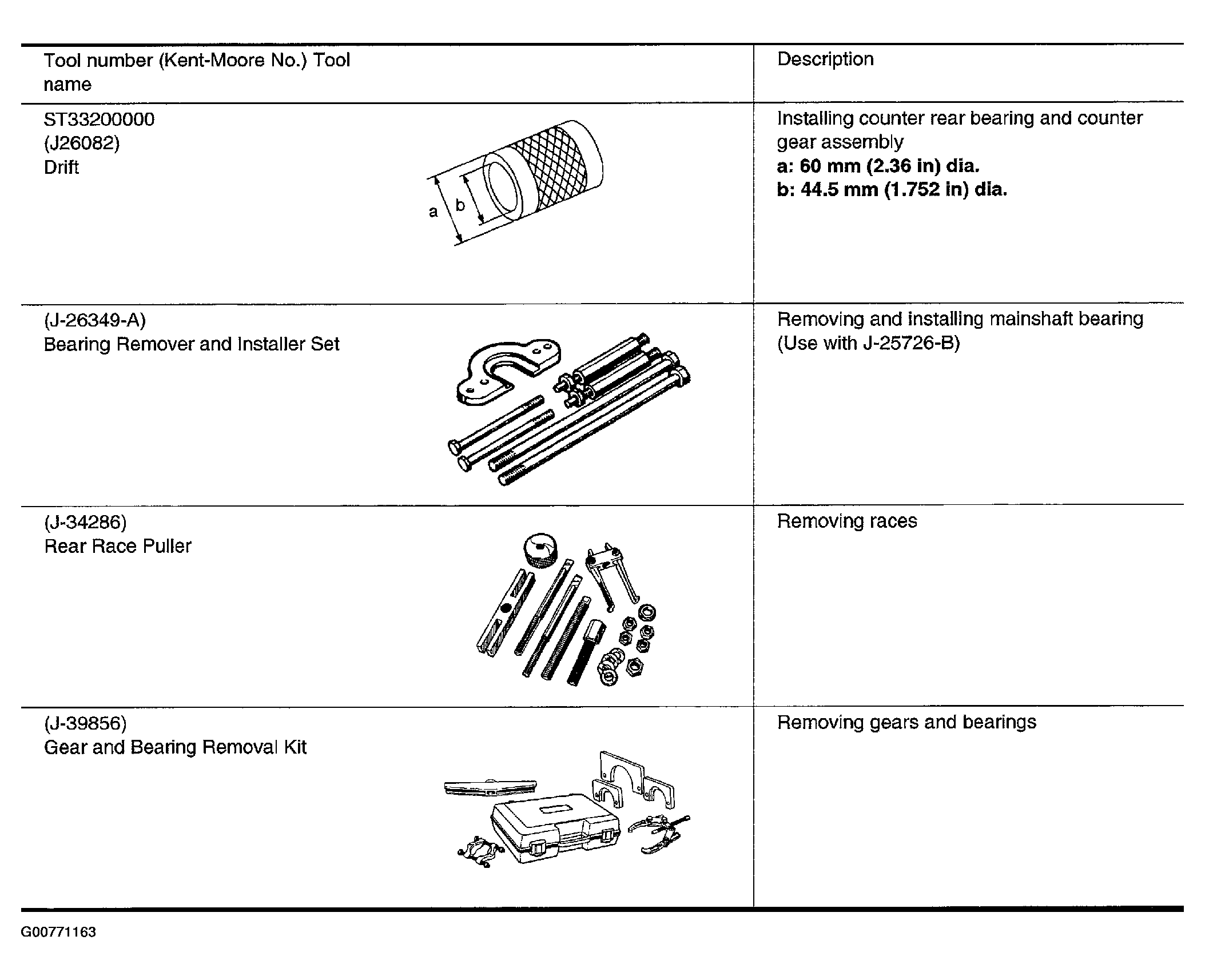

Fig 1: Identifying Special Service Tools (Step 1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

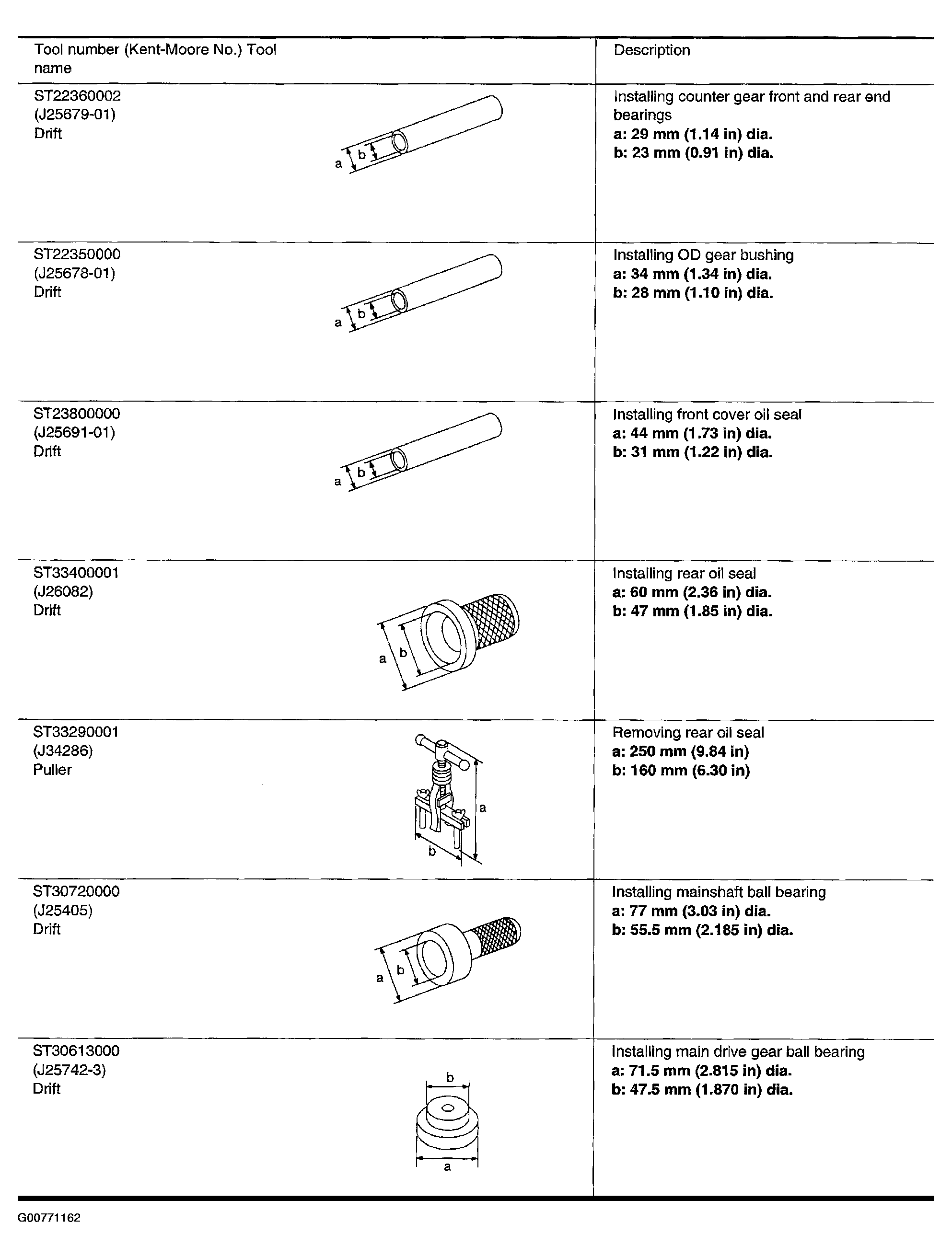

Fig 2: Identifying Special Service Tools (Step 2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

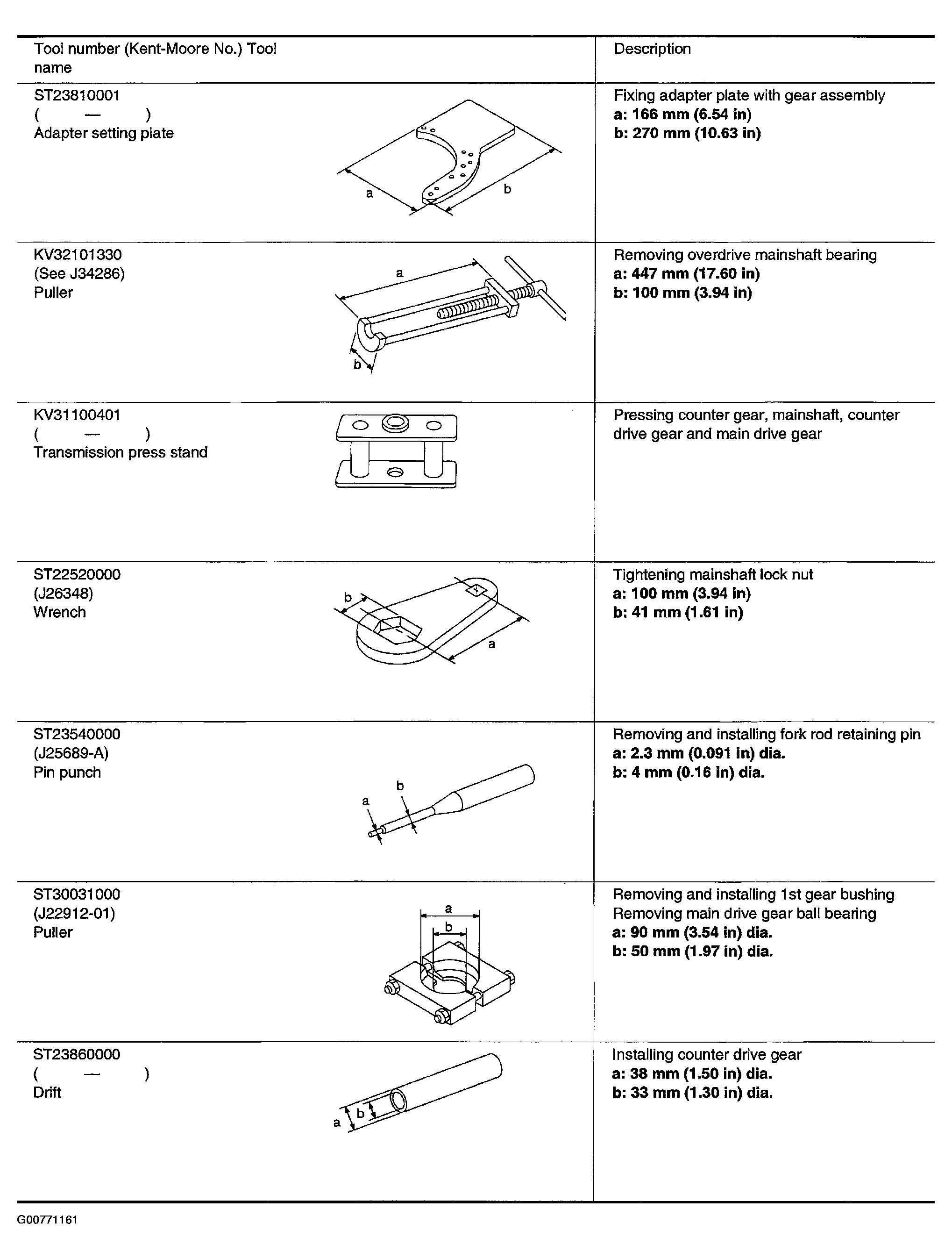

Fig 3: Identifying Special Service Tools (Step 3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
