Position Switch Check

Check continuity.

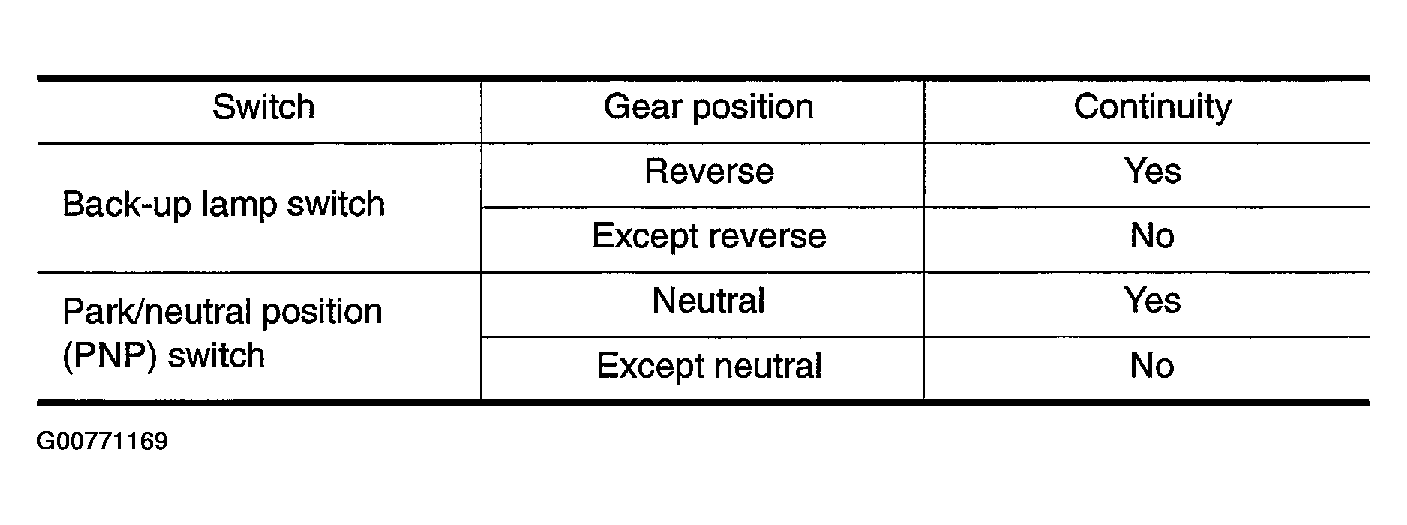

Fig 1: Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

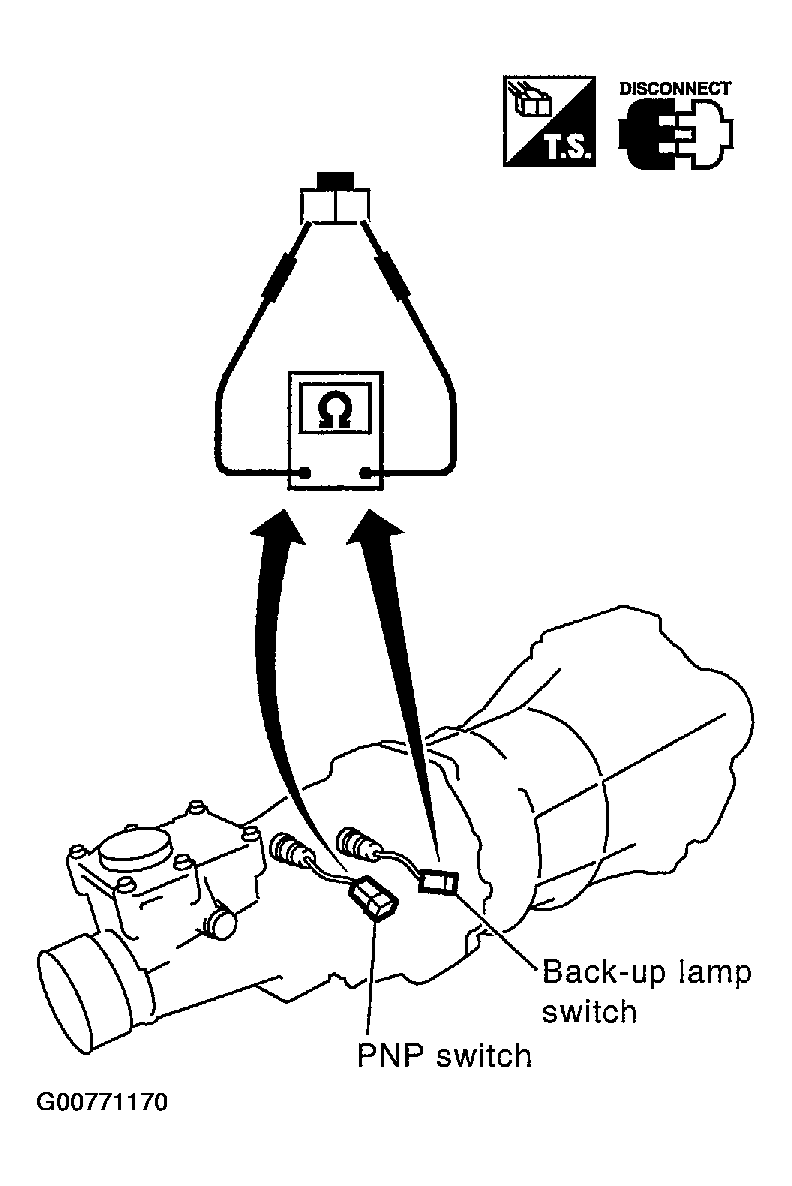

Fig 2: Checking Position Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
