Nissan-Datsun
>>
2004
>>
Frontier Base, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch
>>
Operating Cylinder
>>
Components
Operating Cylinder: Components

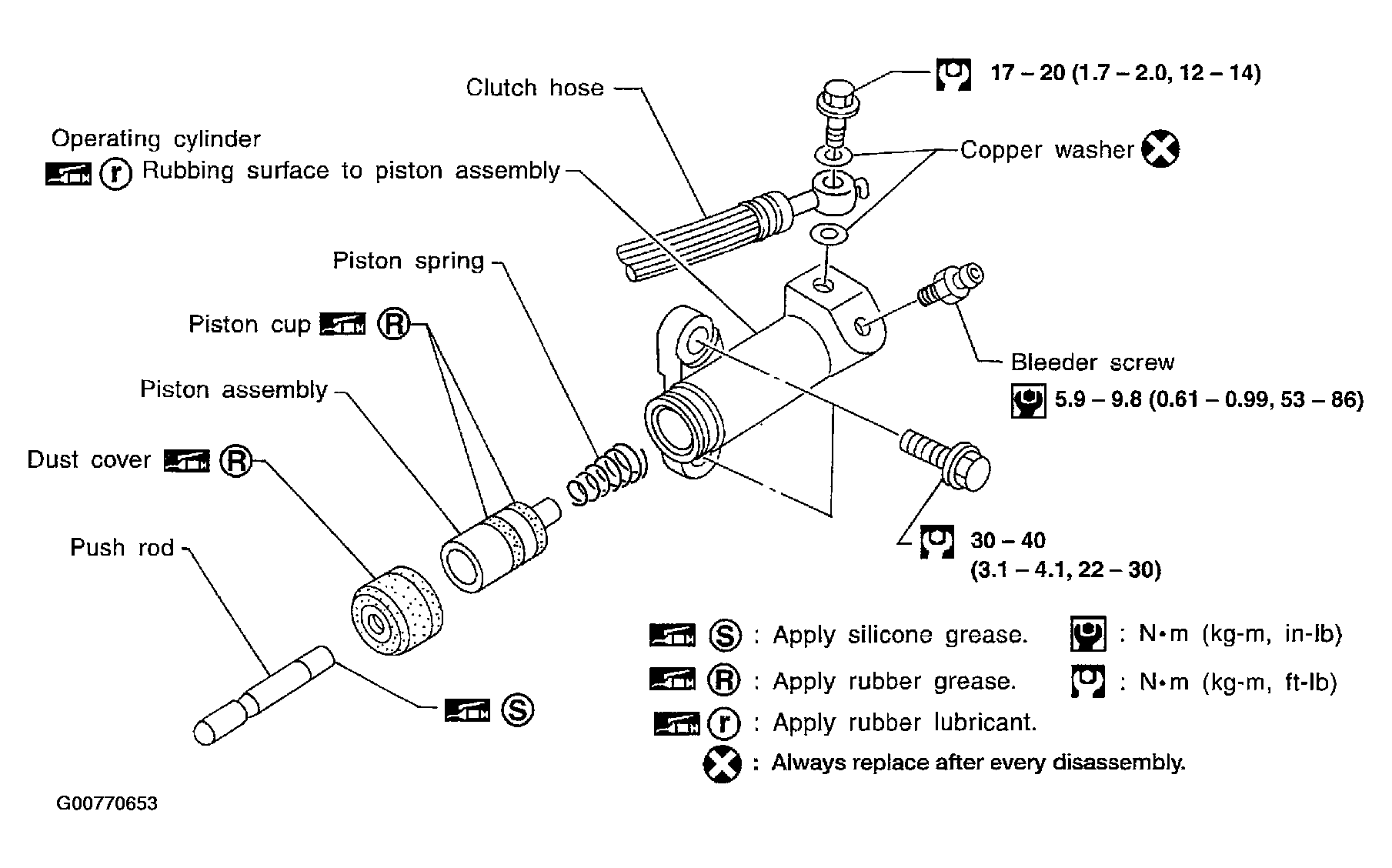

Fig 1: Exploded View Of Operating Cylinder Including Torque Specs
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
