Leaf Spring: Installation
- Apply soapsuds to rubber bushing.
- Install spring shackle and front pin, and finger tighten the nuts.
- Install spring pad and nuts under rear spring or axle case.
- Tighten U-bolt mounting nuts diagonally.

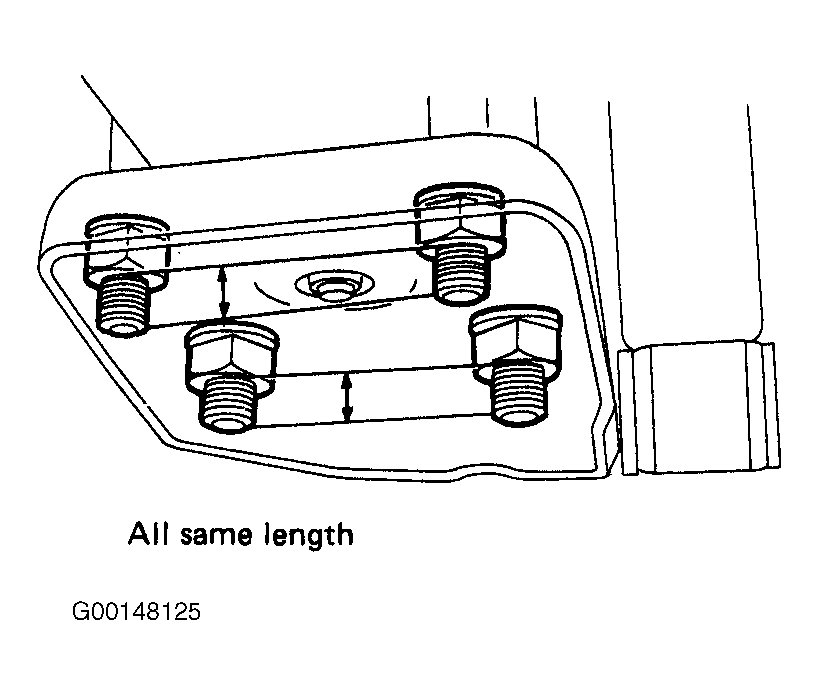

- Tighten U-bolts so that the length of all U-bolts under spring pad are the same. See Fig 1
.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Install shock absorber, and finger tighten the nuts.
- Place vehicle on ground. Bounce the vehicle to stabilize suspension.

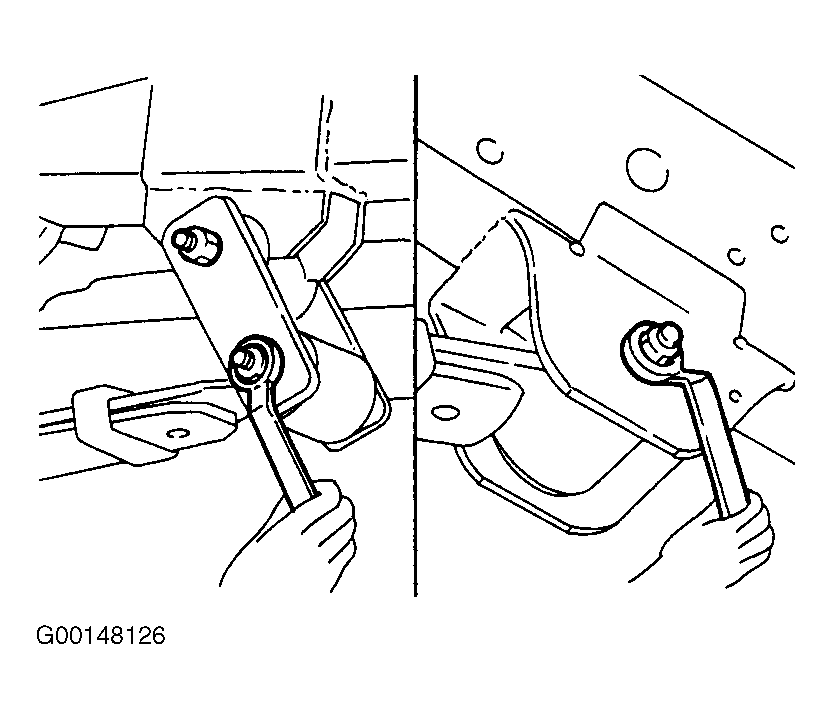

- Final tighten spring shackle nuts, front pin nuts and shock absorber nuts. See Fig 2
. See TORQUE SPECIFICATIONS
.
Courtesy of NISSAN MOTOR CO., U.S.A.
