Rear Suspension System: Description

This vehicle is equipped with a leaf spring suspension.

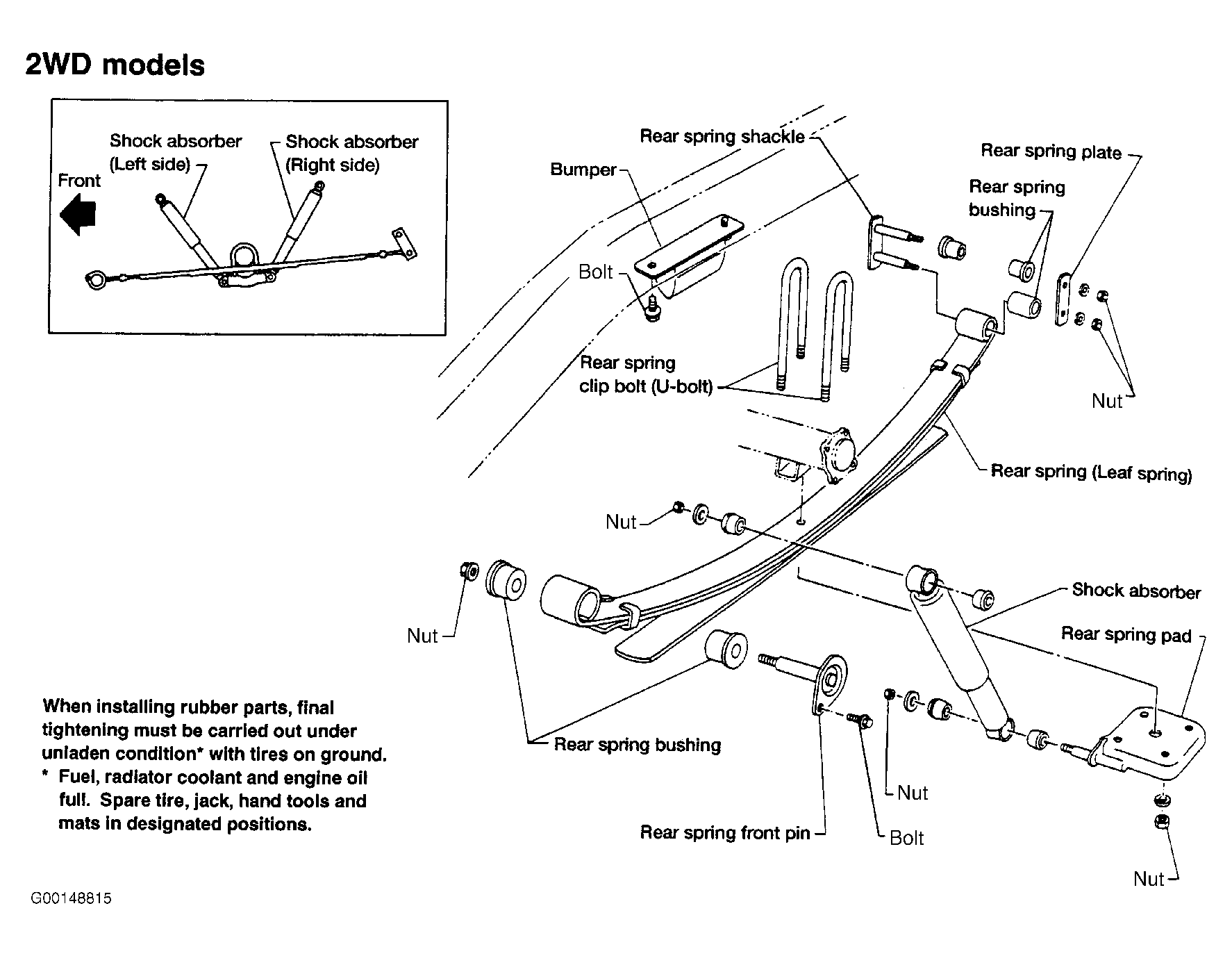

Fig 1: Exploded View Of 2WD Leaf Spring Suspension

Courtesy of NISSAN MOTOR CO., U.S.A.

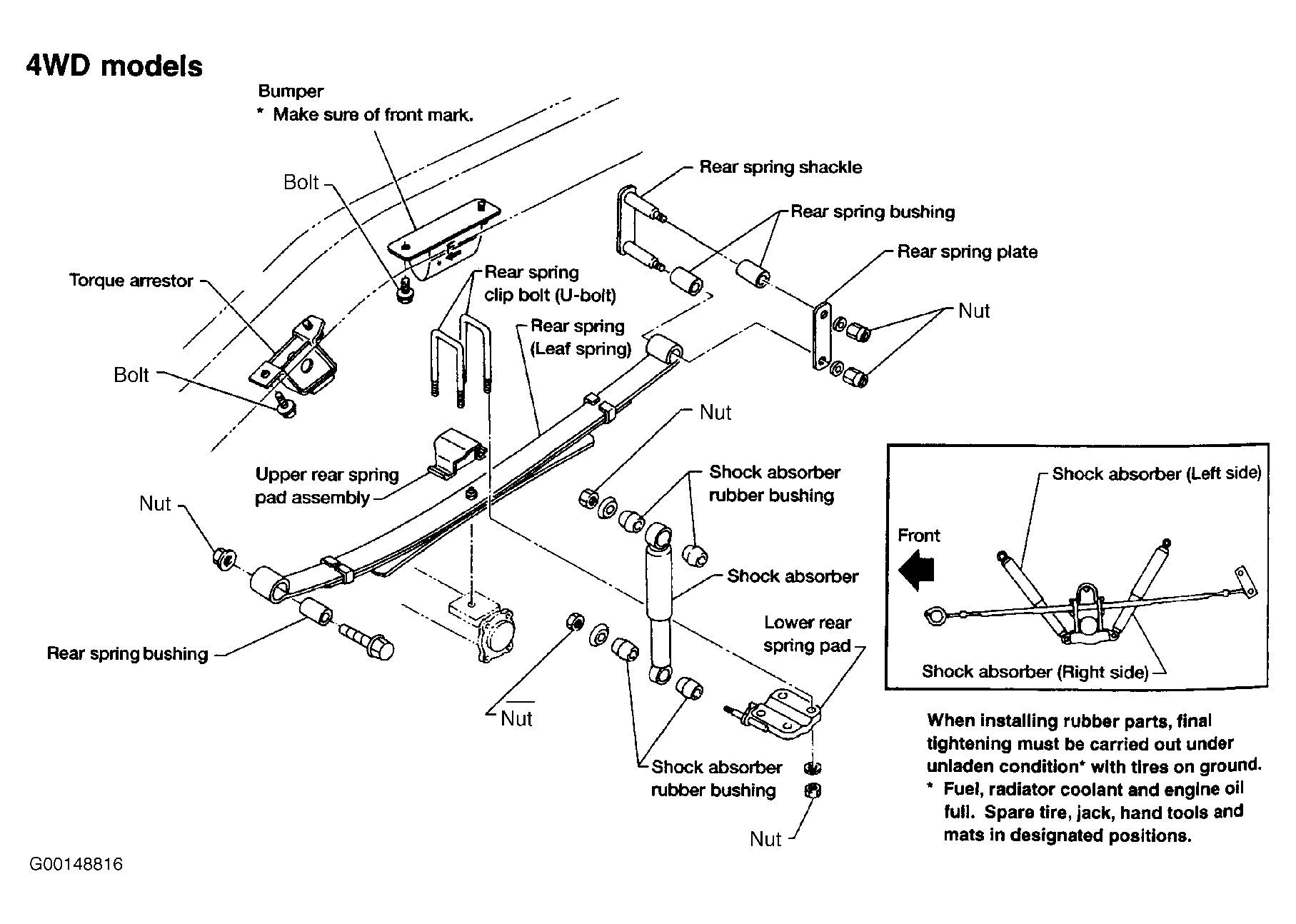

Fig 2: Exploded View Of 4WD Leaf Spring Suspension

Courtesy of NISSAN MOTOR CO., U.S.A.
