Service Data And Specifications (SDS)
>>
Steering Linkage
Steering Linkage

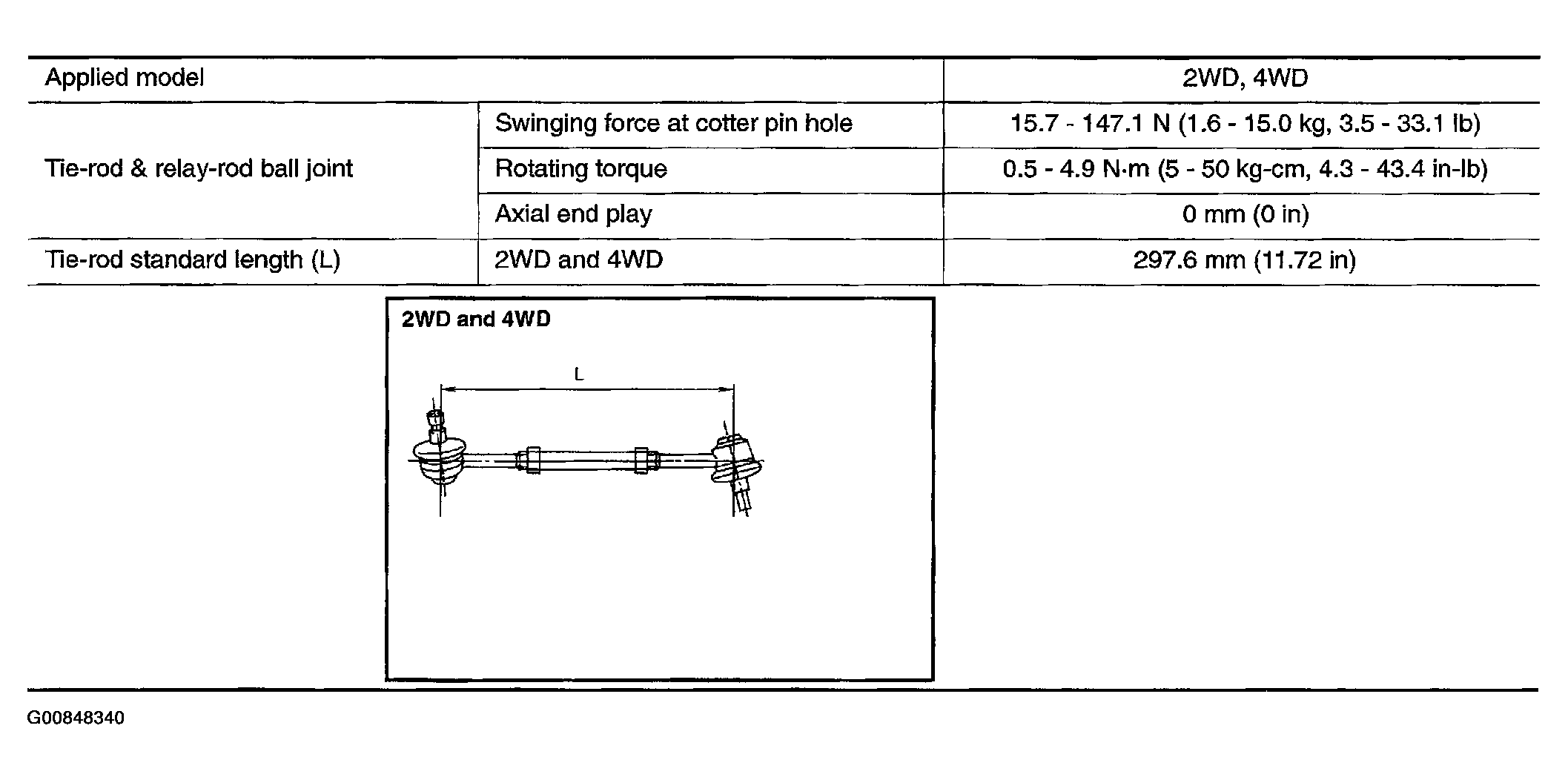

Fig 1: Steering Linkage Specifications Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Steering Linkage Specifications Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
