Checking Fluid Leakage

Check lines for improper attachment, leaks, cracks, damage, chafing and deterioration.

1. Run engine between idle speed and 1, 000 rpm.
2. Bring power steering fluid up to adequate operating temperature. [Make sure temperature of fluid is approximately 60 to 80°C (140 to 176°F).]
3. Turn steering wheel right-to-left several times.
4. Hold steering wheel at each "lock" position for 5 seconds and carefully

   check for fluid leakage.

   CAUTION: Do not hold steering wheel at lock position for more than 15 seconds.

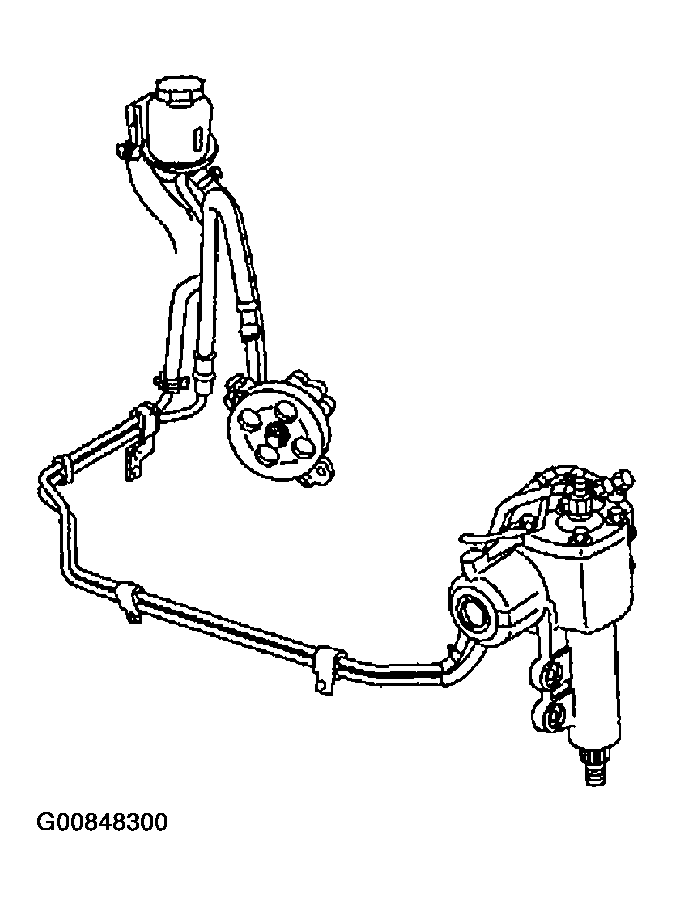

   Fig 1: Checking Lines For Fluid Leakage

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. If fluid leakage from any line is noticed, loosen flare nut and then retighten.
   CAUTION: Do not overtighten connector as this can damage O-ring, washer and connector.
6. If fluid leakage from power steering pump is noticed, check power steering oil pump. Refer to PRE-DISASSEMBLY INSPECTION .
7. If fluid leakage from power steering gear is noticed, check power steering gear. Refer to INSPECTION AND ADJUSTMENT .
