Bleeding Hydraulic System

1. Raise front end of vehicle until wheels are clear of the ground.
2. Add fluid to reservoir tank to specified level. Quickly turn steering wheel fully to right and left and lightly touch steering stoppers.

   Repeat steering wheel operation until fluid level no longer decreases.

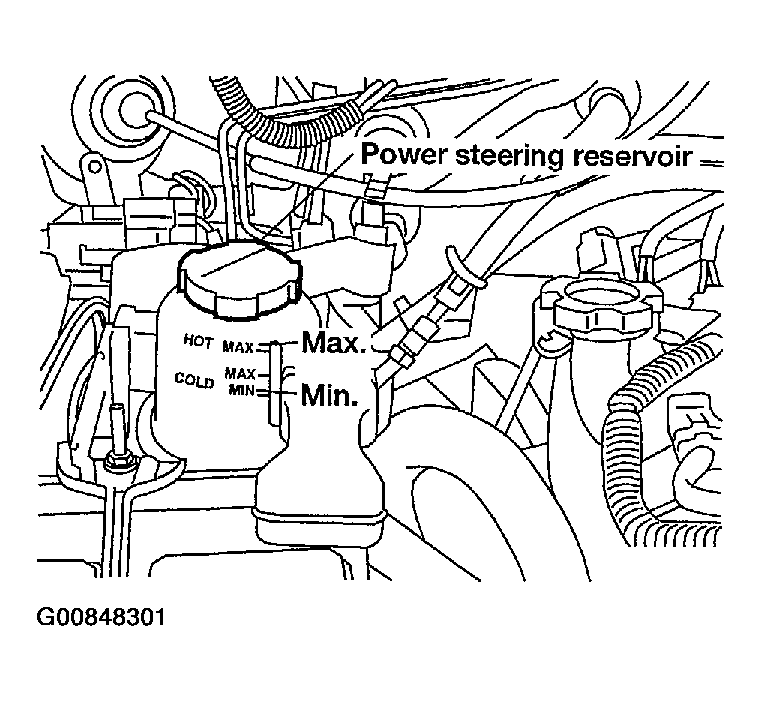

   Fig 1: Identifying Fluid Level

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Start engine.

   Repeat step  2 above.

• Incomplete air bleeding will cause the following to occur:

• Air bubbles in reservoir tank
• Clicking noise in power steering pump
• Excessive buzzing in power steering pump

When this happens, bleed air again.

Fluid noise may occur in the valve or power steering pump. This is common when the vehicle is stationary or while turning the steering wheel slowly. This does not affect the performance or durability of the system.
