Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal, noting the following:
1. Apply sealant to mating surface to transmission. (M/T model only)
  - Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

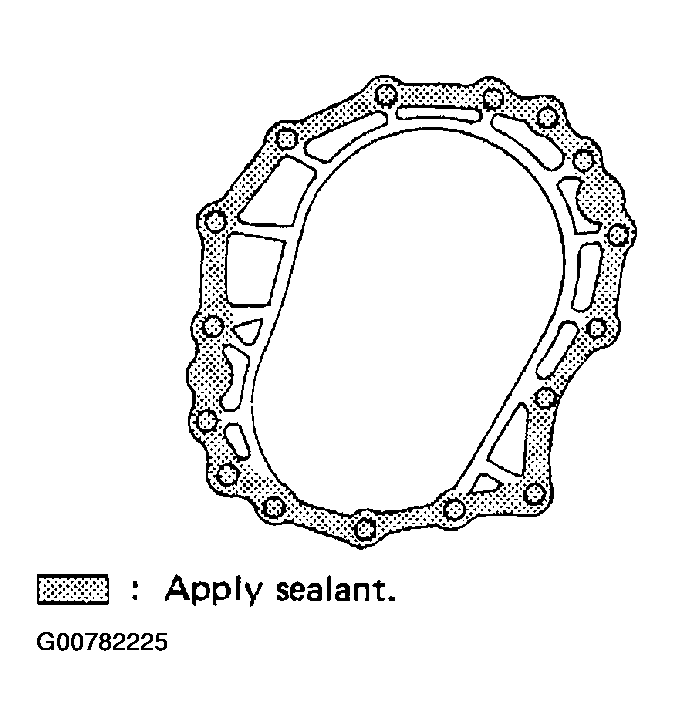

  Fig 1: Applying Sealant To Mating Surface To Transmission
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Tighten bolts securing transfer.
  M/T MODEL

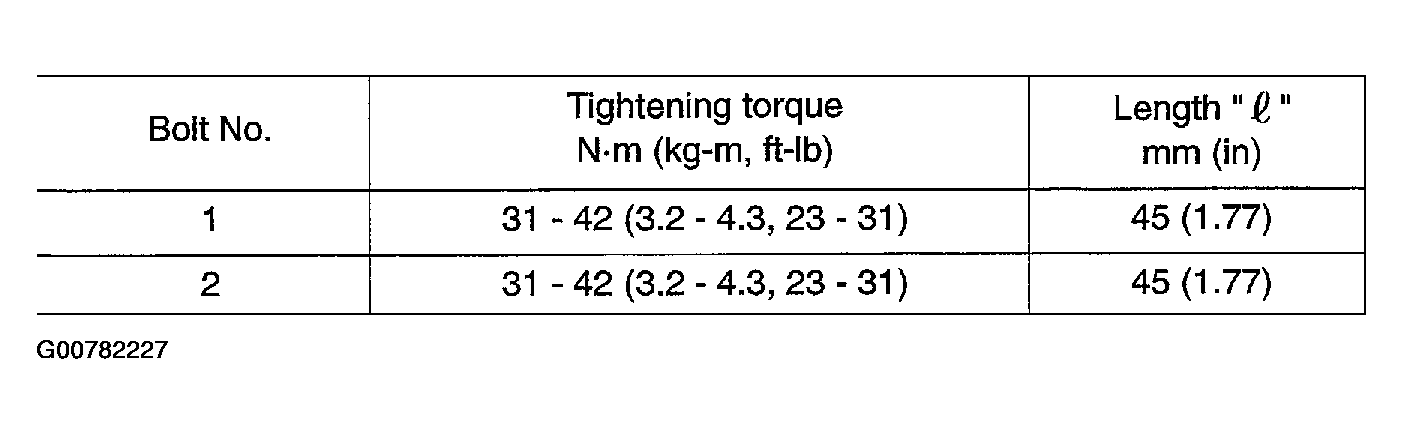

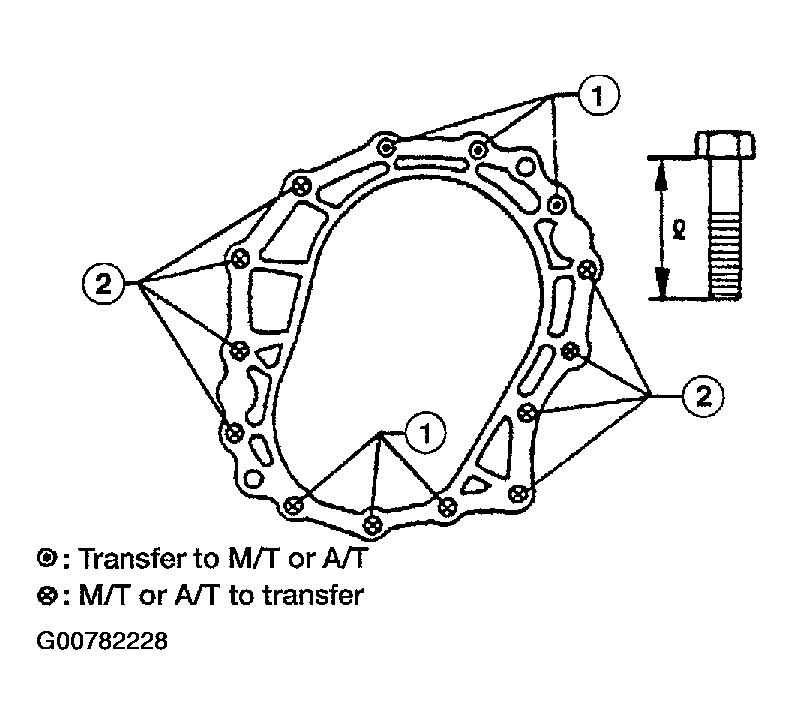

  Fig 2: M/T MODEL Torque Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

  A/T MODEL

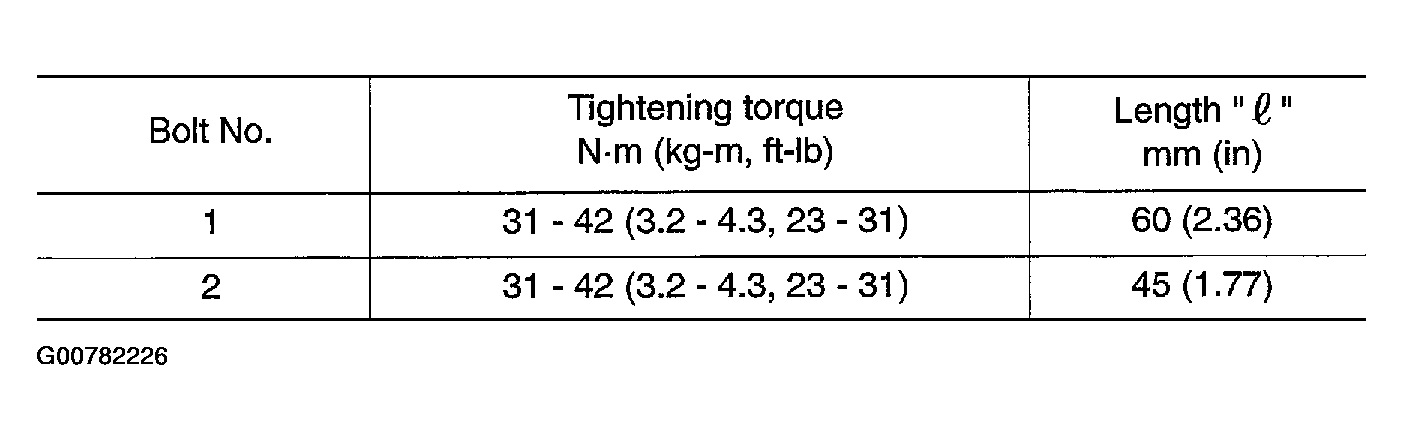

  Fig 3: A/T MODEL Torque Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Adjusting Torsion Bars For Correct Vehicle Height
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Adjust the torsion bars for the correct vehicle height. Refer to INSTALLATION .
4. When installing transfer control lever, refer to TRANSFER GEAR CONTROL .
