ECM Inspection Table

WARNING: This page is about a different variant/trim than selected.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

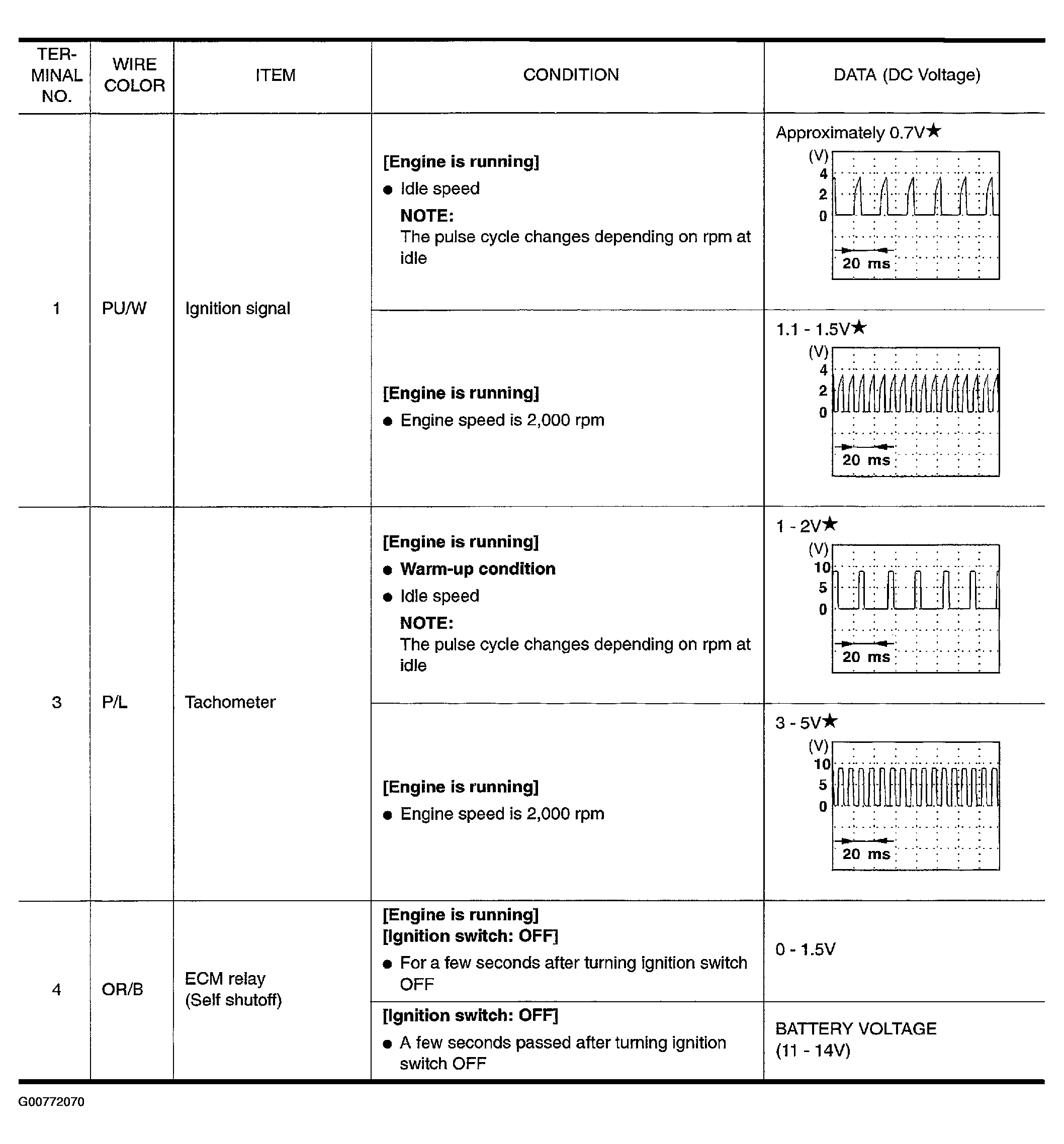

Fig 1: Terminal Specification Chart (1 Of 8)

G00772070

Courtesy of NISSAN MOTOR CO., U.S.A.

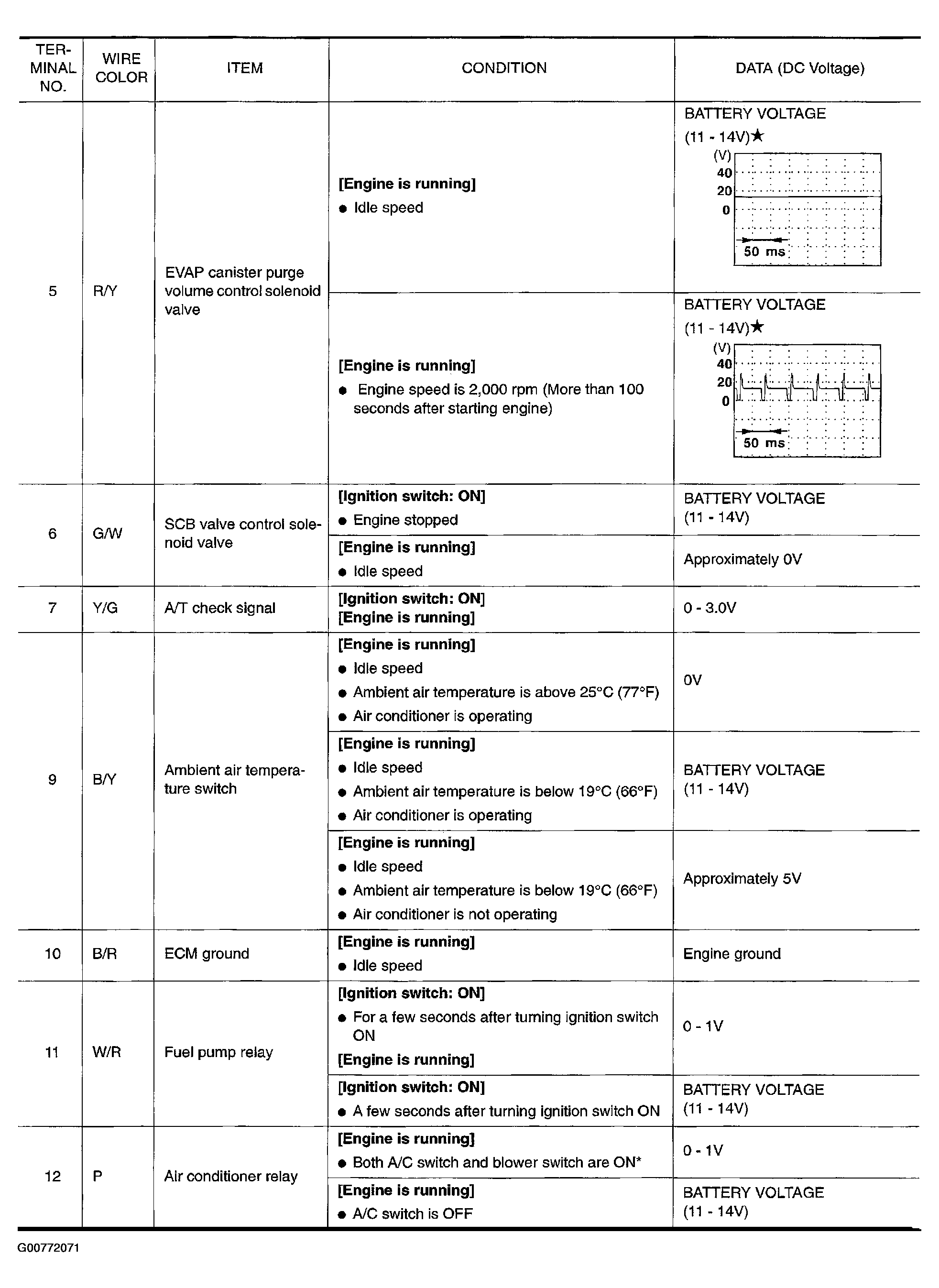

Fig 2: Terminal Specification Chart (2 Of 8)

G00772071

Courtesy of NISSAN MOTOR CO., U.S.A.

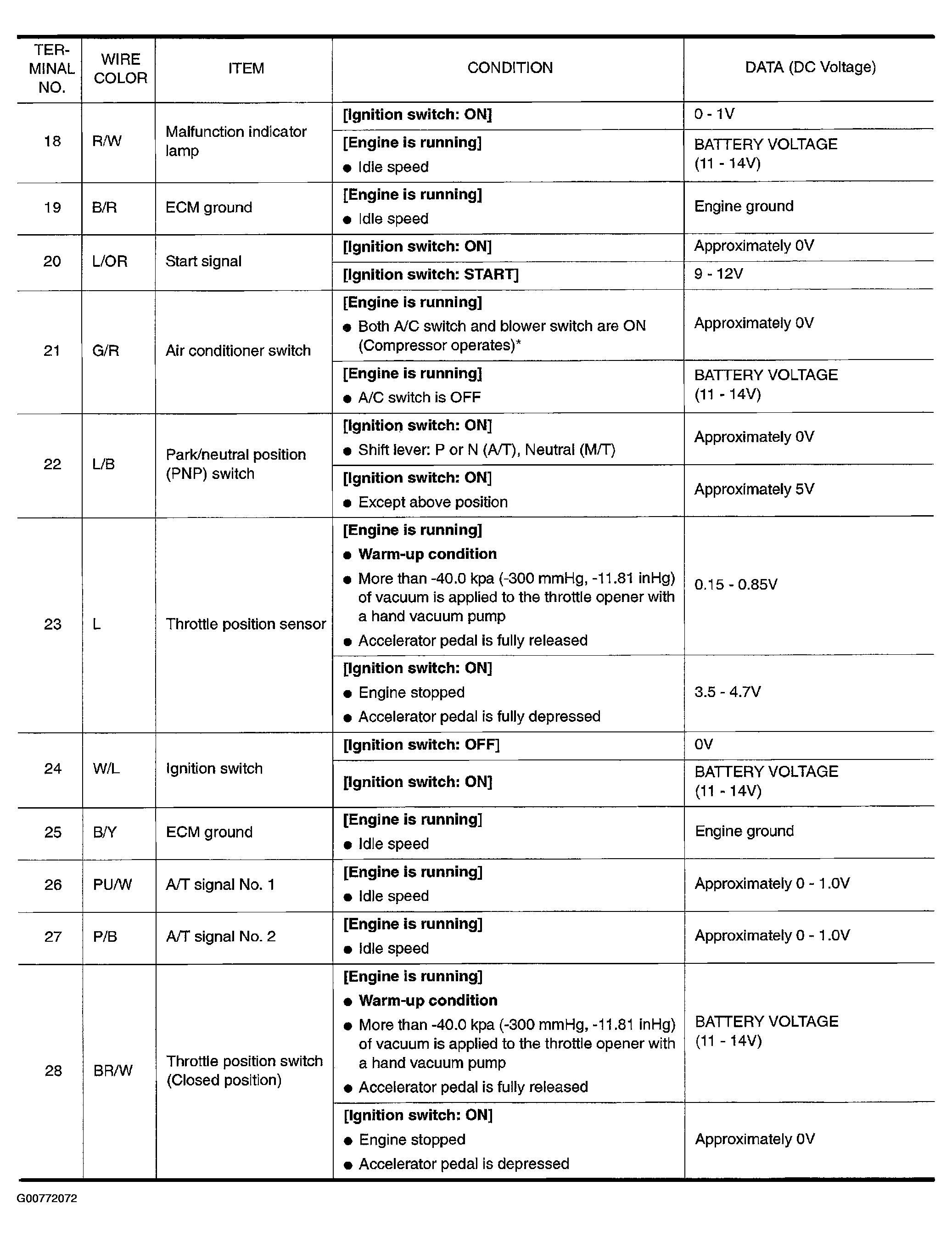

Fig 3: Terminal Specification Chart (3 Of 8)

G00772072

Courtesy of NISSAN MOTOR CO., U.S.A.

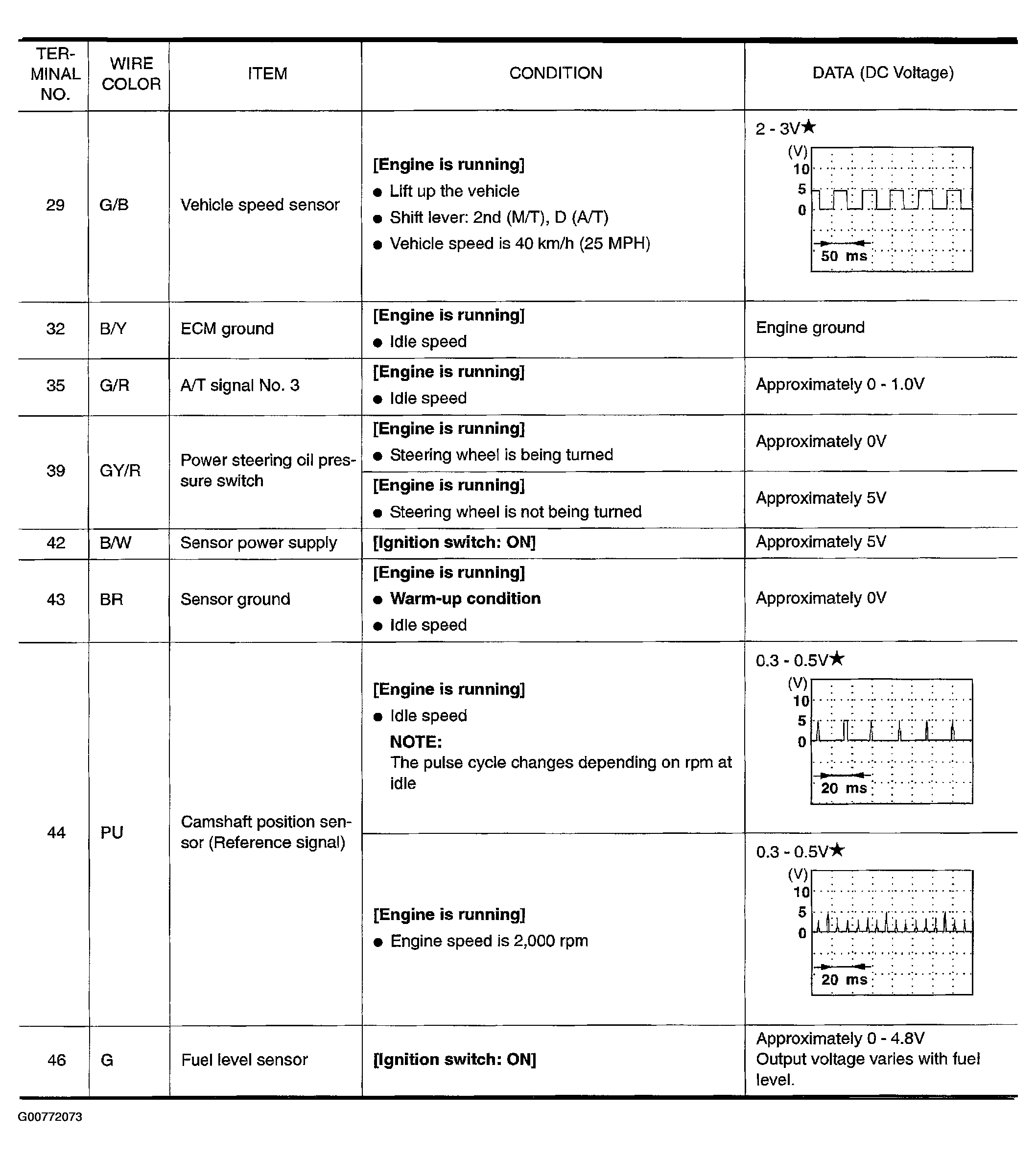

Fig 4: Terminal Specification Chart (4 Of 8)

G00772073

Courtesy of NISSAN MOTOR CO., U.S.A.

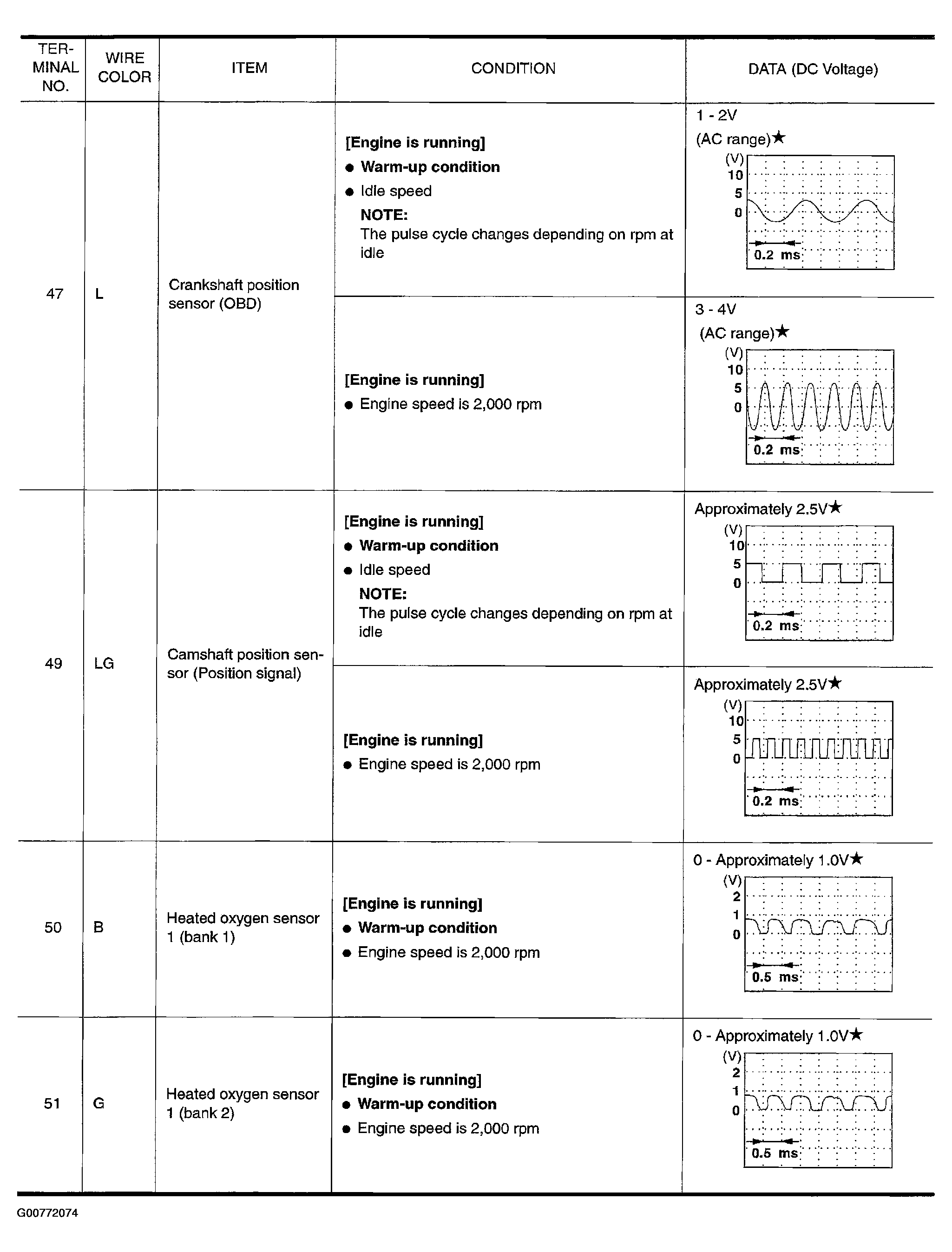

Fig 5: Terminal Specification Chart (5 Of 8)

G00772074

Courtesy of NISSAN MOTOR CO., U.S.A.

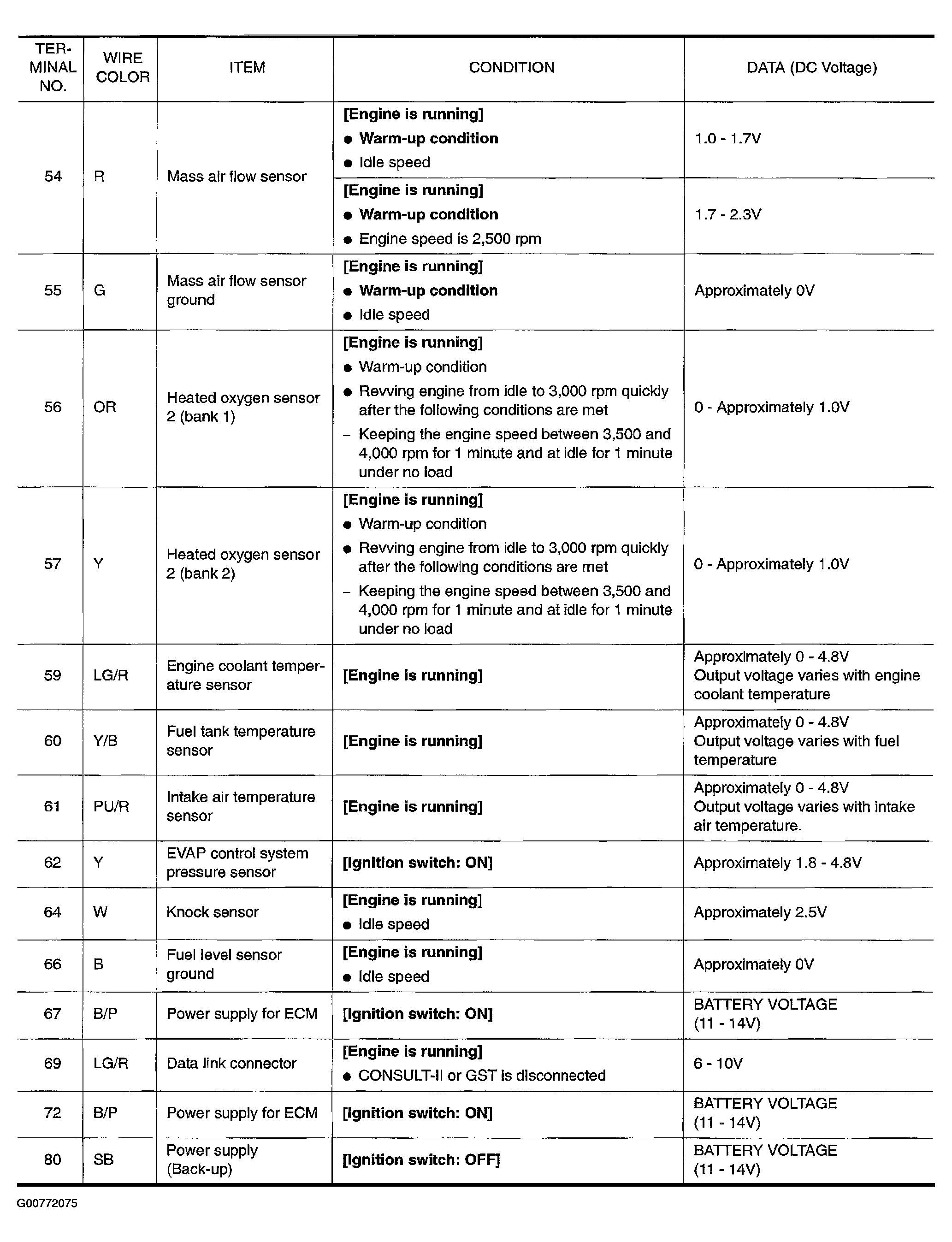

Fig 6: Terminal Specification Chart (6 Of 8)

G00772075

Courtesy of NISSAN MOTOR CO., U.S.A.

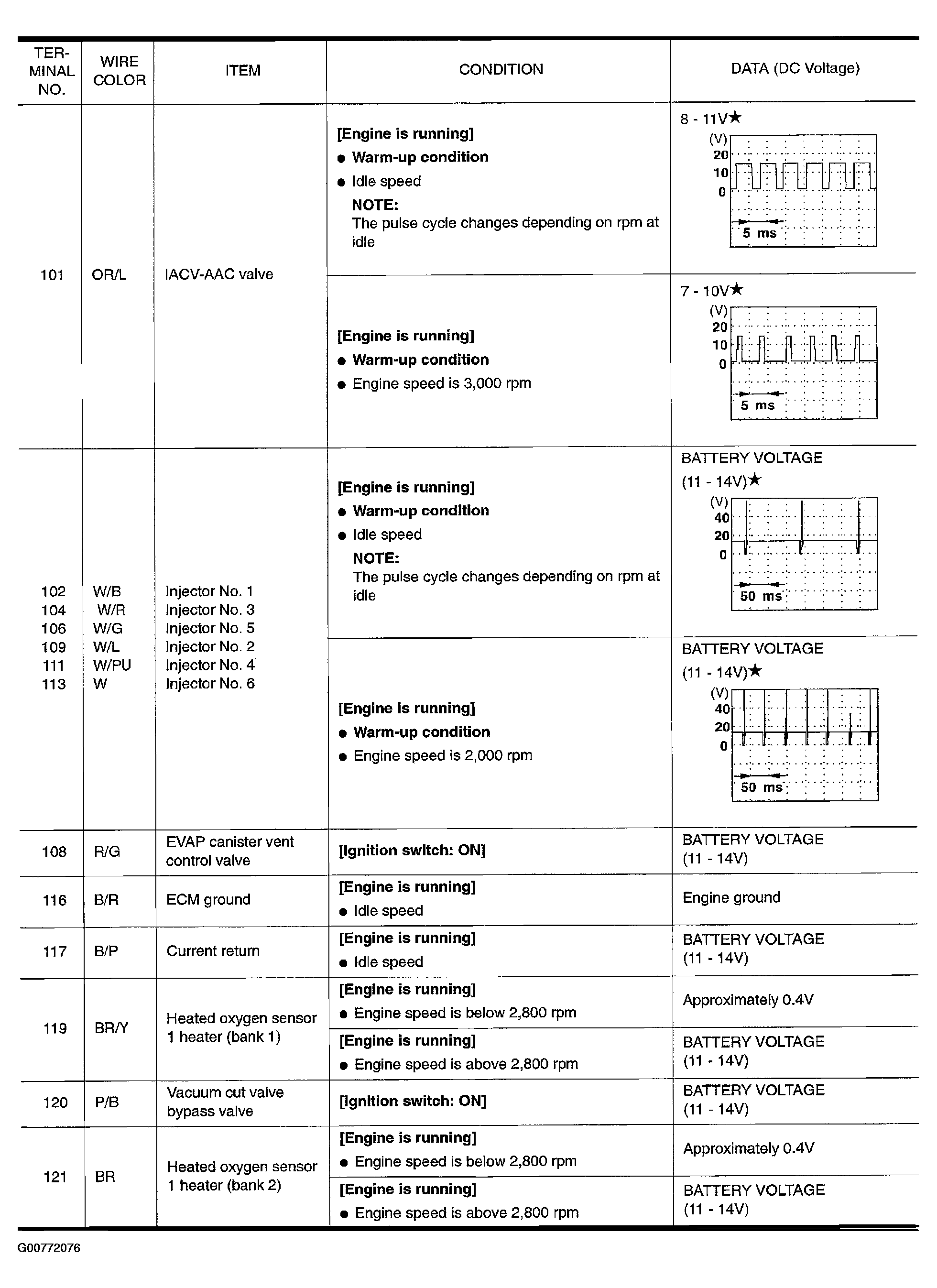

Fig 7: Terminal Specification Chart (7 Of 8)

G00772076

Courtesy of NISSAN MOTOR CO., U.S.A.

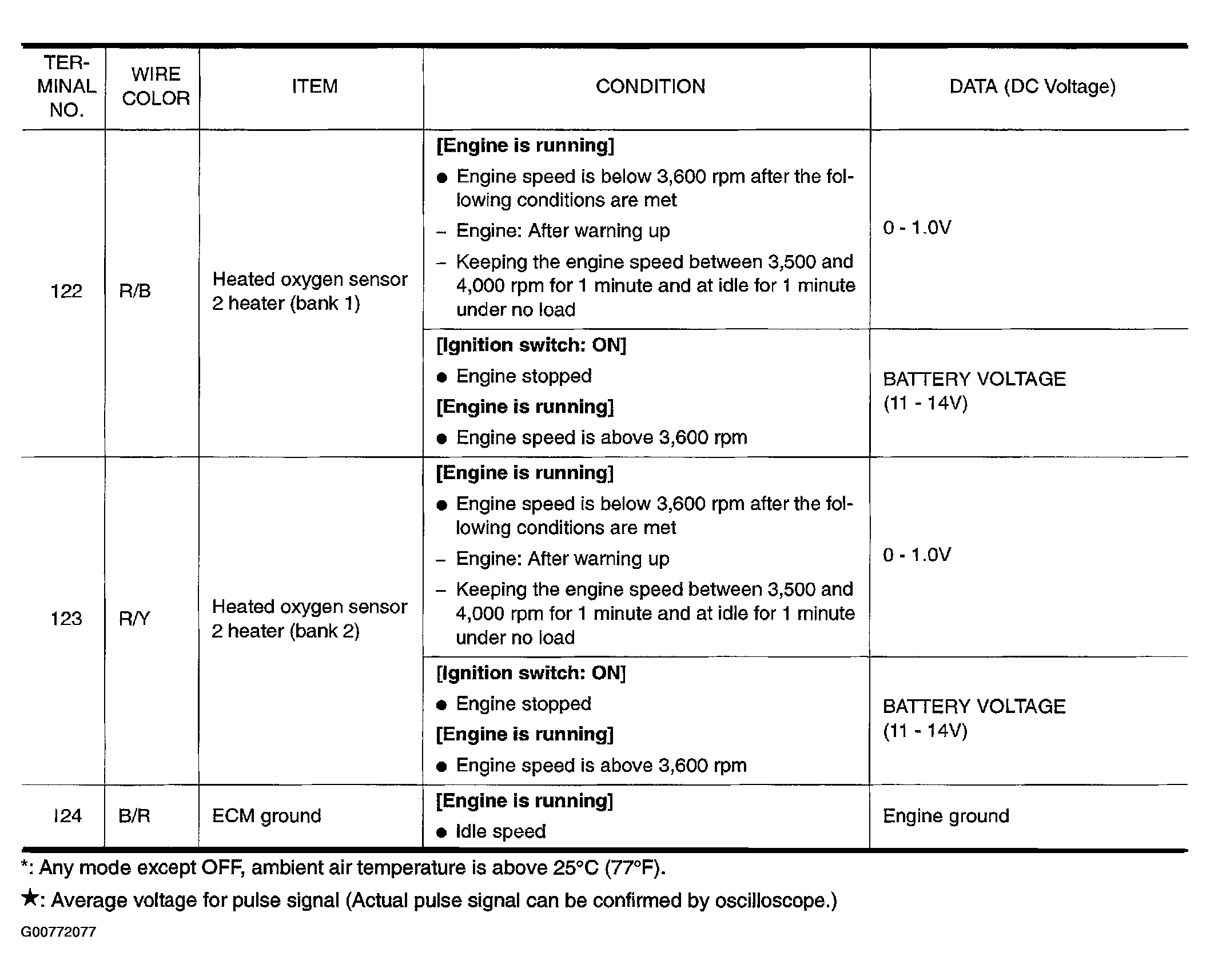

Fig 8: Terminal Specification Chart (8 Of 8)

G00772077

Courtesy of NISSAN MOTOR CO., U.S.A.
