Summery Chart

WARNING: This page is about a different variant/trim than selected.

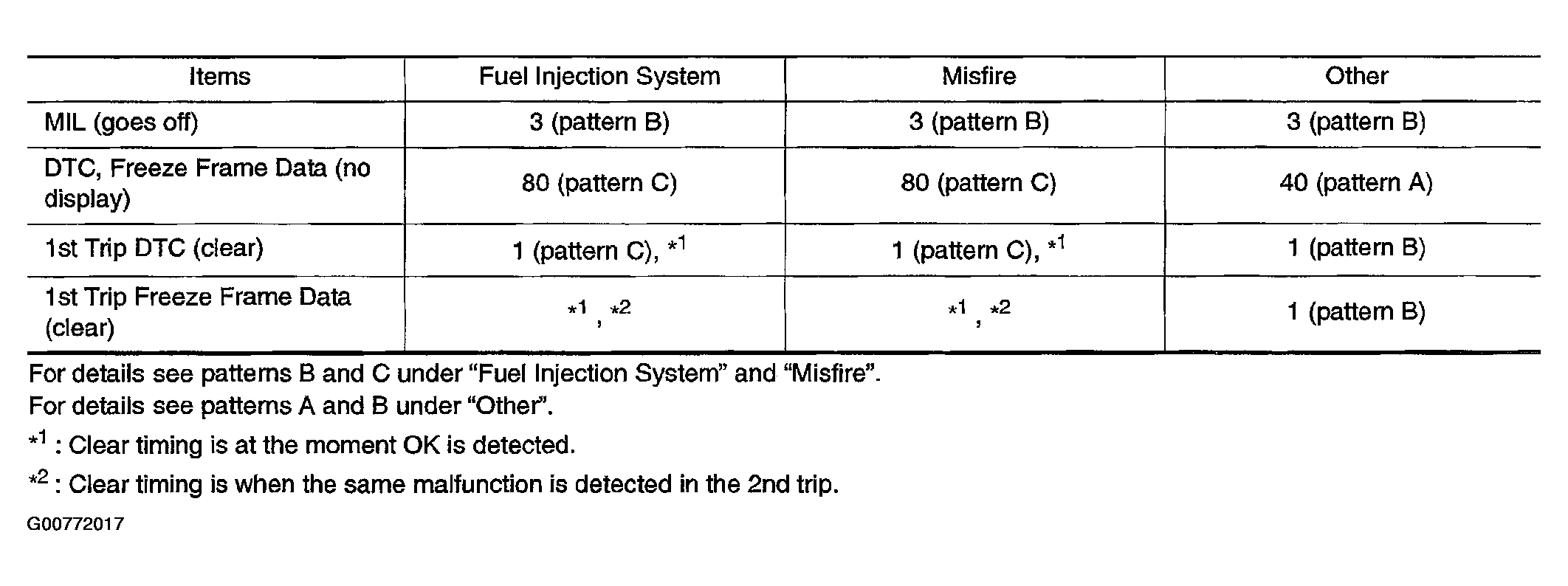

Fig 1: SUMMERY CHART

G00772017

Courtesy of NISSAN MOTOR CO., U.S.A.

For details about patterns B and C under "Fuel Injection System" and "Misfire", see EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >""FUEL INJECTION SYSTEM" .

For details about patterns A and B under "Other", see EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE < EXHAUST QUALITY DETERIORATION > ""FUEL INJECTION SYSTEM" .

Clear timing is at the moment OK is detected.
Clear timing is when the same malfunction is detected in the 2nd trip.
