Section 4 (Engine Control System - VG33ER)
>>
DTC P0340: CMP Sensor
>>
On Board Diagnosis Logic
On Board Diagnosis Logic
WARNING:
This page is about a different variant/trim than selected.

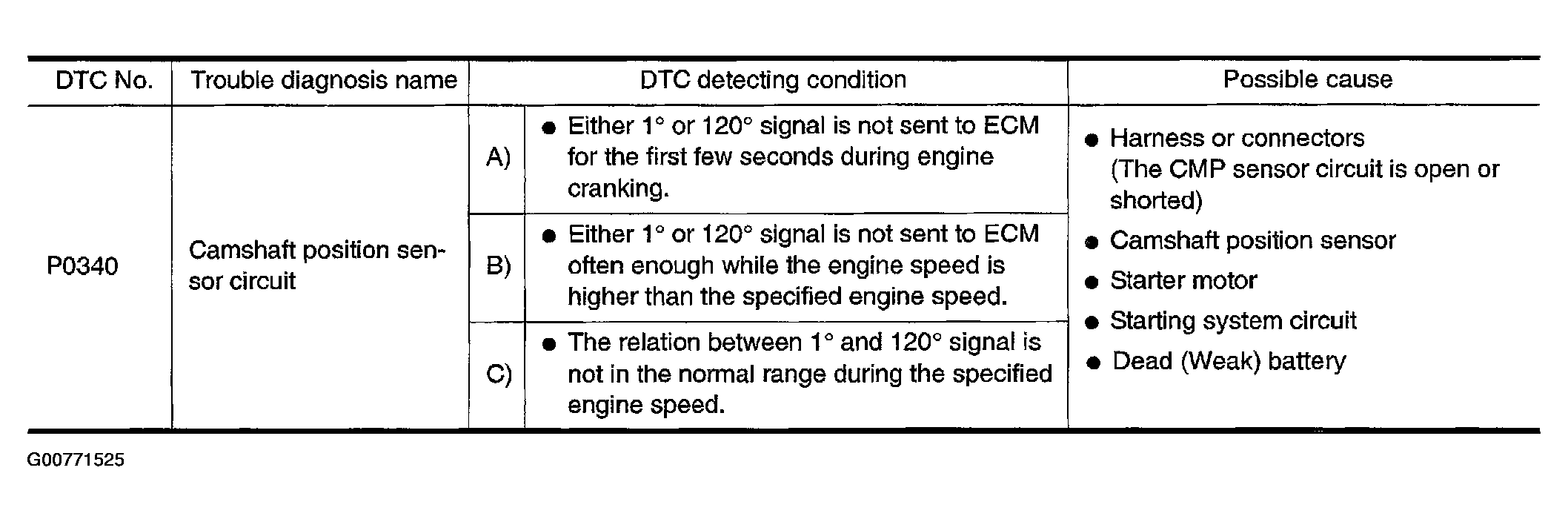

Fig 1: On Board Diagnosis Logic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
