Testing Condition:

WARNING: This page is about a different variant/trim than selected.

Always perform at a temperature above --10°C (14°F).
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

WITH CONSULT-II

Start engine and warm it up to normal operating temperature.
Stop engine and wait at least 5 seconds.
Turn ignition switch ON and select "HO2S1 (B1)/(B2) P0133/P0153" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
Touch "START".

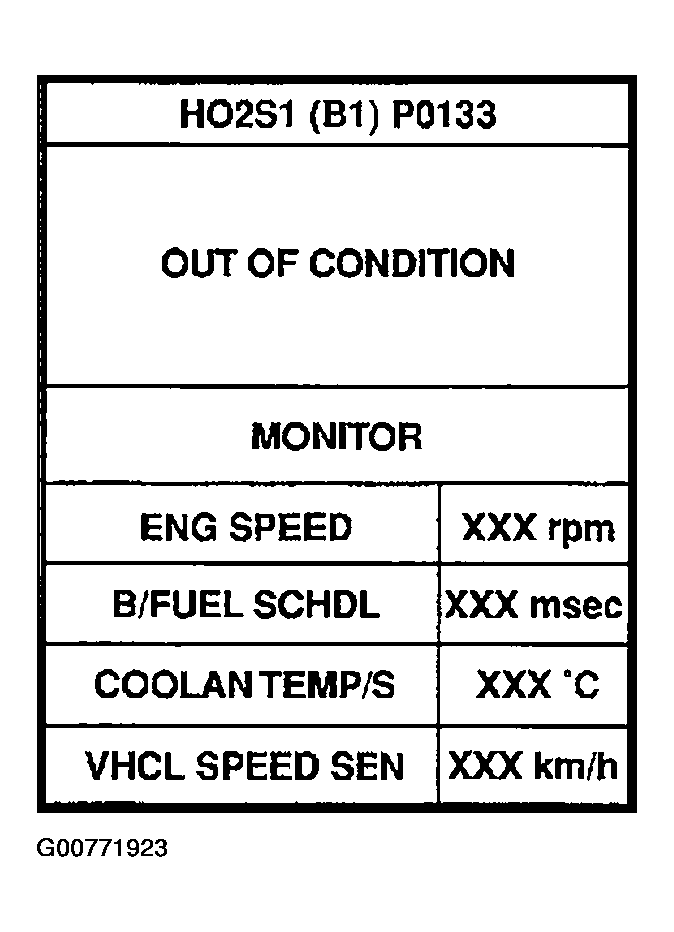

Fig 1: Displaying "HO2S1 (B1) P0133/P0153" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and let it idle for at least 3 minutes.
NOTE: Never raise engine speed above 2, 800 RPM after this step. If the engine speed limit is exceeded, return to step 5.
When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 40 to 50 seconds.)

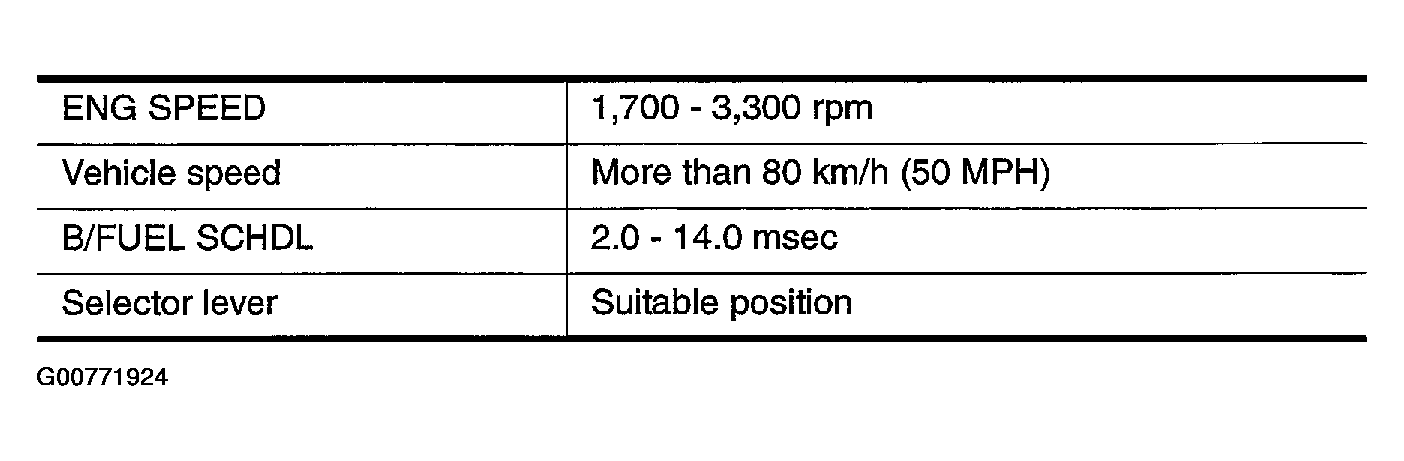

Fig 2: Engine Speed Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If "TESTING" is not displayed after 5 minutes, retry from step 2 .

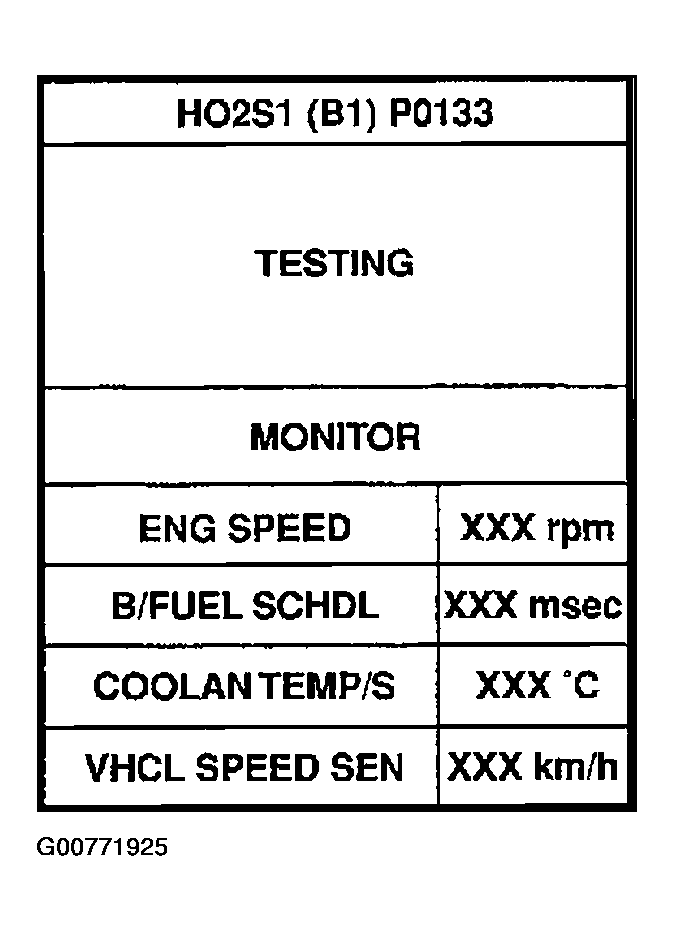

Fig 3: Displaying "TESTING" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".

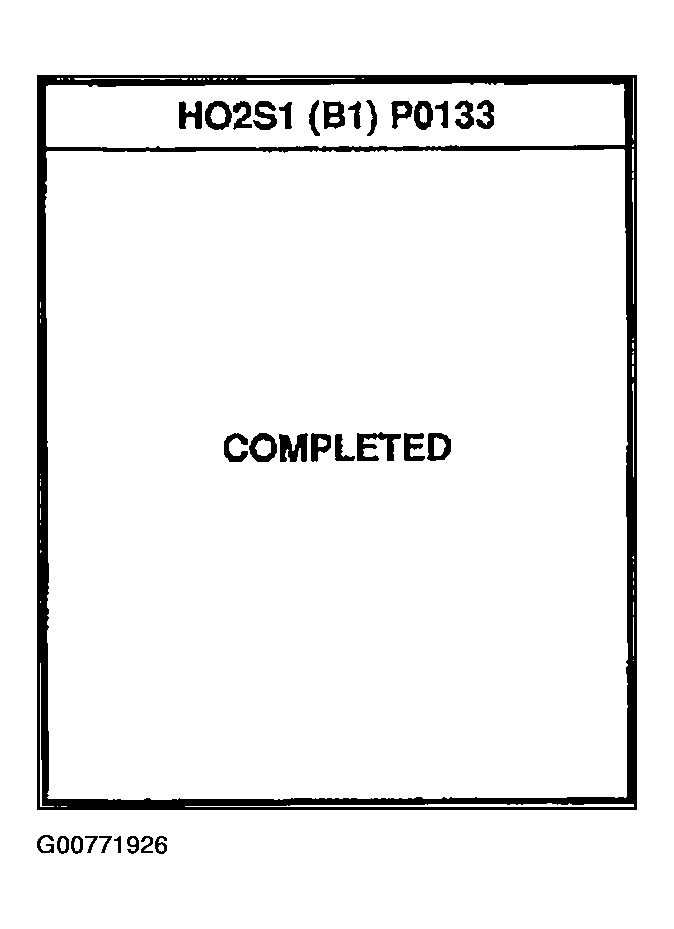

Fig 4: Displaying "HO2S1 (B1) P0133/P0153" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
