Data Link Connector: Wiring Diagram

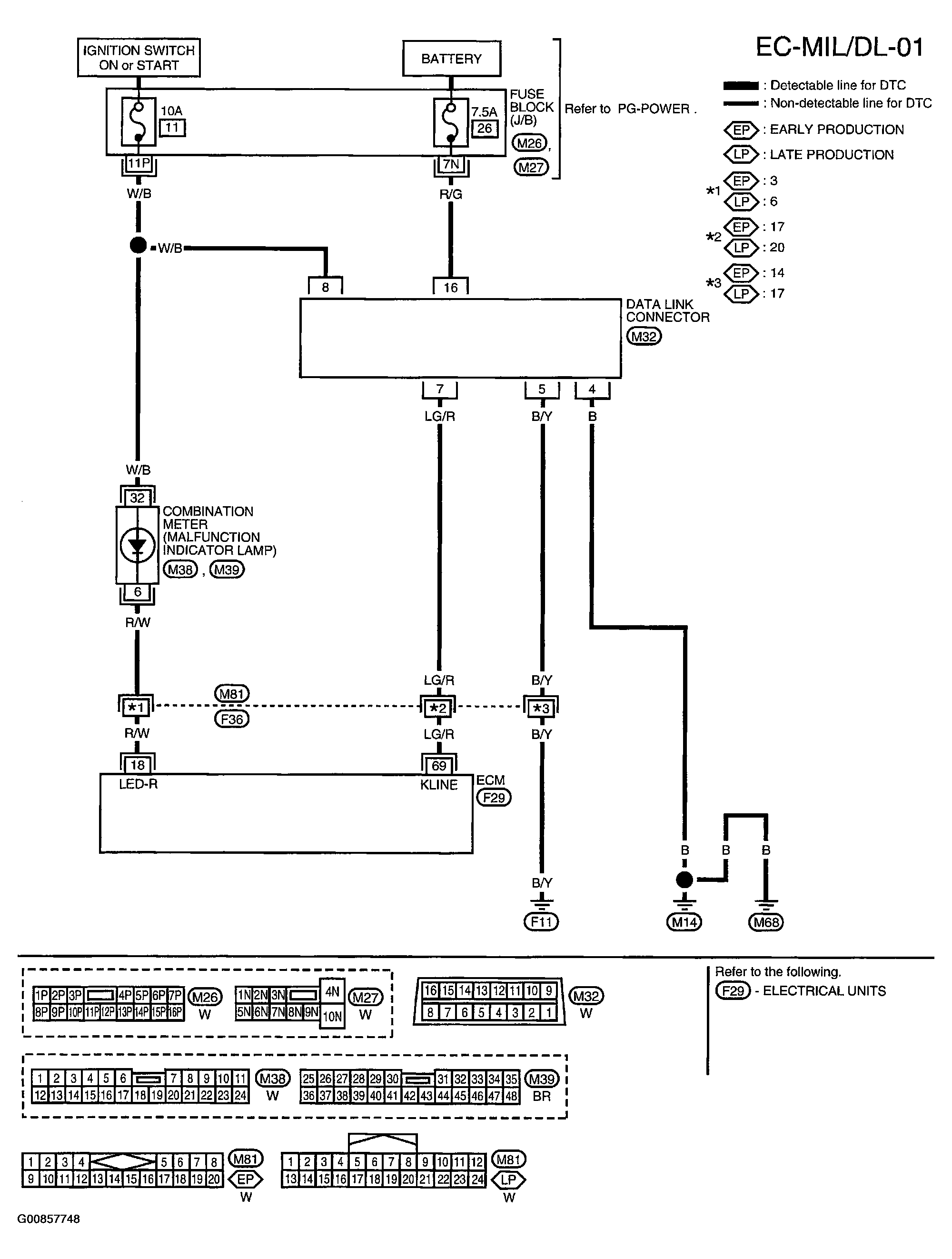

Fig 1: Wiring Diagram - EC-MIL/DL-01

G00857748

Courtesy of NISSAN MOTOR CO., U.S.A.
