DTC P0460: Fuel Level Sensor: Wiring Diagram

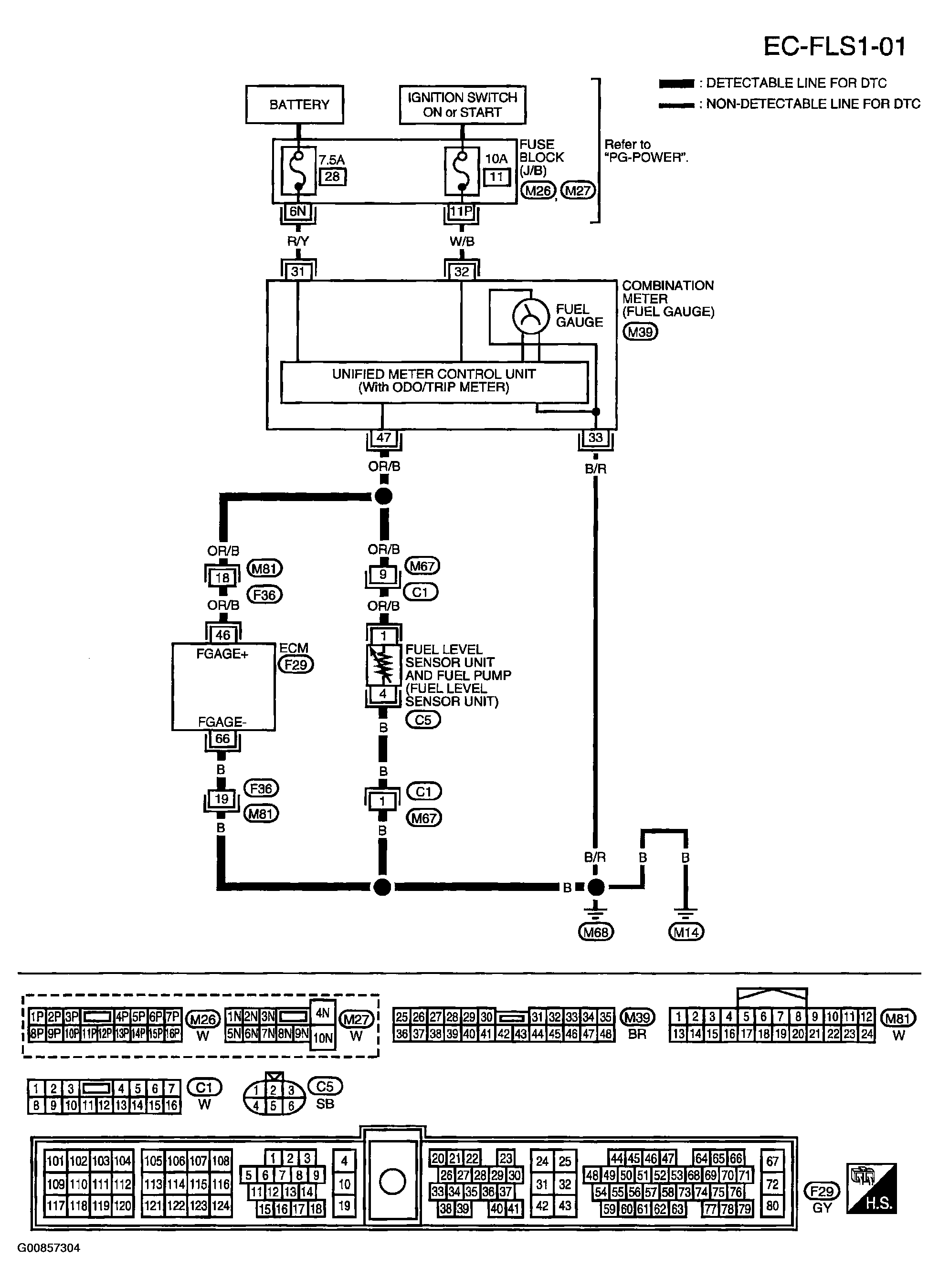

Fig 1: Wiring Diagram - EC-FLS1-01

G00857304

Courtesy of NISSAN MOTOR CO., U.S.A.
