DTC P0400: EGR Function: Wiring Diagram

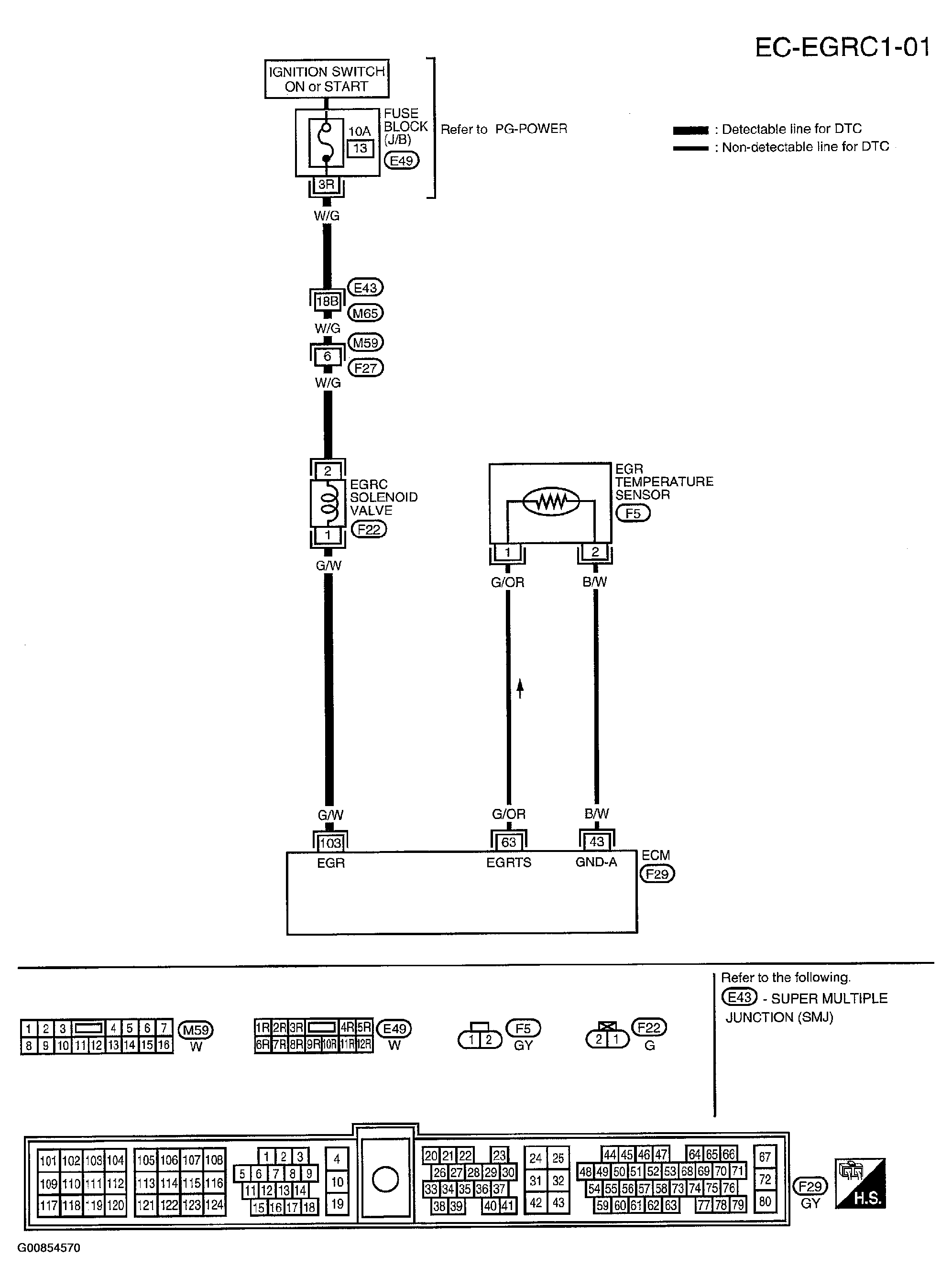

Fig 1: Wiring Diagram - EC-EGRC1-01

G00854570

Courtesy of NISSAN MOTOR CO., U.S.A.
