Camshaft Position Sensor

  1. Reconnect all harness connector disconnected.
  2. Start engine and warm it up to normal operating temperature.
  3. Check voltage between ECM terminal 49 and engine ground. ECM terminals 44, 48 and engine ground.

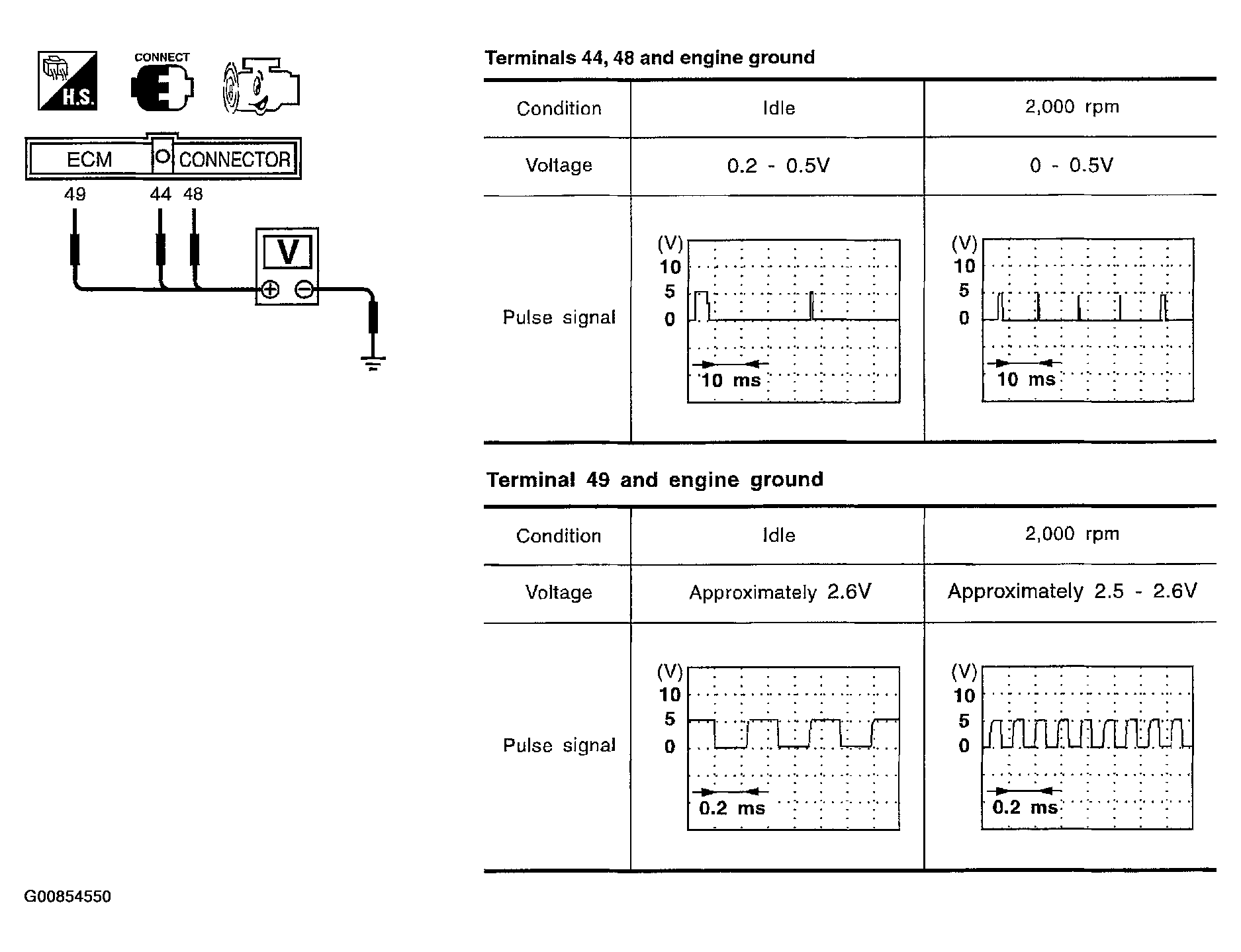

Fig 1: Checking Voltage Between ECM Terminal And Engine Ground
G00854550Courtesy of NISSAN MOTOR CO., U.S.A.
