Diagnostic Procedure

  1. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine ground screws.
      1. GO TO 2.

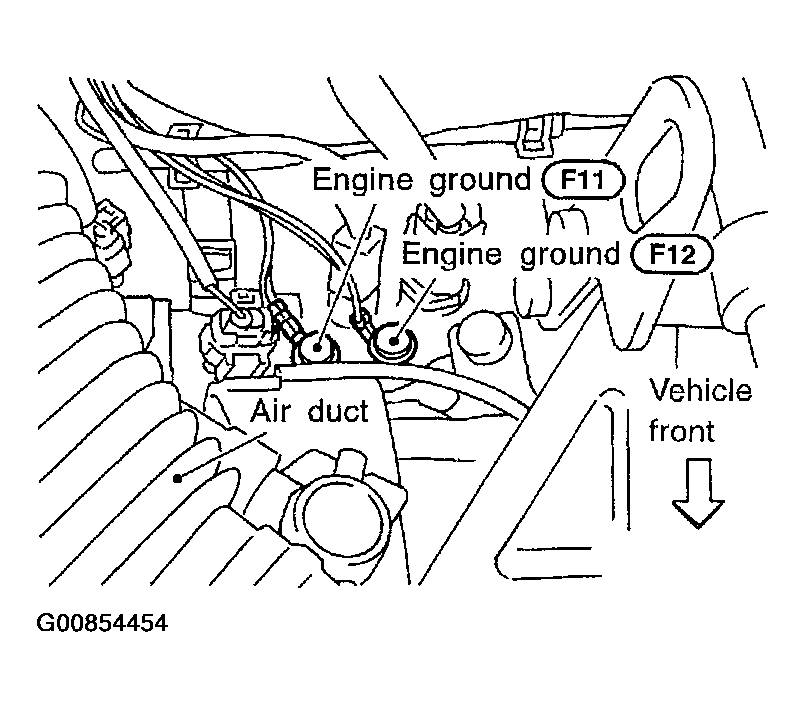

    Fig 1: Tightening Engine Ground Screws
    G00854454Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CLEAR THE SELF-LEARNING DATA

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
    3. Clear the self-learning control coefficient by touching "CLEAR".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 or P0172 detected?

      Is it difficult to start engine?

    Fig 2: Scan Tool Display - Work Support
    G00854455Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch "OFF".
    3. Disconnect mass air flow sensor harness connector, and restart and run engine for at least 3 seconds at idle speed.
    4. Stop engine and reconnect mass air flow sensor harness connector.
    5. Make sure DTC P0102 is displayed.
    6. Erase the DTC memory. Refer to HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION .
    7. Make sure DTC P0000 is displayed.
    8. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 or P0172 detected?

      Is it difficult to start engine?

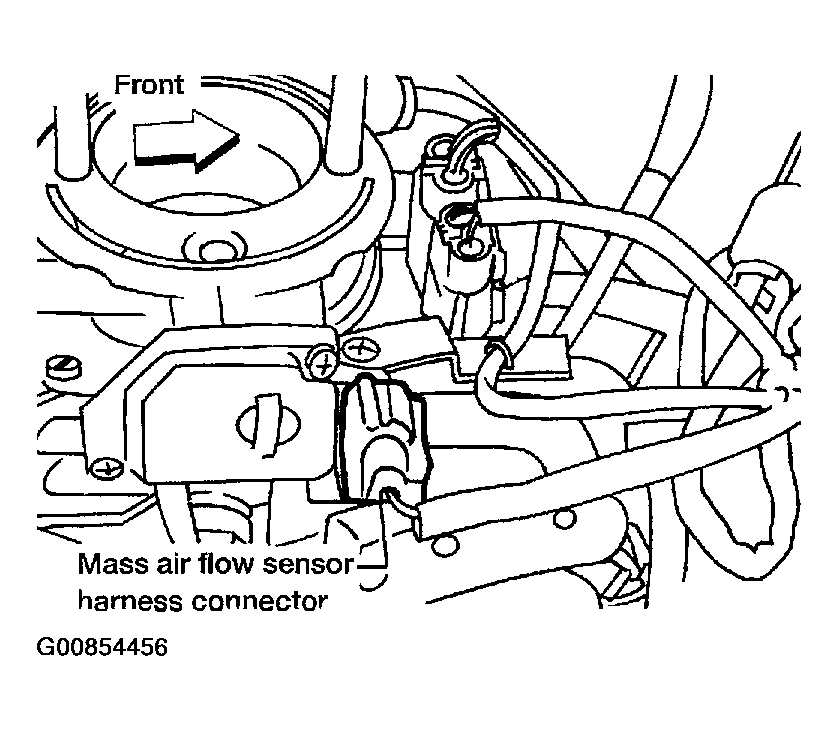

    Fig 3: Disconnecting Mass Air Flow Sensor Harness Connector
    G00854456Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: Perform trouble diagnosis for DTC P0171 or P0172. Refer to DTC P0171 FUEL INJECTION SYSTEM FUNCTION  or DTC P0172 FUEL INJECTION SYSTEM FUNCTION .
    2. No: GO TO 3.
  3. CHECK INPUT SIGNAL CIRCUIT
    1. Disconnect heated oxygen sensor 2 harness connector and ECM harness connector.
    2. Check harness continuity between ECM terminal 56 and HO2S2 terminal 1.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Check harness continuity between ECM terminal 56 or HO2S2 terminal 1 and ground.

      Refer to WIRING DIAGRAM .

      Continuity should not exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M58, F28
    • Harness for open or short between heated oxygen sensor 2 and ECM
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK GROUND CIRCUIT
    1. Check harness continuity between heated oxygen sensor 2 terminal 4 and engine ground.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to power.

    OK or NG

    1. OK: GO TO  7.
    2. NG: GO TO 6
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M58, F28
    • Harness for open or short between heated oxygen sensor 2 and engine ground
      1. Repair open circuit or short to power in harness or connectors.
  7. CHECK HEATED OXYGEN SENSOR 2

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace heated oxygen sensor 2.
  8. CHECK INTERMITTENT INCIDENT

    Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. : INSPECTION END.
