DTC P0125: ECT Sensor: Wiring Diagram

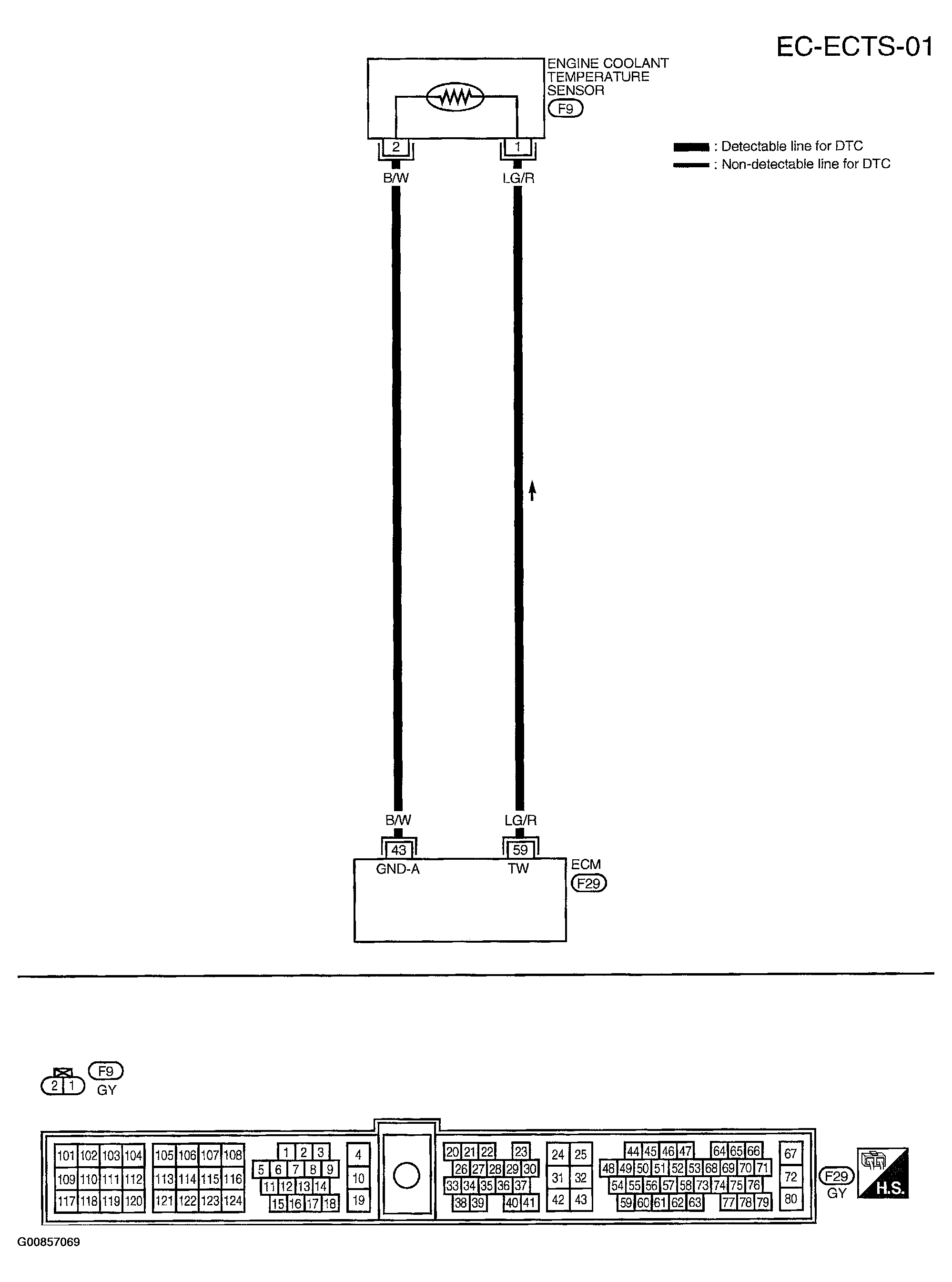

Fig 1: Wiring Diagram - EC-ECTS-01

G00857069

Courtesy of NISSAN MOTOR CO., U.S.A.
