CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

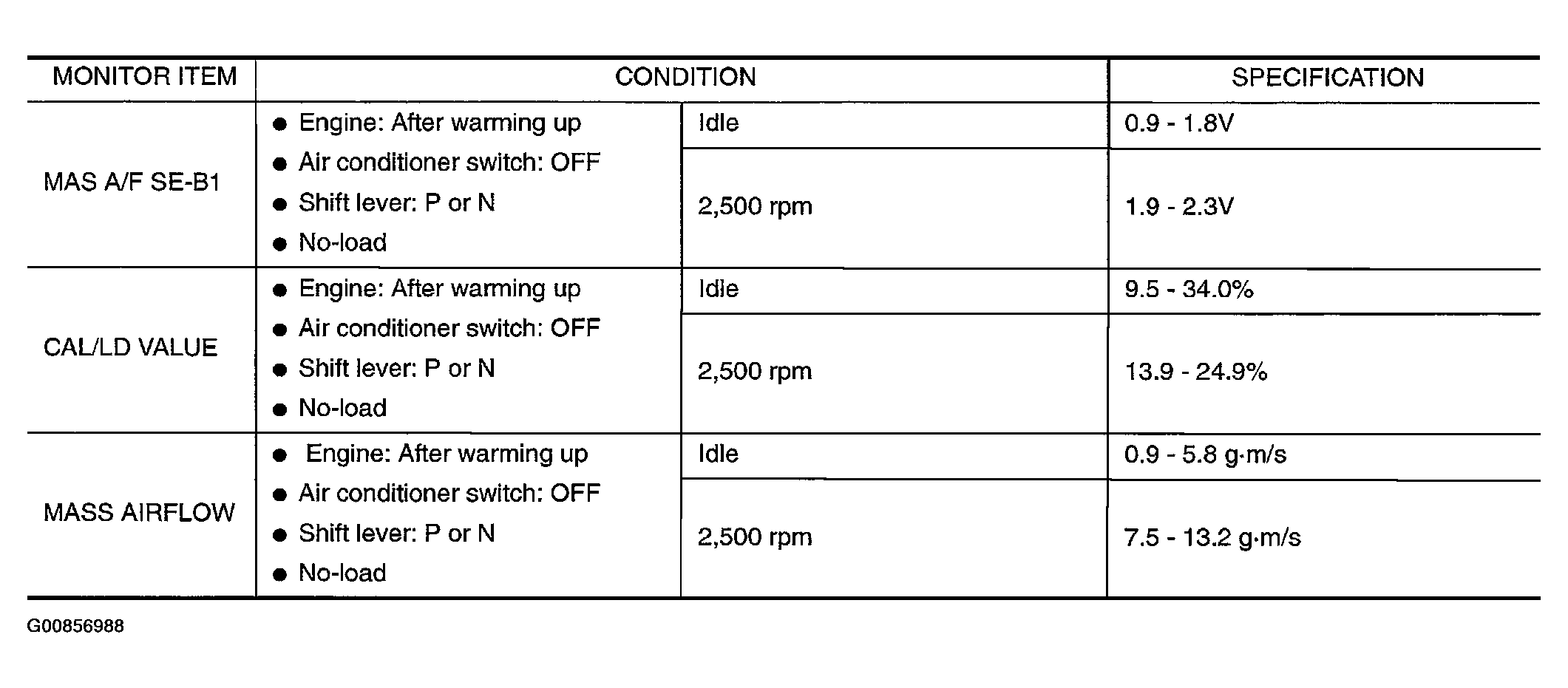

Fig 1: Consult-II Reference Value in Data Monitor Mode Chart

G00856988

Courtesy of NISSAN MOTOR CO., U.S.A.
