Engine Control System - KA24DE
>>
Circuit Diagram
Circuit Diagram

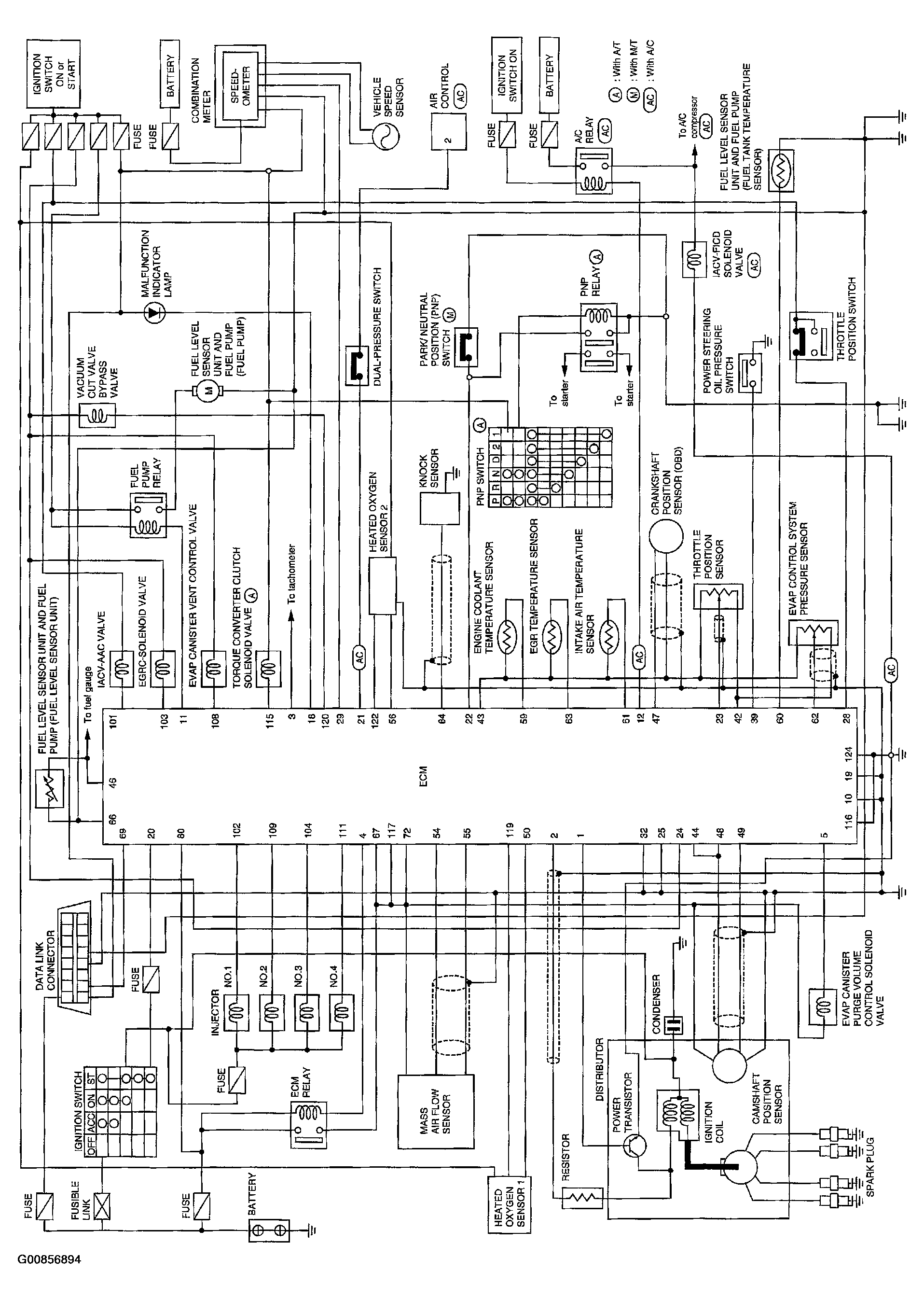

Fig 1: Identifying Engine Control Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
