Knuckle Spindle: Removal

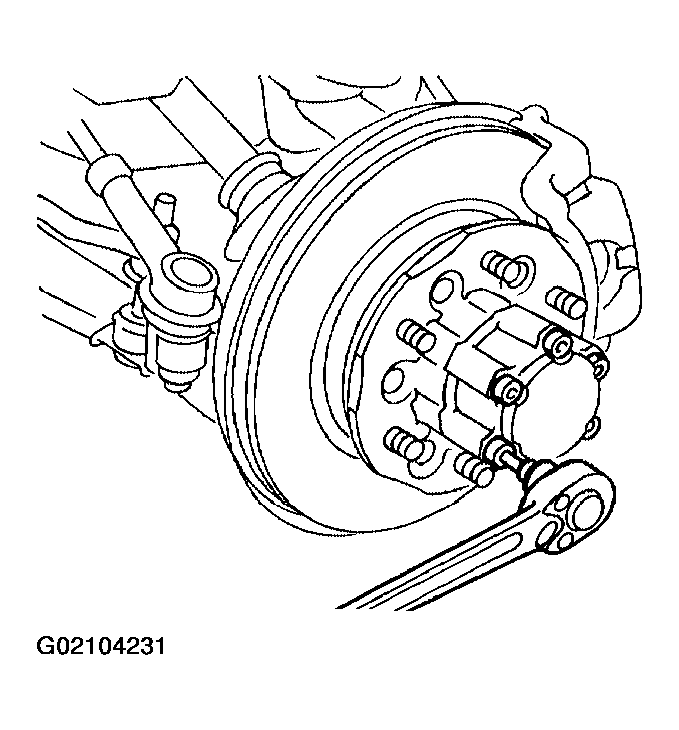

Remove auto-lock free-running hub assembly (4WD models).
Refer to "REMOVAL AND INSTALLATION ".
Remove wheel hub and rotor disc.
Refer to "REMOVAL AND INSTALLATION ".

Fig 1: Removing Auto-Lock Free-Running Hub Assembly (4WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

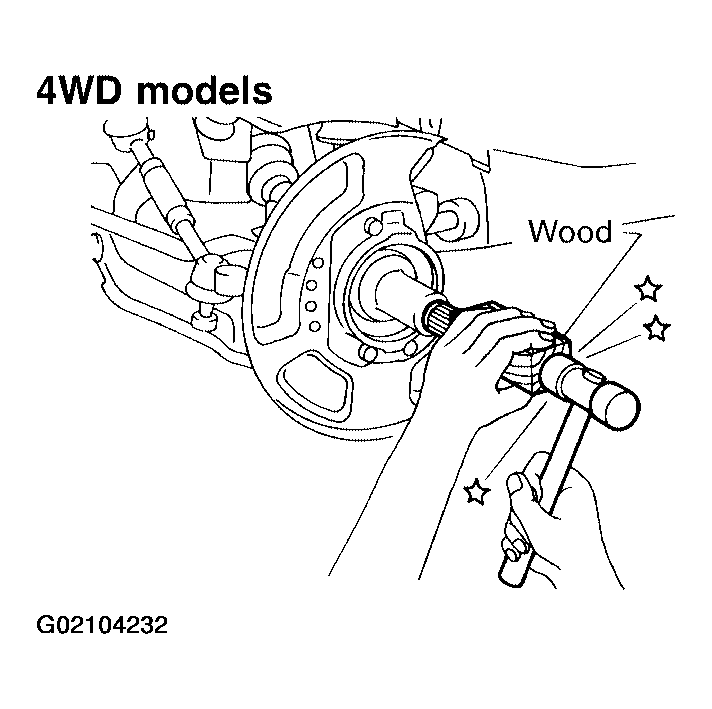

Separate drive shaft from knuckle spindle by slightly tapping drive shaft end (4WD models).

Fig 2: Removing Drive Shaft From Knuckle Spindle
Courtesy of NISSAN MOTOR CO., U.S.A.

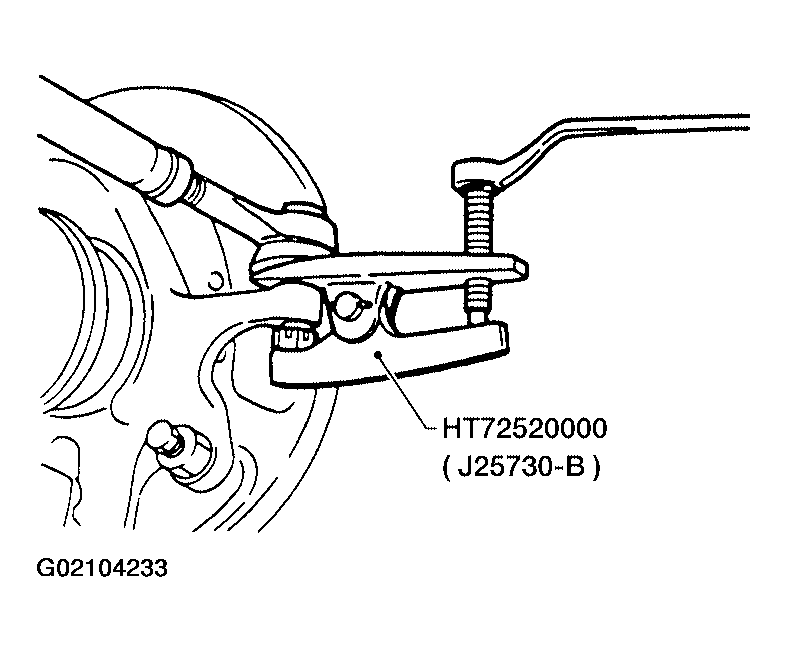

Separate tie-rod from knuckle spindle with Tool.
CAUTION: Install stud nut conversely on stud bolt so as not to damage stud bolt.

Fig 3: Removing Tie-Rod From Knuckle Spindle
Courtesy of NISSAN MOTOR CO., U.S.A.
Separate knuckle spindle from ball joints.

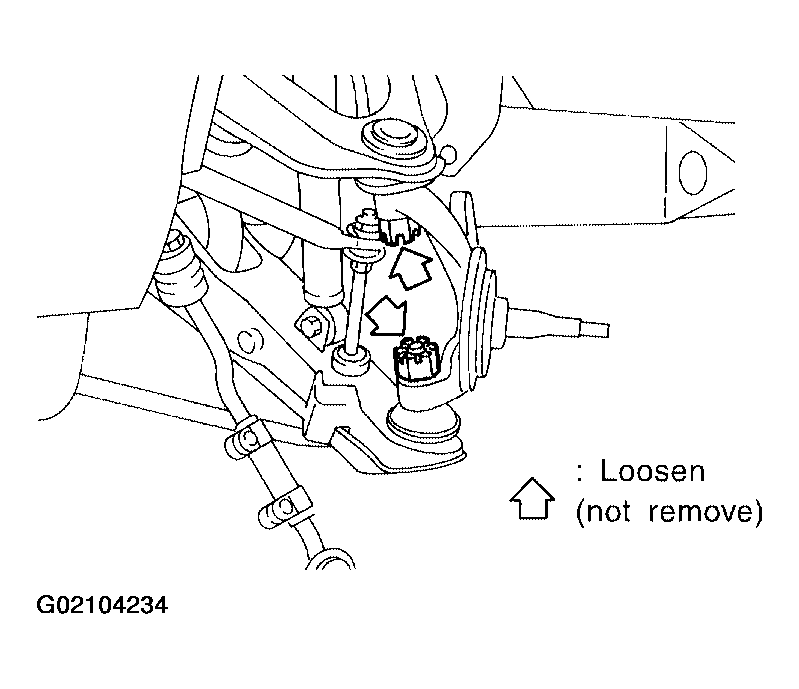

1. Loosen (do not remove) upper and lower ball joint tightening nuts.

  Fig 4: Removing Knuckle Spindle From Ball Joints
  Courtesy of NISSAN MOTOR CO., U.S.A.

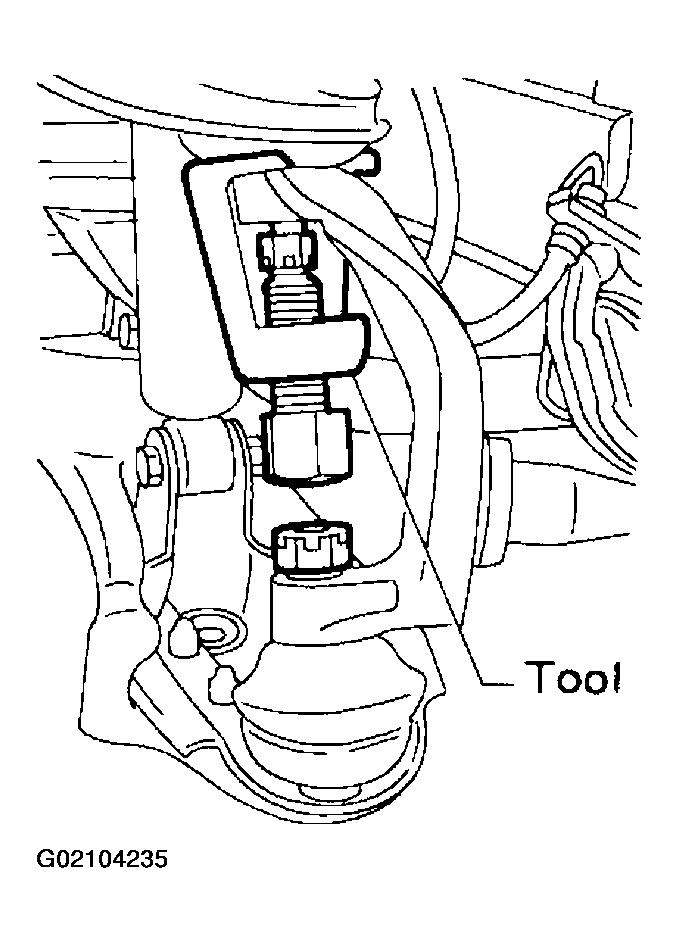

2. Separate knuckle spindle from upper and lower ball joint studs with Tool.
  CAUTION: During above operation, never remove ball joint nuts which are loosened in step (a) above.
  1. Tool:
  2. 2WD Models ST29020001 (J24319-01)
  3. 4WD Models HT25200000 (J25730-B)
  Fig 5: Removing Knuckle Spindle From Upper And Lower Ball Joint Studs
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove ball joint tightening nuts.

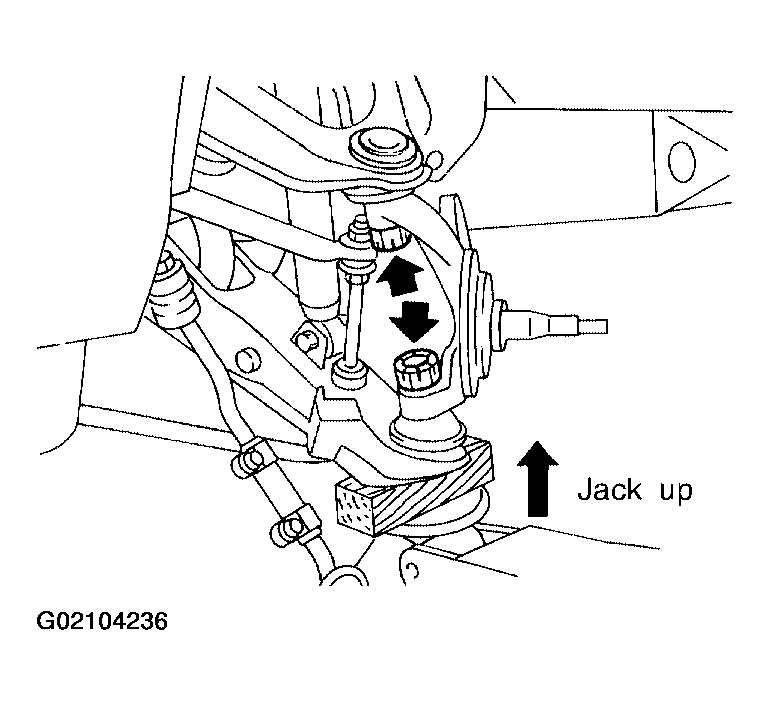

  CAUTION: Support lower link with jack.
4. Remove knuckle spindle from upper and lower links.
Fig 6: Removing Knuckle Spindle From Upper And Lower Links
Courtesy of NISSAN MOTOR CO., U.S.A.
