Removal and Installation

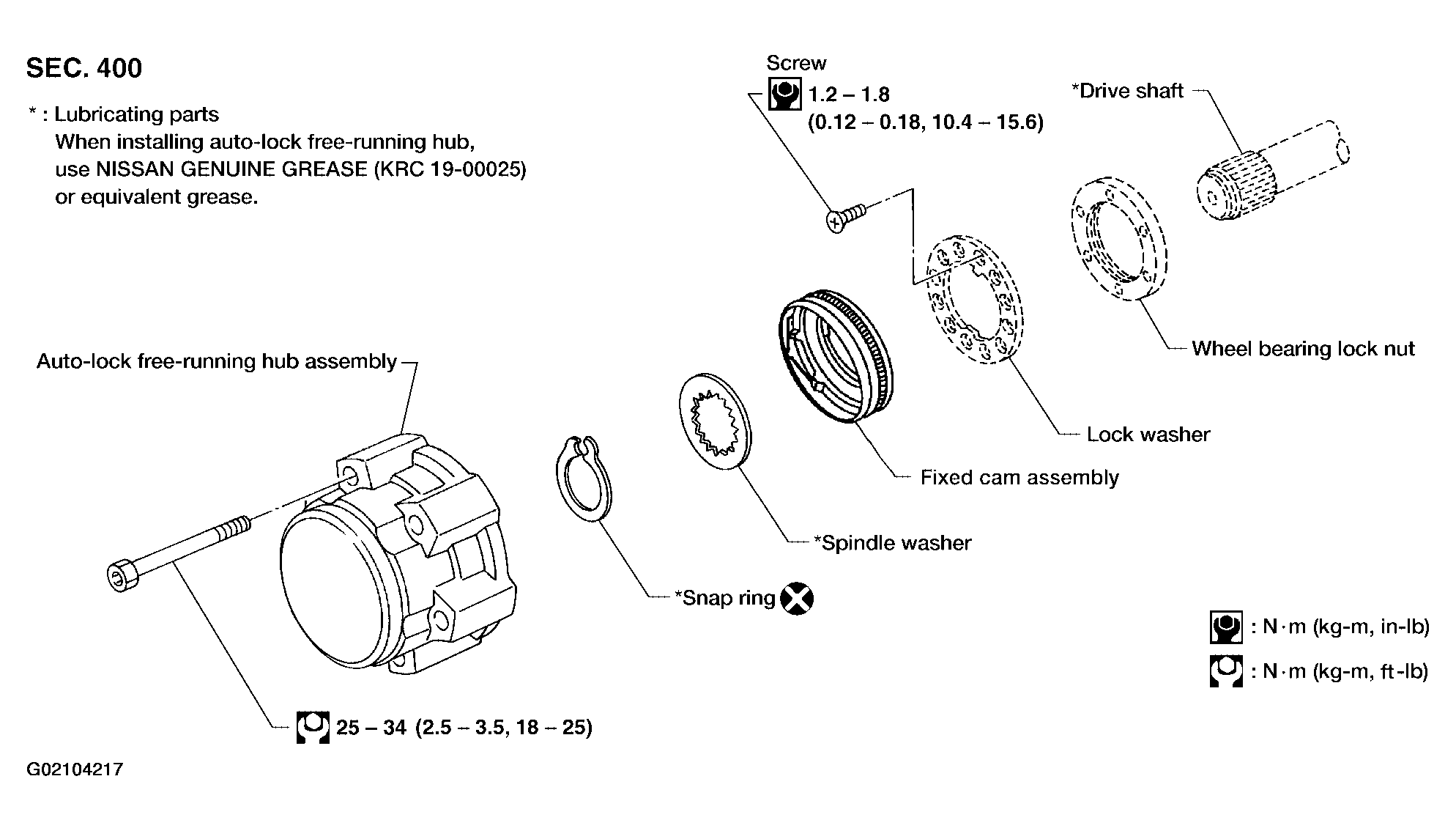

Fig 1: Exploded View Of Auto-Lock Free-Running Hub
G02104217Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove auto-lock free-running hub assembly.

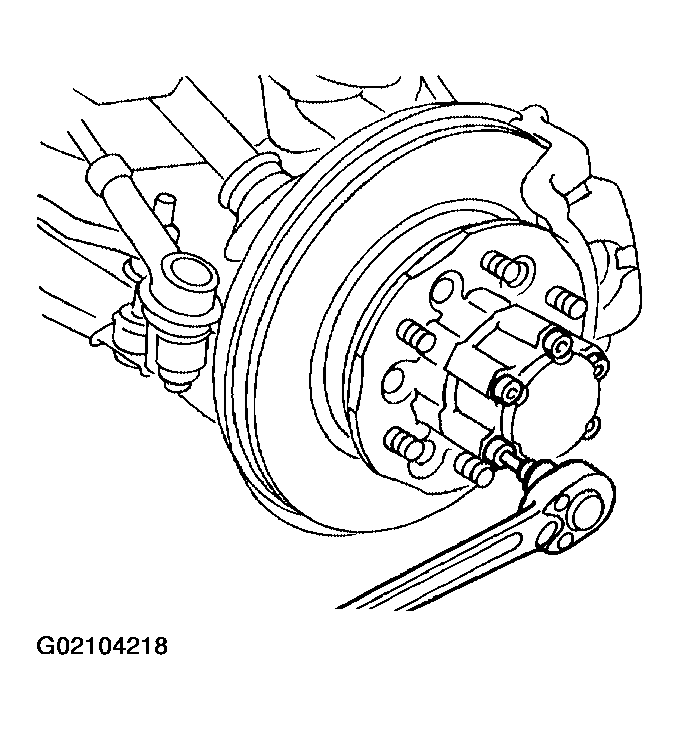

    Fig 2: Removing Auto-Lock Free-Running Hub Assembly
    G02104218Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove snap ring.

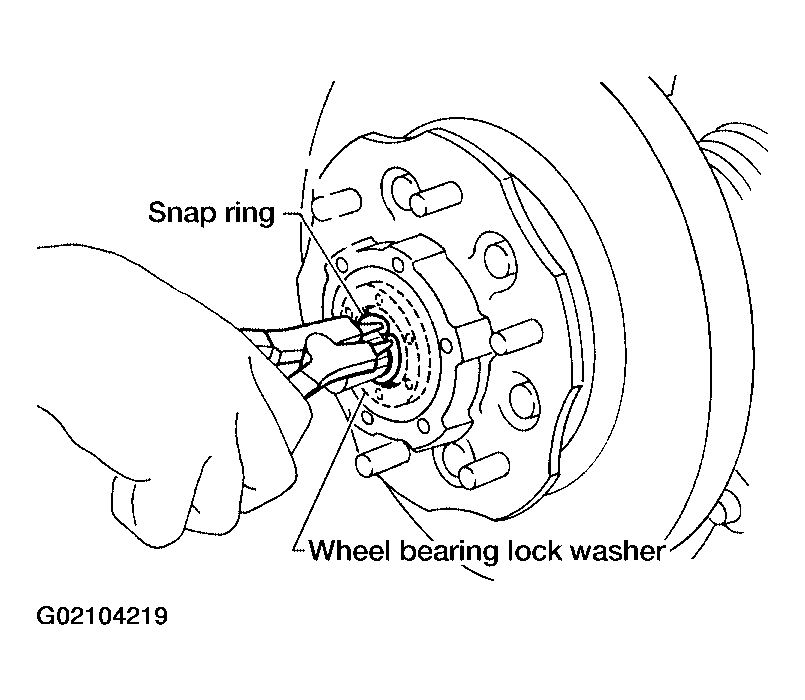

    3. Fig 3: Removing Snap Ring
    G02104219Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove spindle washer and fixed cam assembly.
  4. Install fixed cam assembly. Be sure to align the tabs of the fixed cam assembly to the notches of the knuckle.
    CAUTION: During installation, apply recommended grease to the parts.
  5. Place the spindle washer and then the snap ring over the axle shaft positioning them between the two locking grooves.
  6. While supporting the axle shaft behind the knuckle, use an appropriate sized deep socket to securely seat the snap ring into the inner locking groove.
    CAUTION: Visually verify that the snap ring is fully seated into the locking groove.
  7. After installing auto-lock free-running hub, check operation.
