Consult-II Basic Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  3. Turn ignition switch ON.
    Fig 1: Identifying Brake Pedal And Data Link Connector
    G00780059Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Display CONSULT-II Screen
    G00780060Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS" in the "Diagnosis System Selection" screen. If "ABS" is not indicated, go to CONSULT-II CHECKING SYSTEM .

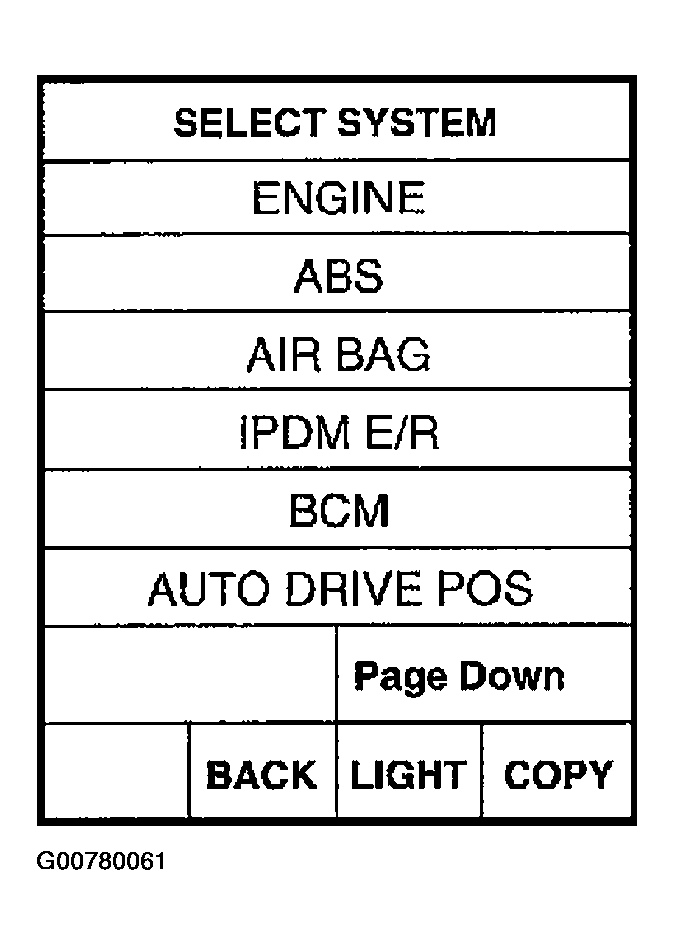

    Fig 3: Display CONSULT-II SELECT SYSTEM Screen
    G00780061Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the required diagnosis location from the "Diagnosis Mode Selection" screen. For further information, see the CONSULT-II Operation Manual.
