Yaw Rate/Side/Decel G Sensor

Always replace sensor if bumped or dropped. Otherwise, performance characteristics of sensor will be changed, which in turn changes ABS control performance characteristics.

CAUTION: Do not exceed 9 N.m (0.9 kg-m, 80 in-lb) total tightening torque.

Tightening torque:

Step 1 : 7 N.m (0.7 kg-m, 62 in-lb)

Step 2 : 9 N.m (0.9 kg-m, 80 in-lb)

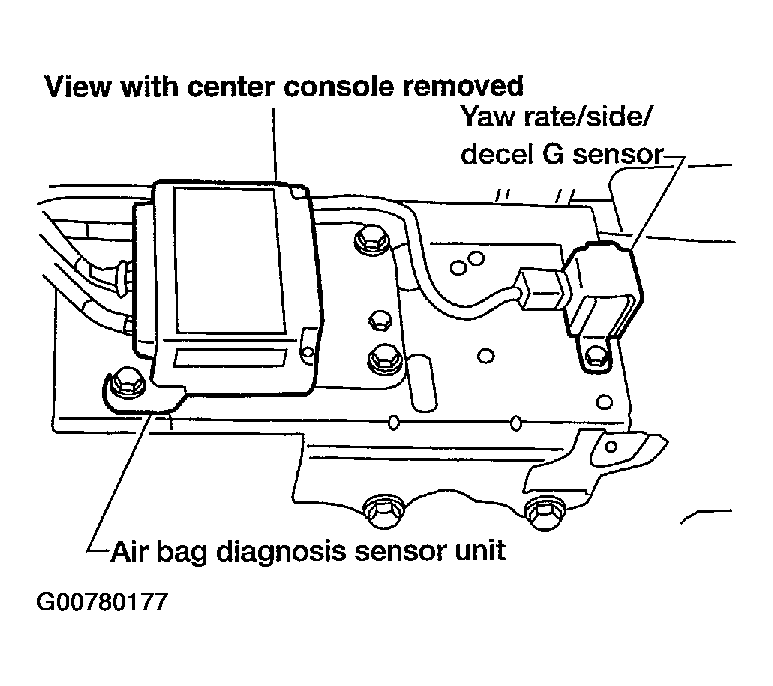

Fig 1: Identifying Yaw Rate/Side/Decel G Sensor
G00780177Courtesy of NISSAN MOTOR CO., U.S.A.
