Circuit Diagram
Circuit Diagram

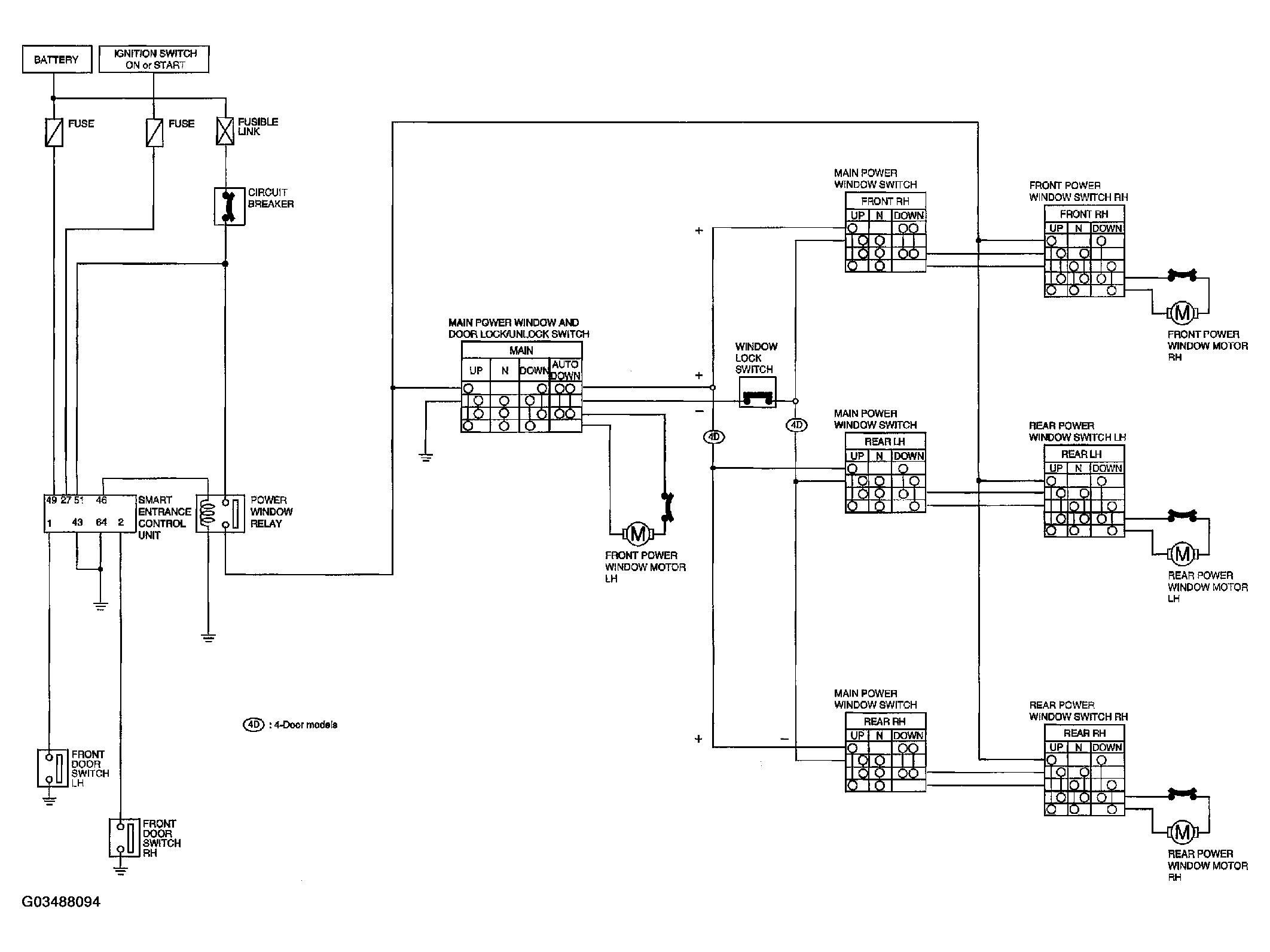

Fig 1: Circuit Diagram - Power Window
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
