Rear View Mirror: Removal

Remove rear view mirror by deflecting spring with screwdriver. See Fig 1 .

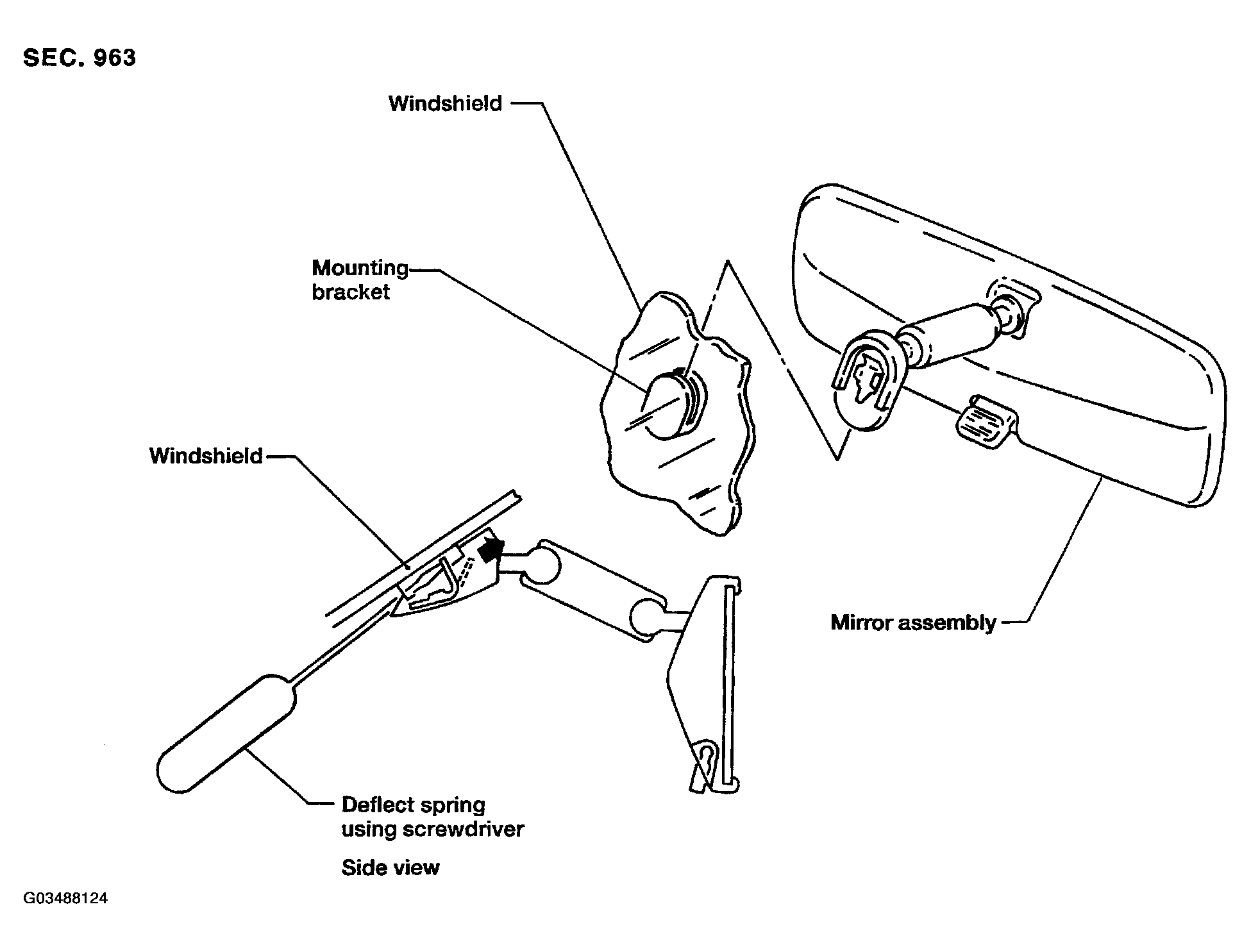

Fig 1: Removing Rear View Mirror - SEC 963

G03488124

Courtesy of NISSAN MOTOR CO., U.S.A.
