Home >> Nissan-Datsun >> 2004 >> Frontier Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - RL4R01A >> Reverse Clutch >> Components

Reverse Clutch: Components

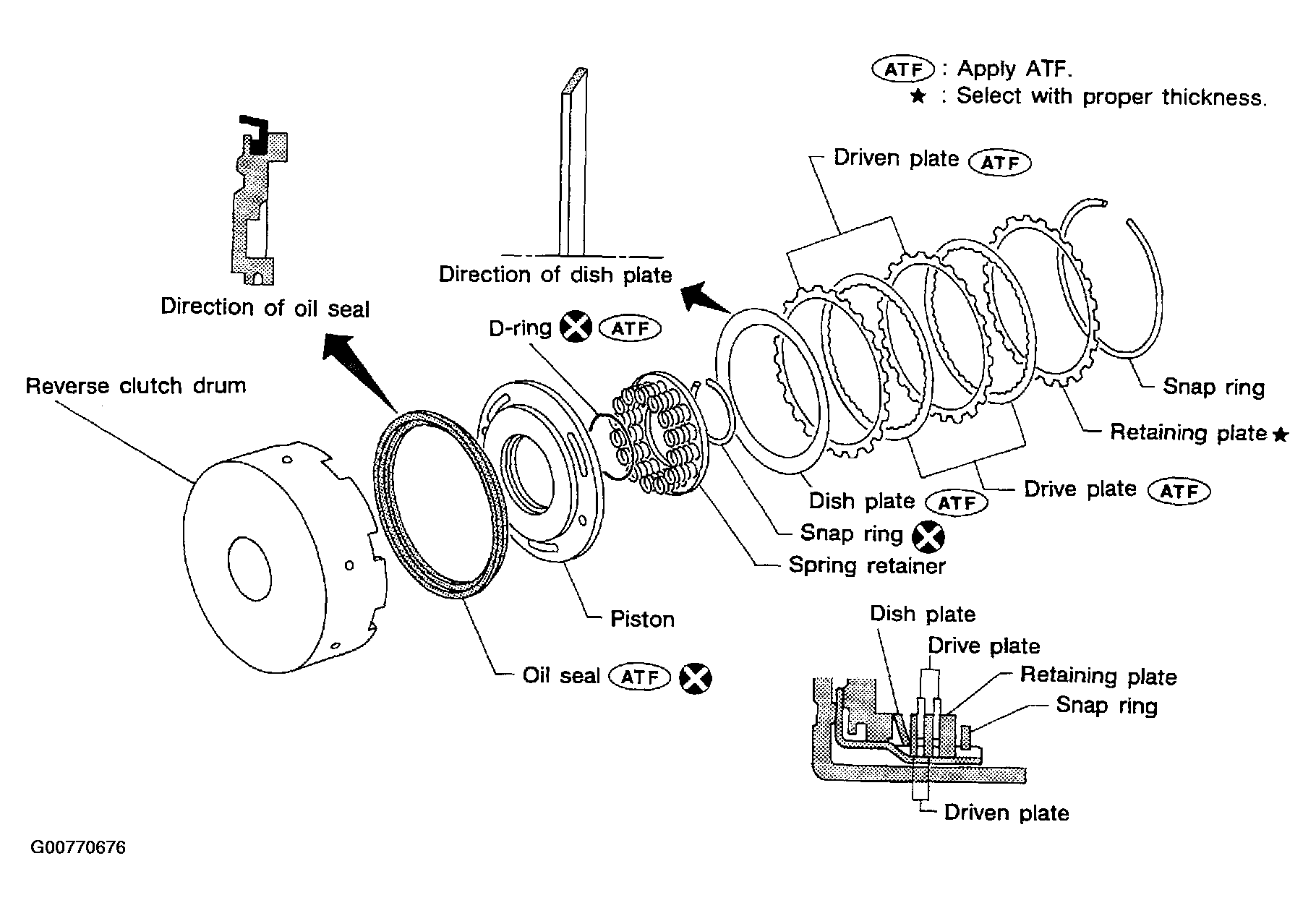

Fig 1: Exploded View Of Reverse Clutch

G00770676

Courtesy of NISSAN MOTOR CO., U.S.A.
