Automatic Transmission - RL4R01A
>>
Parking Pawl Components
>>
Components
Parking Pawl Components: Components

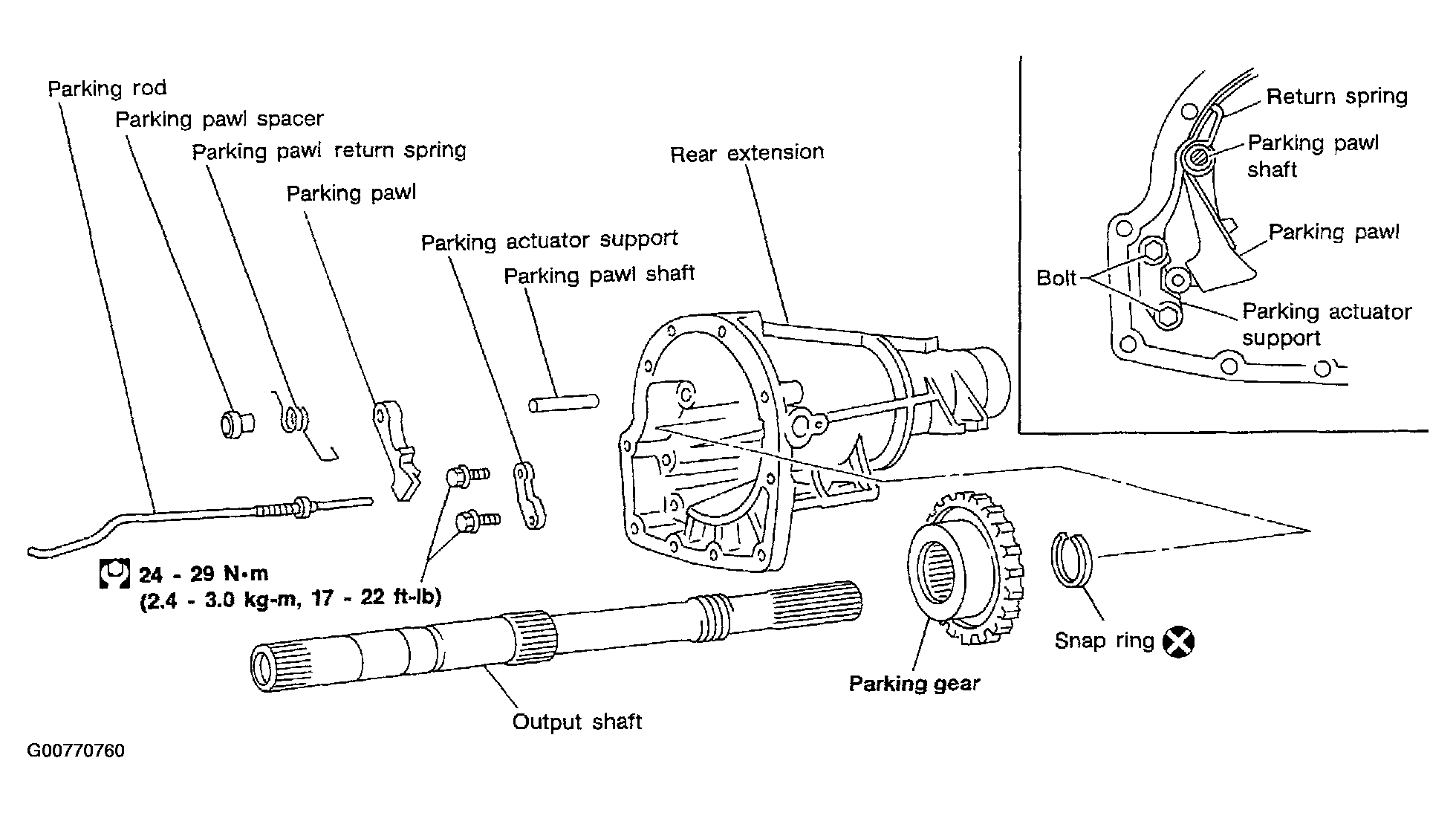

Fig 1: Exploded View Of Parking Pawl Components Including Torque Specs
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
