Automatic Transmission - RL4R01A: Overhaul: Components

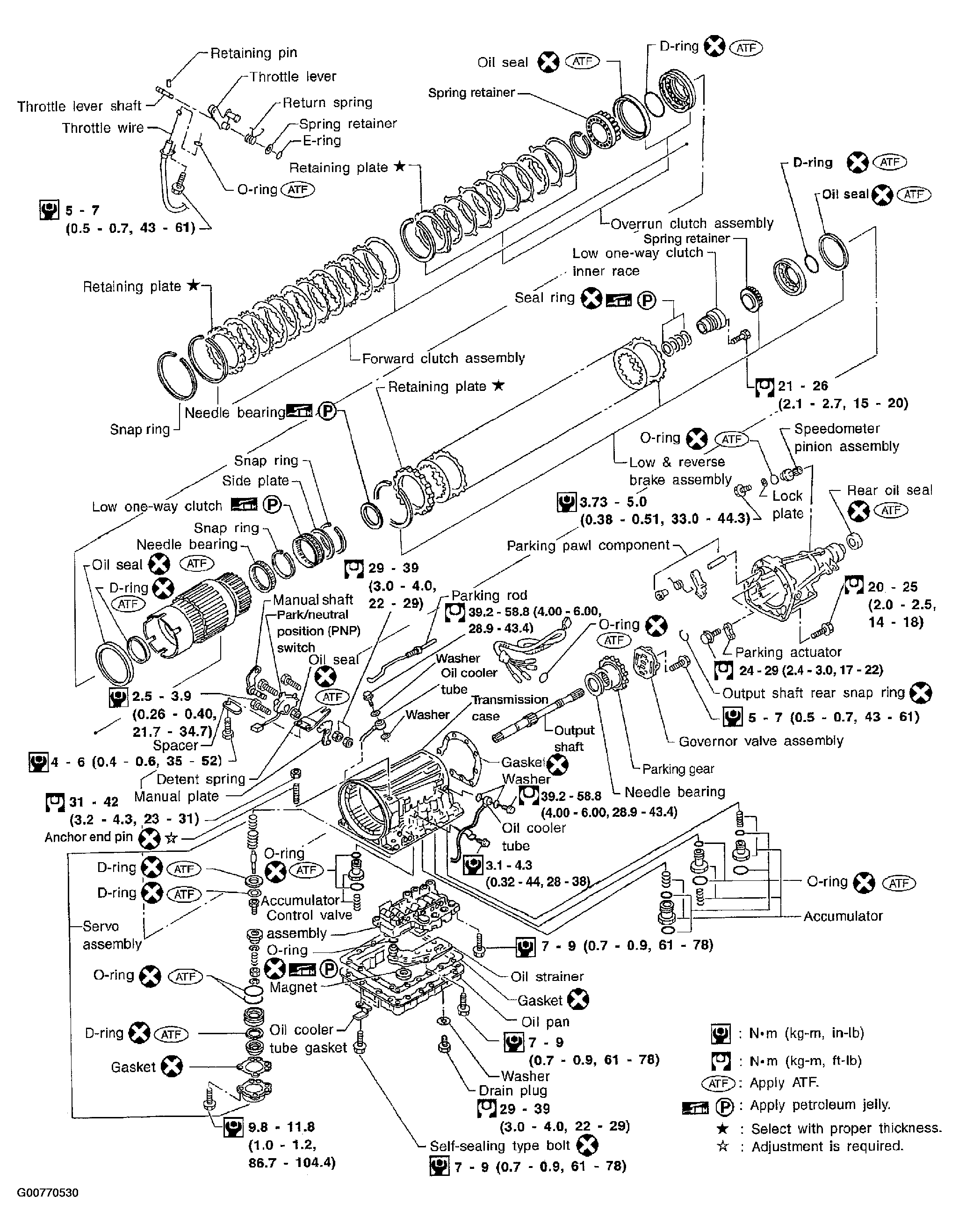

Fig 1: Exploded View Of Transmission Components Including Torque Specs (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

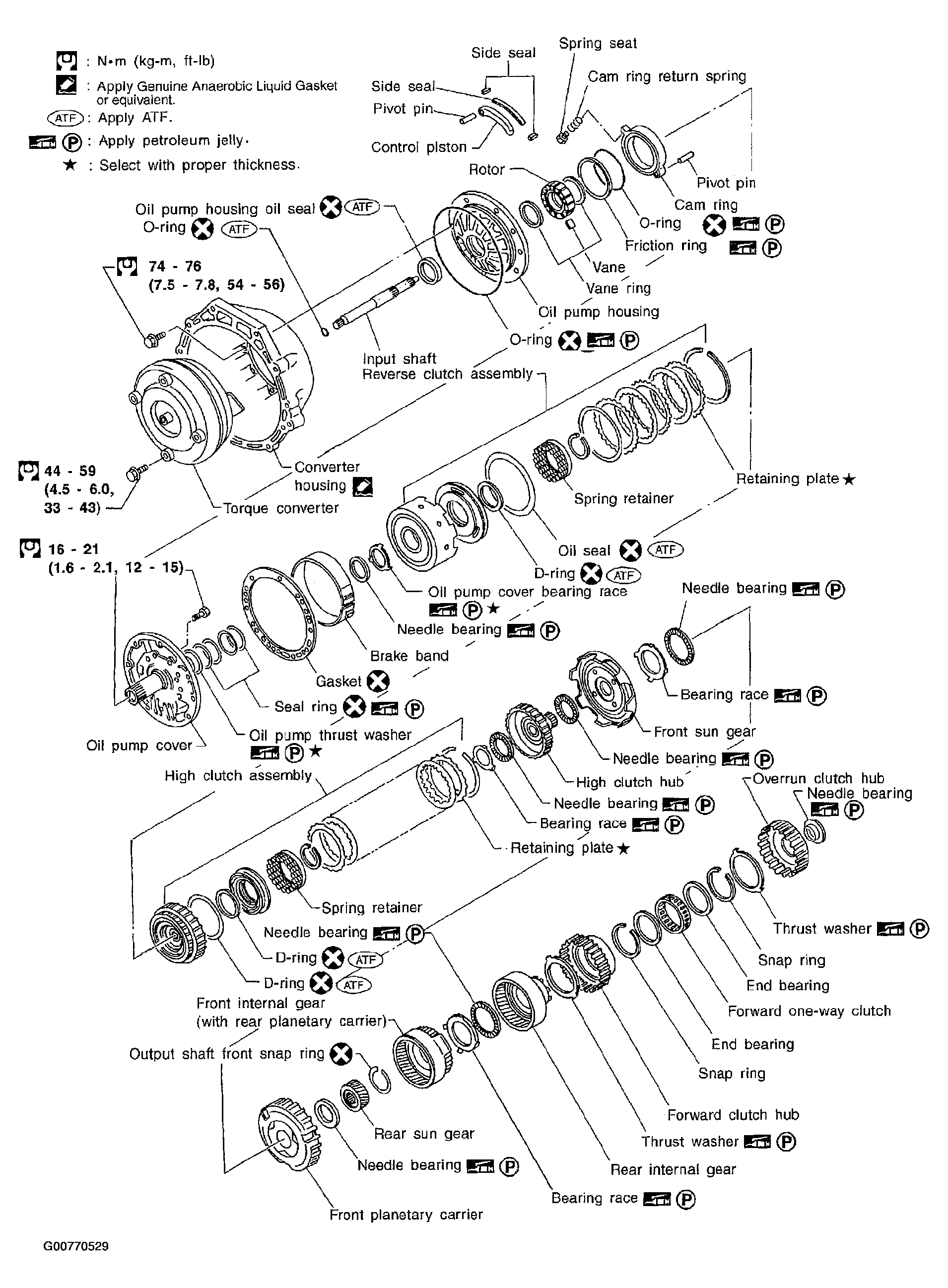

Fig 2: Exploded View Of Transmission Components Including Torque Specs (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
