Power Transmission

"N" and "P" Positions

"N" position
No control members operate. Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.
"P" position
Similar to the "N" position, no control members operate. The parking pawl interconnected with the select lever engages with the parking gear to mechanically hold the output shaft so that the powertrain is locked.

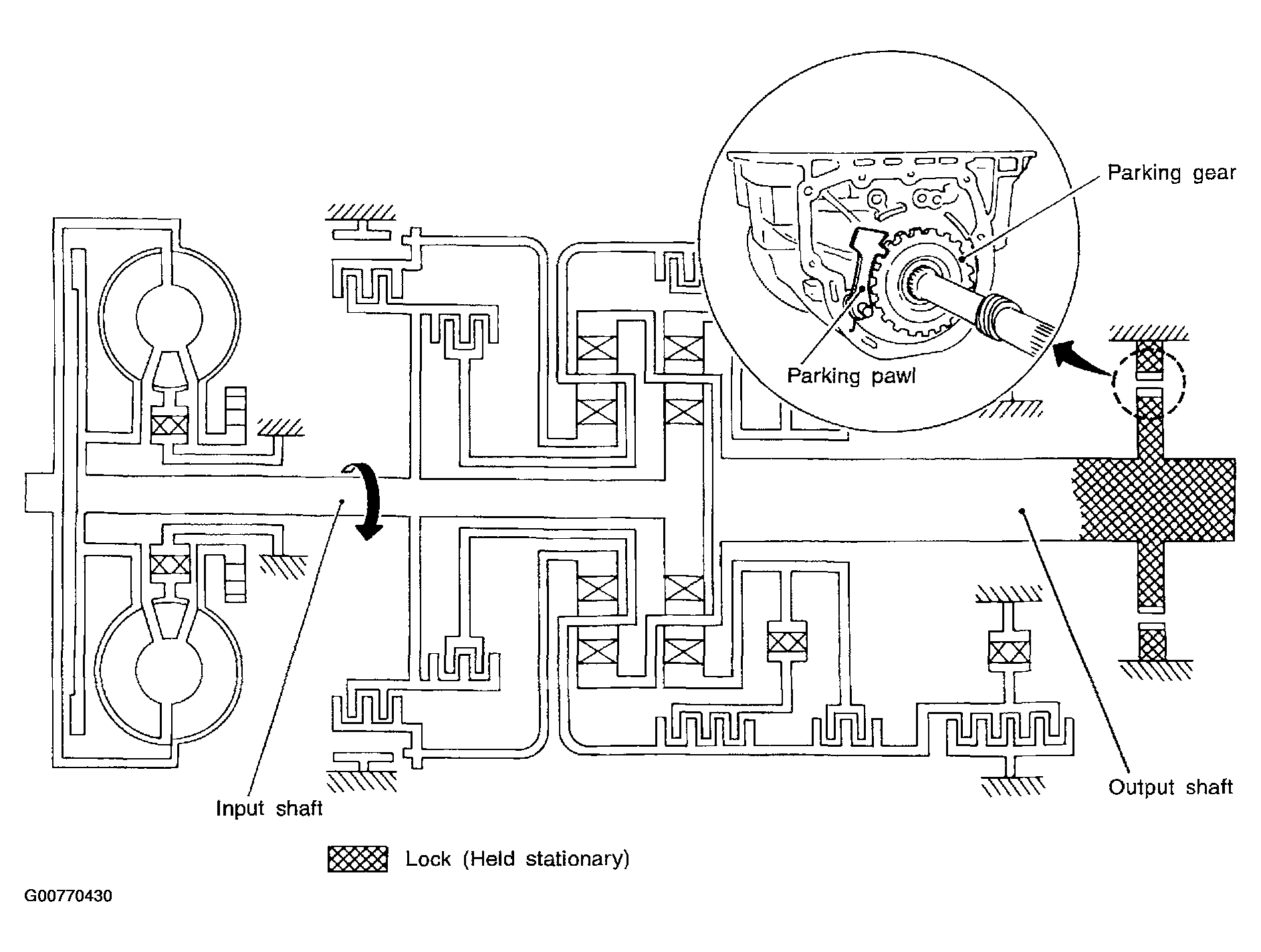

Fig 1: Identifying Power Transmission

G00770430

Courtesy of NISSAN MOTOR CO., U.S.A.

"1 ₁ " Position

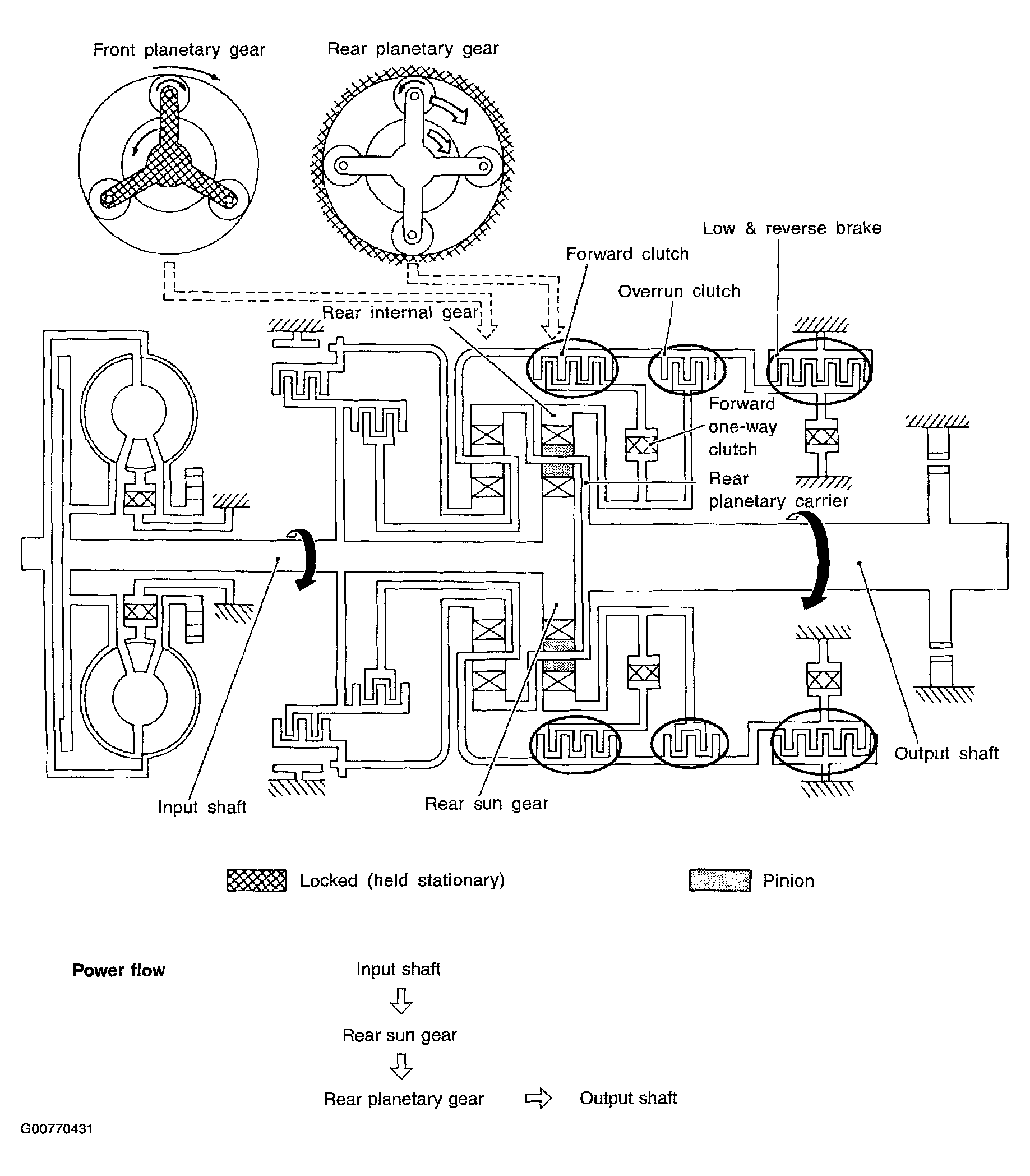

Fig 2: Power Transmission "11" Position

G00770431

Courtesy of NISSAN MOTOR CO., U.S.A.

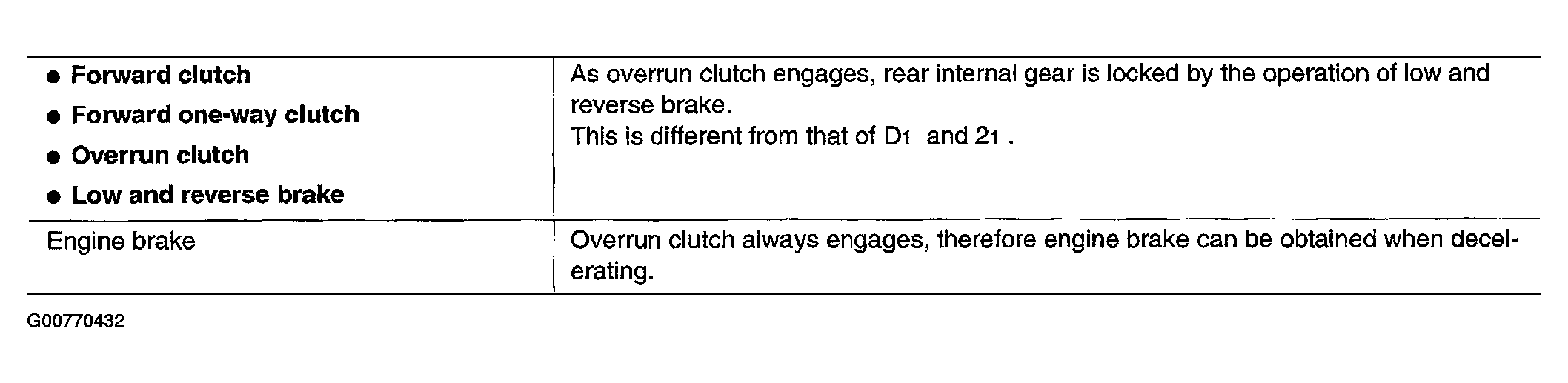

Fig 3: Power Transmission Reference Chart

G00770432

Courtesy of NISSAN MOTOR CO., U.S.A.

"D ₁ " and "2 ₁ " Positions

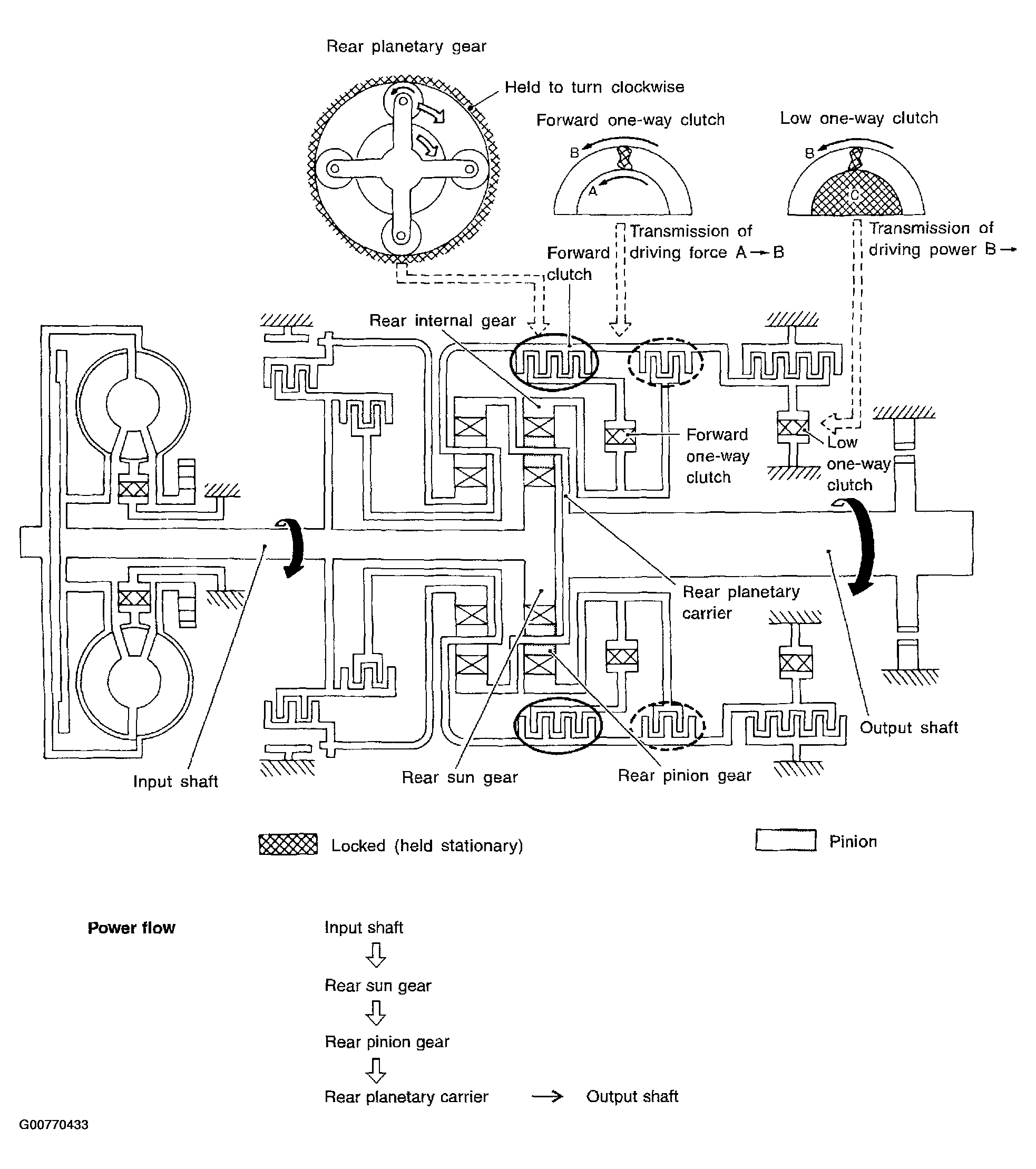

Fig 4: Power Transmission "D1" and "2₁ " Positions

G00770433

Courtesy of NISSAN MOTOR CO., U.S.A.

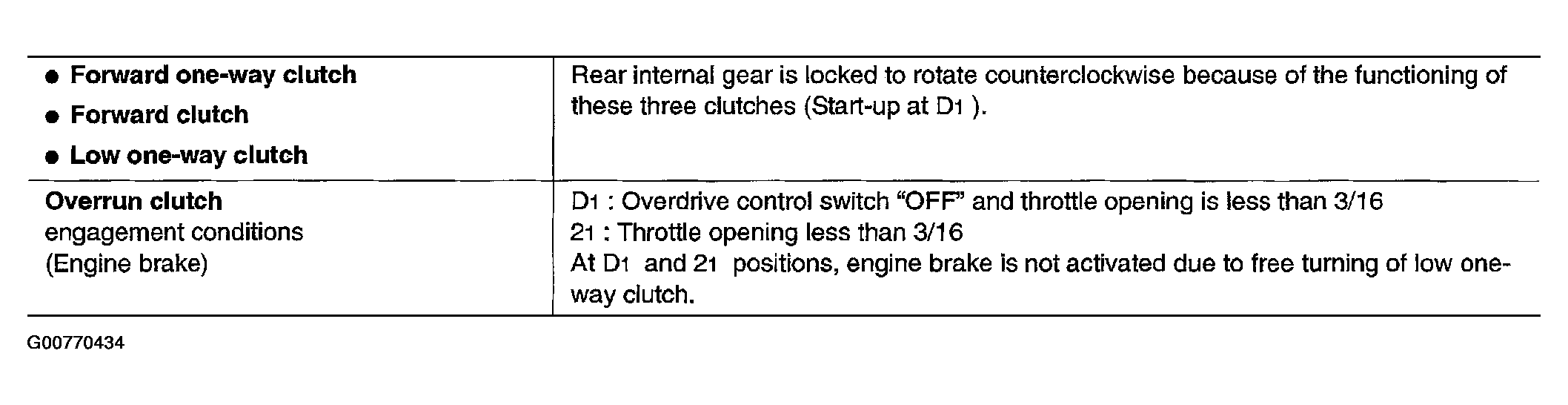

Fig 5: Power Transmission Reference Chart

G00770434

Courtesy of NISSAN MOTOR CO., U.S.A.

"D ₂ ", "2 ₂ " and "1 ₂ " Positions

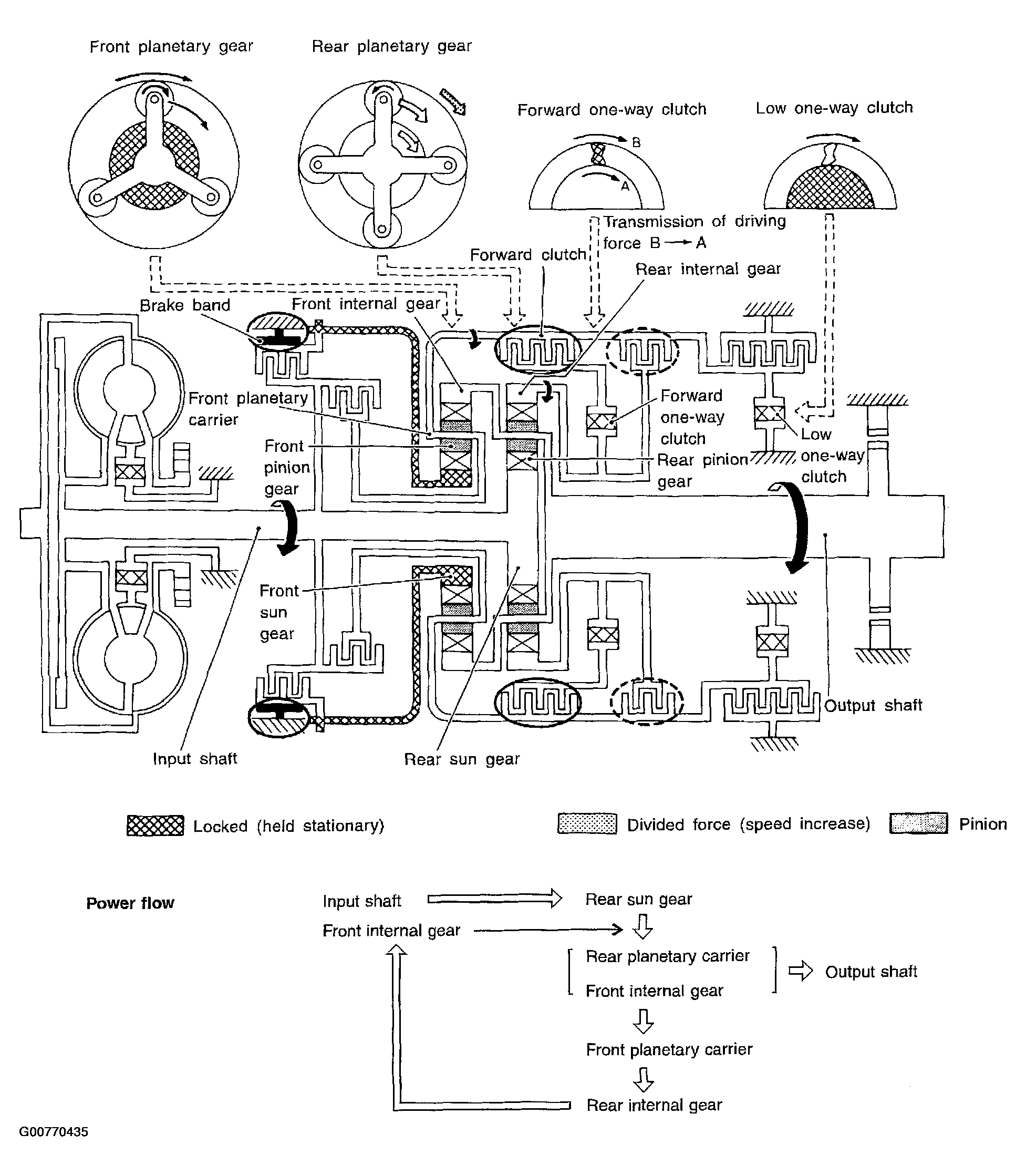

Fig 6: Power Transmission "D2", "2₂ " and "1₂ " Positions

G00770435

Courtesy of NISSAN MOTOR CO., U.S.A.

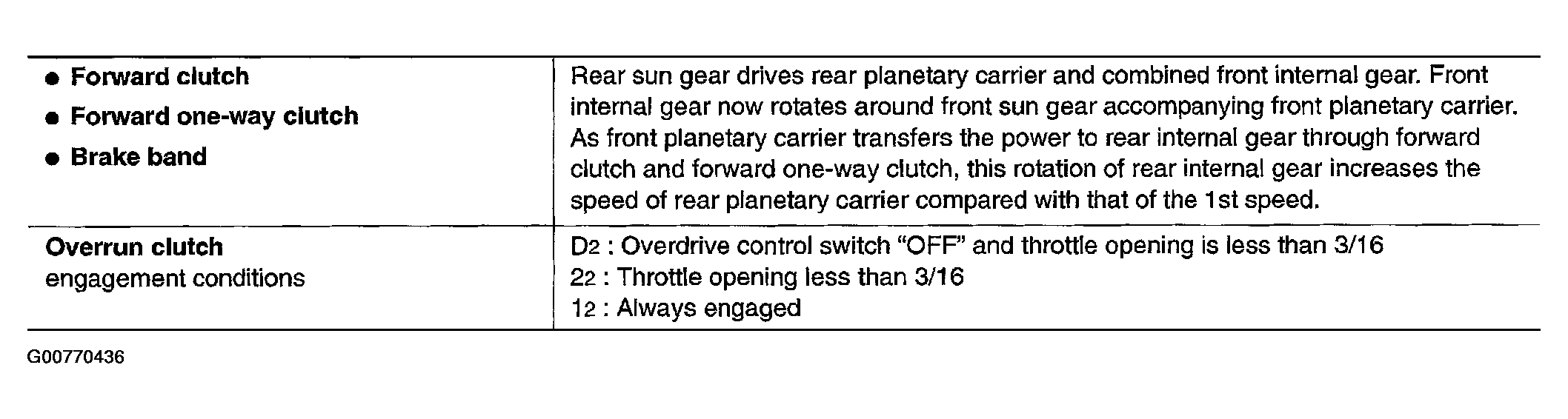

Fig 7: Power Transmission Reference Chart

G00770436

Courtesy of NISSAN MOTOR CO., U.S.A.

"D ₃ " Position

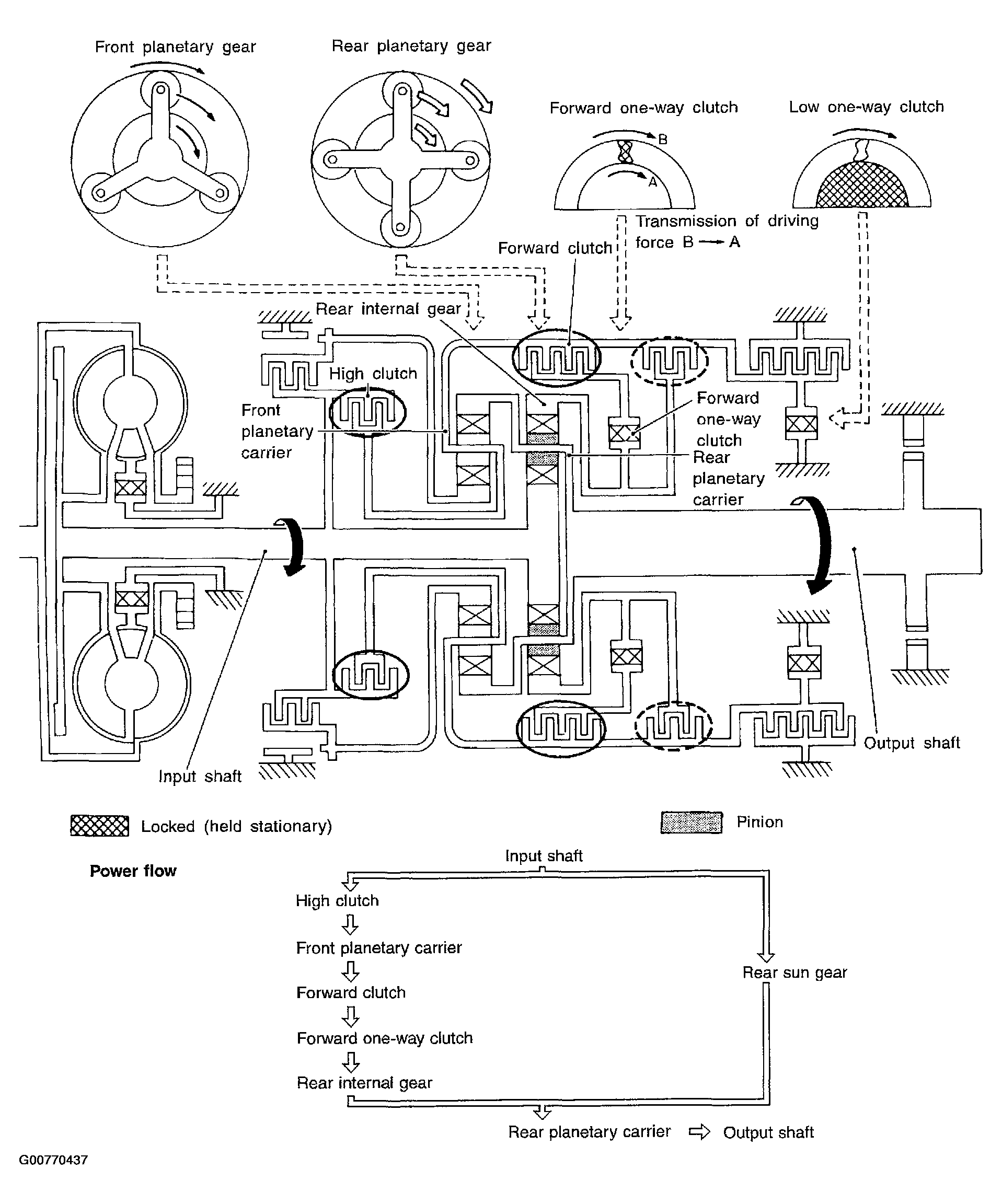

Fig 8: Power Transmission "D3" Position

G00770437

Courtesy of NISSAN MOTOR CO., U.S.A.

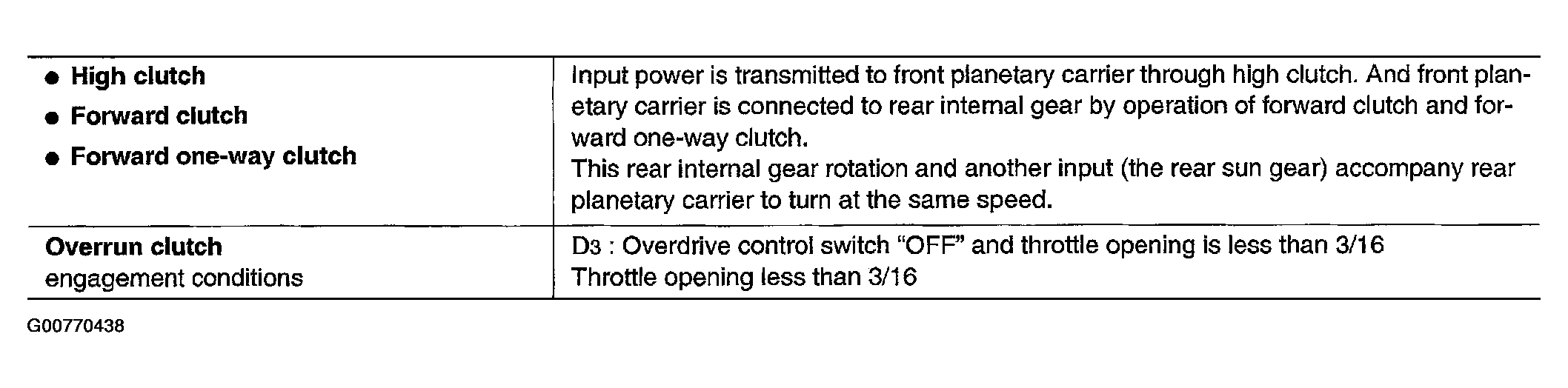

Fig 9: Power Transmission Reference Chart

G00770438

Courtesy of NISSAN MOTOR CO., U.S.A.

"D ₄ " (O/D) Position

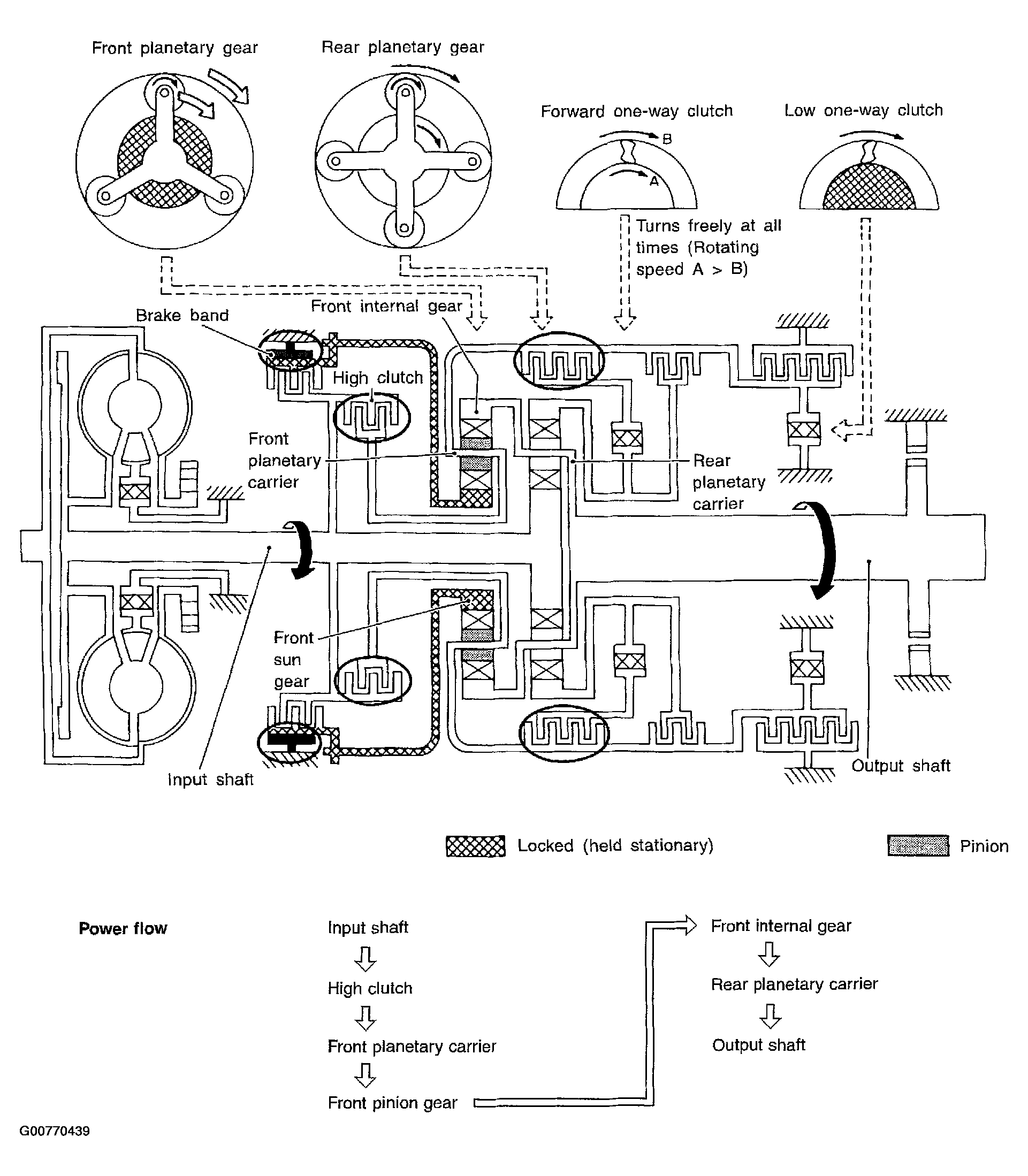

Fig 10: Power Transmission "D4" (O/D) Position

G00770439

Courtesy of NISSAN MOTOR CO., U.S.A.

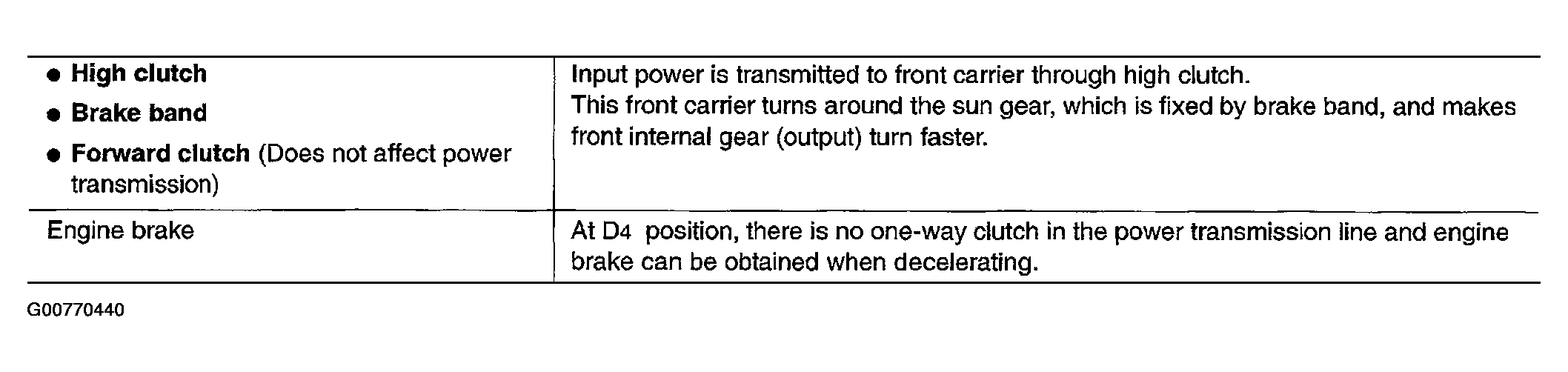

Fig 11: Power Transmission Reference Chart

G00770440

Courtesy of NISSAN MOTOR CO., U.S.A.

"R" Position

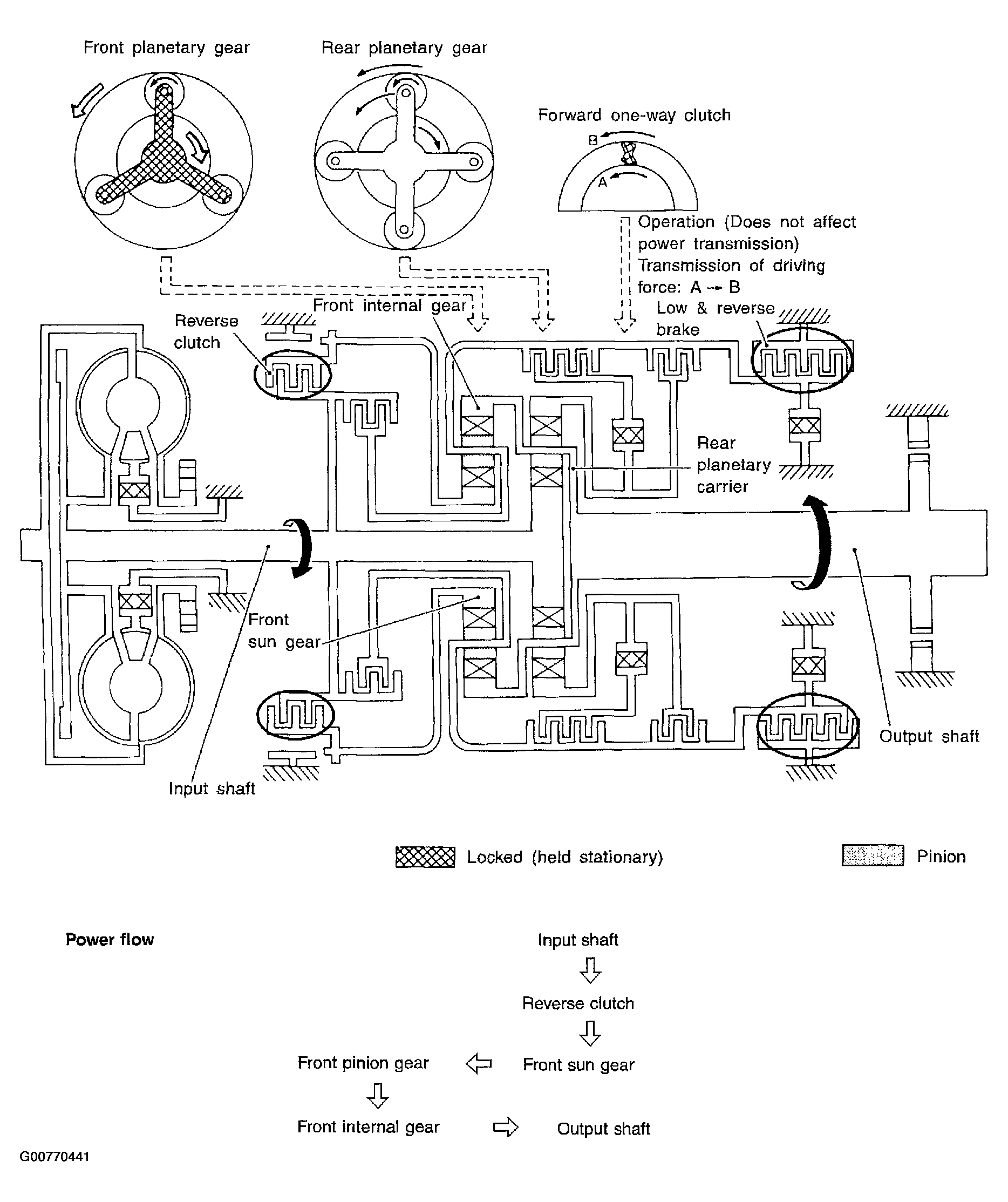

Fig 12: Power Transmission "R" Position

G00770441

Courtesy of NISSAN MOTOR CO., U.S.A.

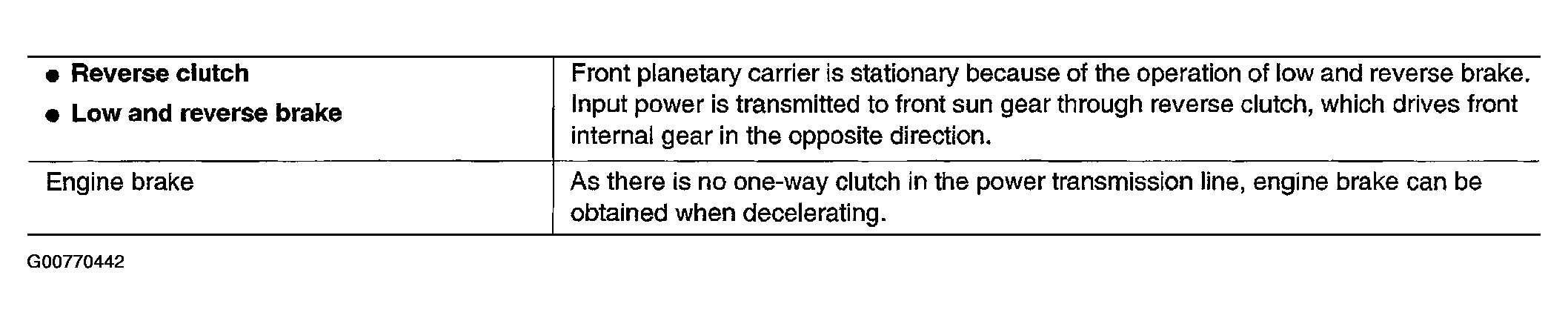

Fig 13: Power Transmission Reference Chart

G00770442

Courtesy of NISSAN MOTOR CO., U.S.A.
