Home >> Nissan-Datsun >> 2004 >> Frontier Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - RL4R01A >> High Clutch >> Components

High Clutch: Components

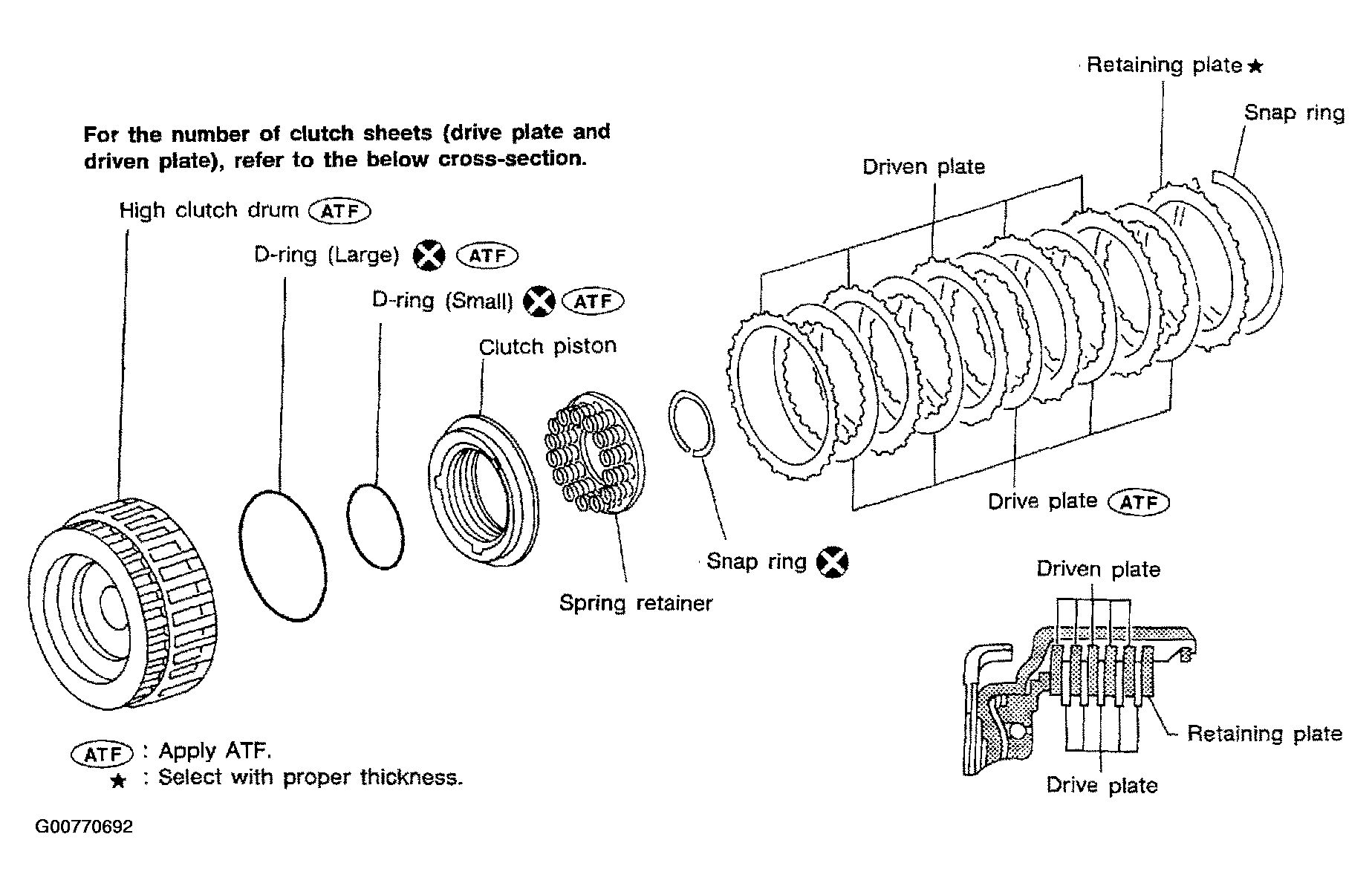

Fig 1: Exploded View Of High Clutch

G00770692

Courtesy of NISSAN MOTOR CO., U.S.A.
