Control Valve Upper Body: Disassembly

1. Remove valves at parallel pins.
   • Do not use a magnetic pick-up tool.

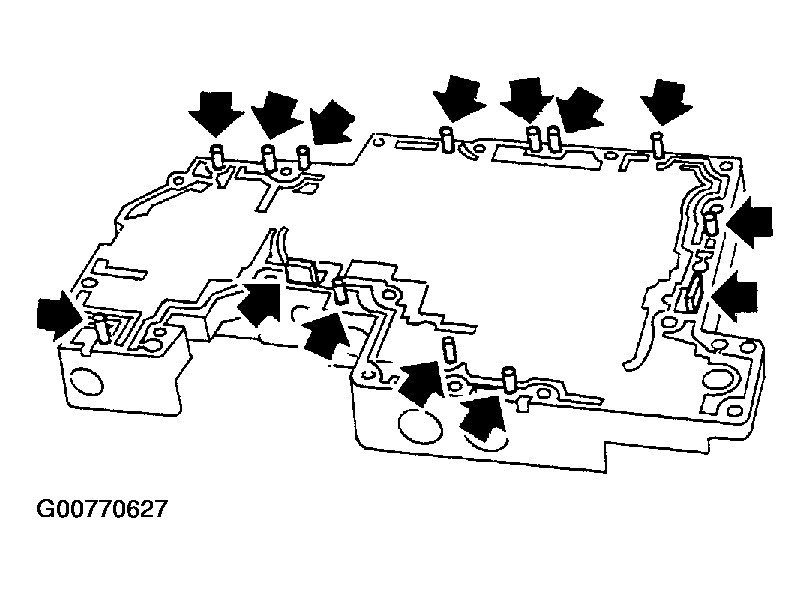

   Fig 1: Removing Valves At Parallel Pins

   Courtesy of NISSAN MOTOR CO., U.S.A.

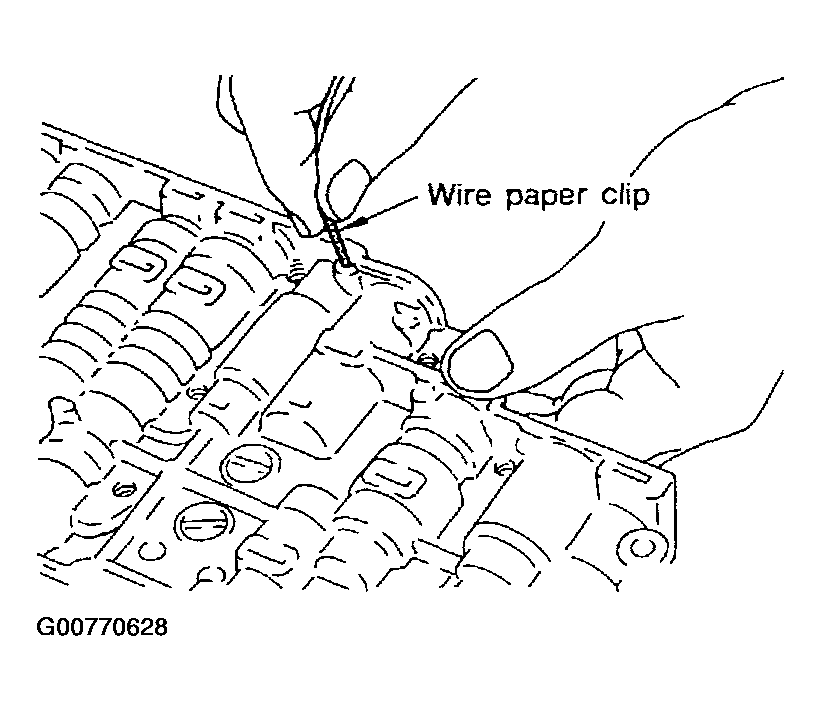

   1. Use a wire paper clip to push out parallel pins.
      Fig 2: Identifying Wire Paper Clip

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Remove parallel pins while pressing their corresponding plugs and sleeves.
      • Remove plug slowly to prevent internal parts from jumping out.

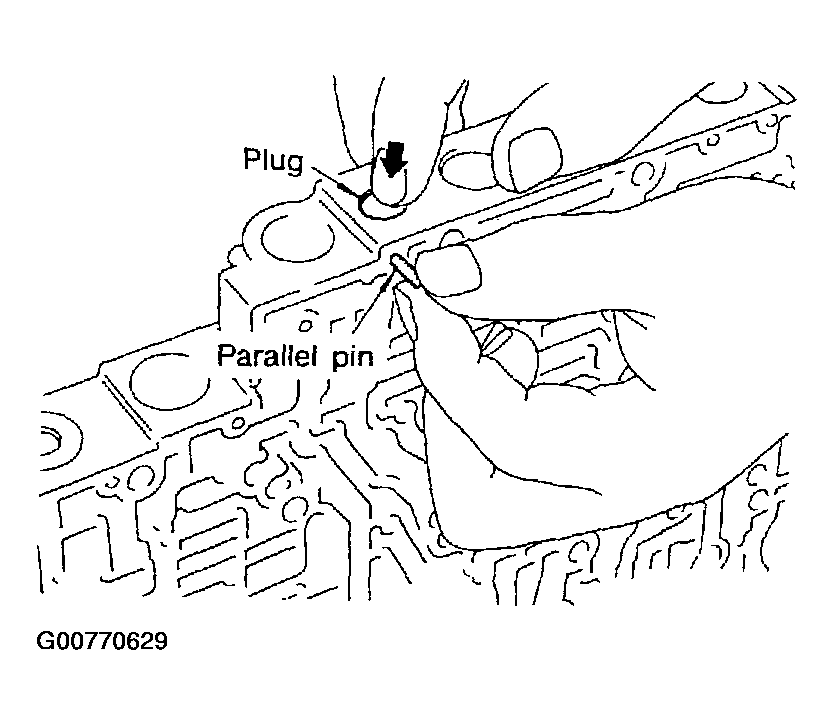

      Fig 3: Removing Parallel Pins

      Courtesy of NISSAN MOTOR CO., U.S.A.
   3. Place mating surface of valve facedown, and remove internal parts.
      • If a valve is hard to remove, place valve body facedown and lightly tap it with a soft hammer.
      • Be careful not to drop or damage valves and sleeves.

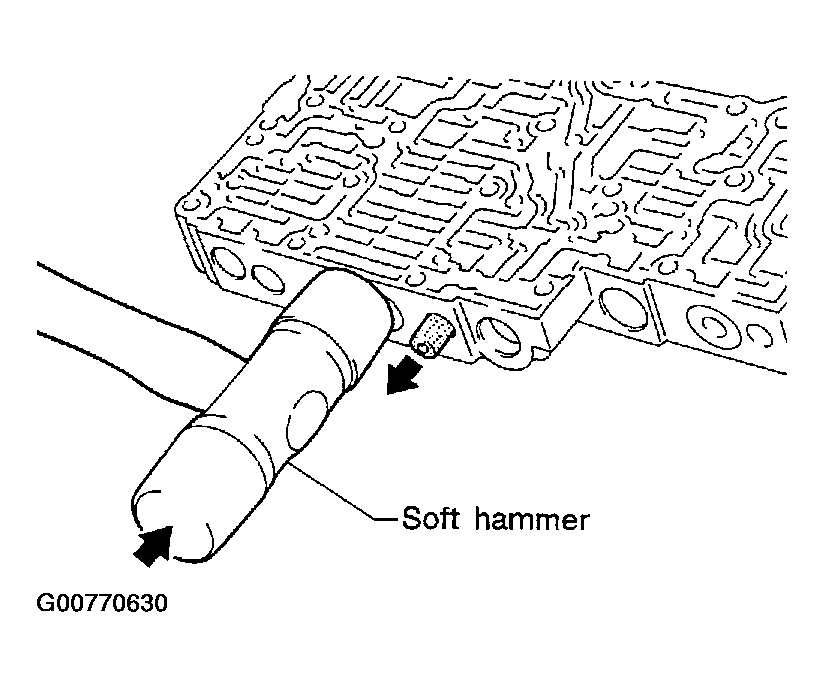

   Fig 4: Placing Mating Surface Of Valve Facedown

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove valves at retainer plates.

1. Pry out retainer plate with wire paper clip.

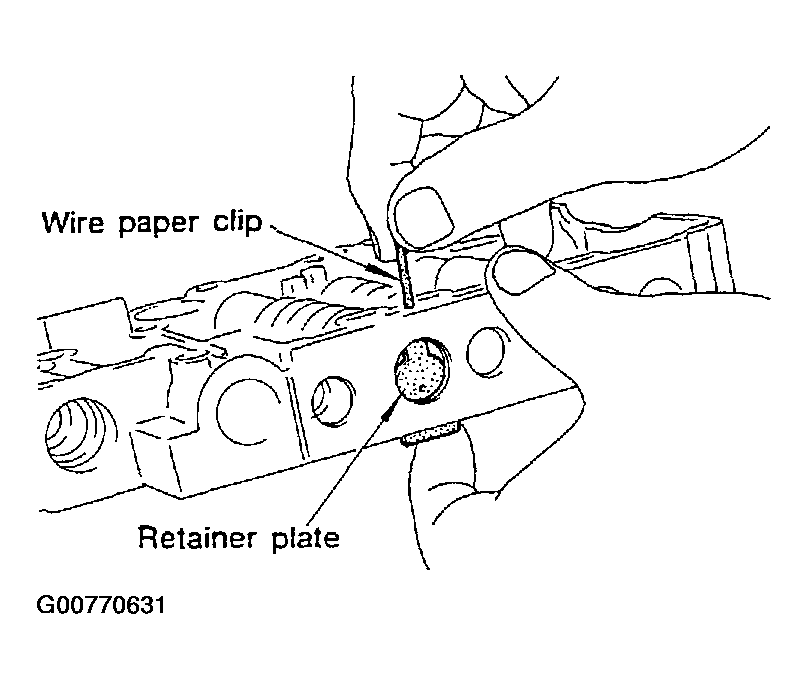

   Fig 5: Removing Retainer Plate With Wire Paper Clip

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove retainer plates while holding spring.

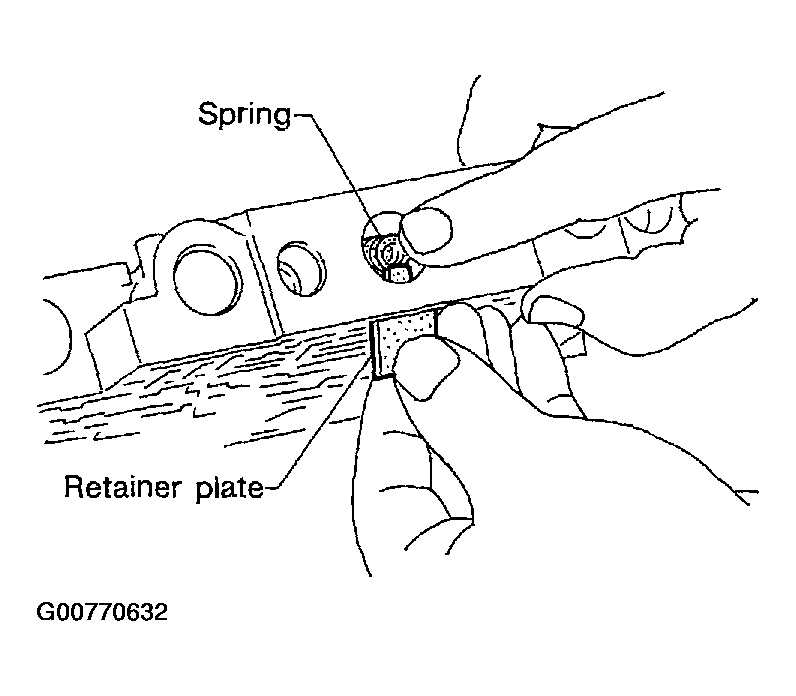

   Fig 6: Removing Retainer Plates While Holding Spring

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Place mating surface of valve facedown, and remove internal parts.
   • If a valve is hard to remove, lightly tap valve body with a soft hammer.
   • Be careful not to drop or damage valves, sleeves, etc.

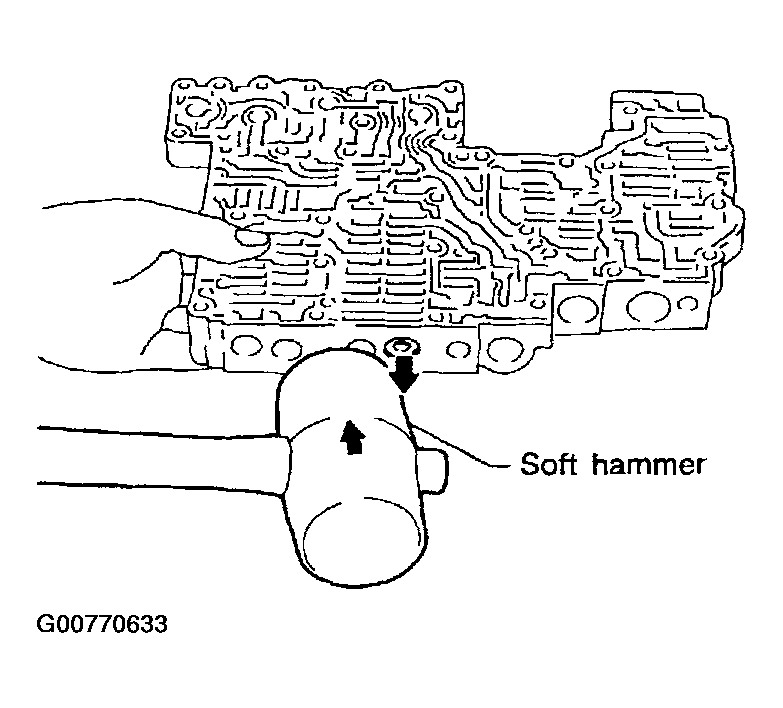

Fig 7: Placing Mating Surface Of Valve Facedown

Courtesy of NISSAN MOTOR CO., U.S.A.
