Control Valve Upper Body: Assembly: Notes

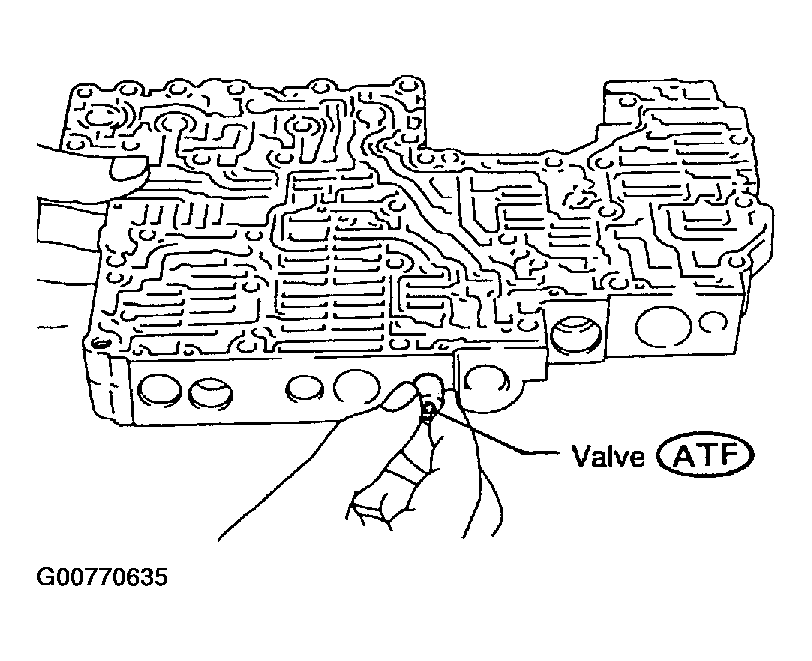

1. Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
   • Be careful not to scratch or damage valve body.
     Fig 1: Installing Control Valves

     Courtesy of NISSAN MOTOR CO., U.S.A.

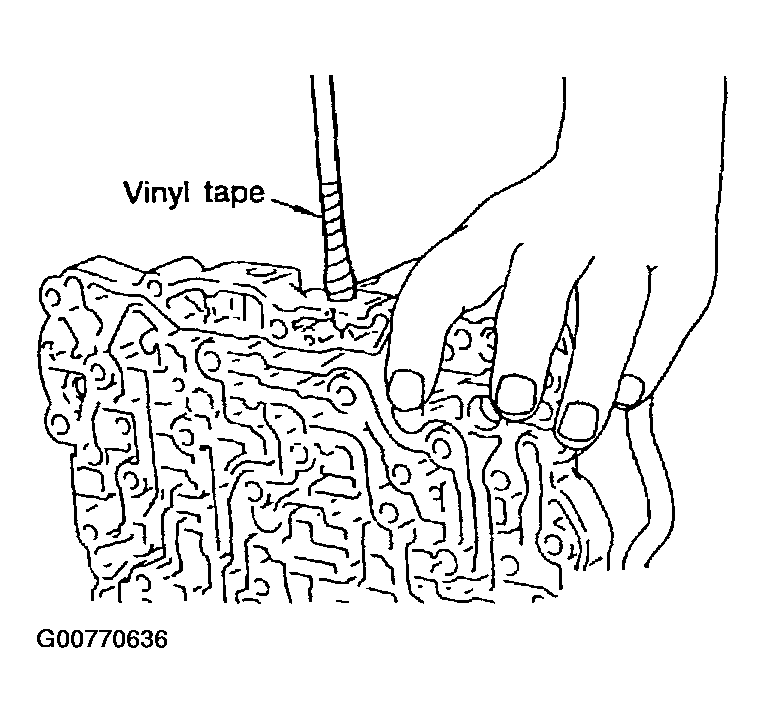

   • Wrap a small screwdriver with vinyl tape and use it to insert the valves into proper position.

Fig 2: Inserting Valves Into Proper Position

Courtesy of NISSAN MOTOR CO., U.S.A.
