Accumulator Control Plug

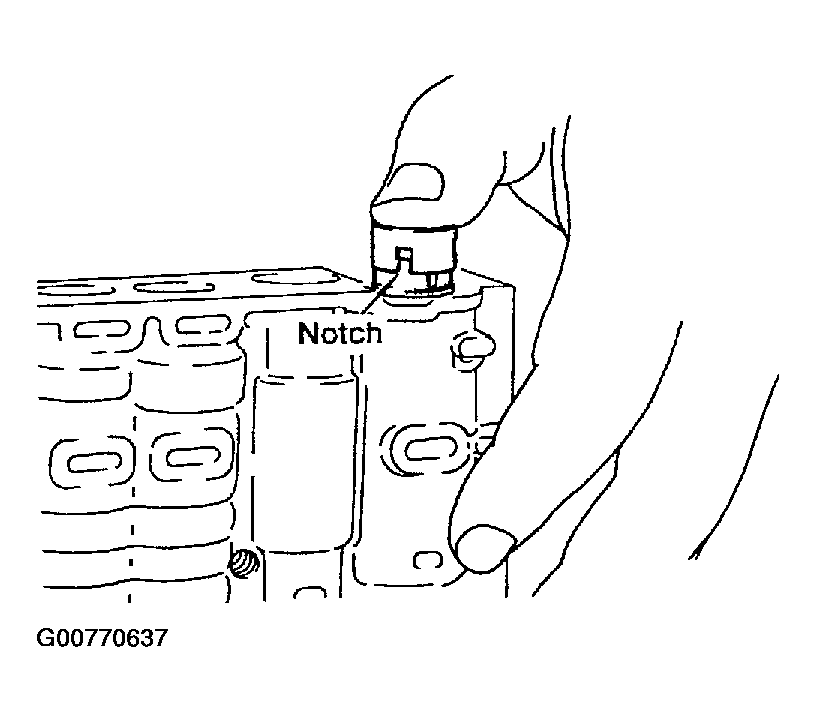

Fig 1: Aligning Parallel Pin Groove In Plug With Parallel Pin
G00770637Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Install parallel pins and retainer plates.

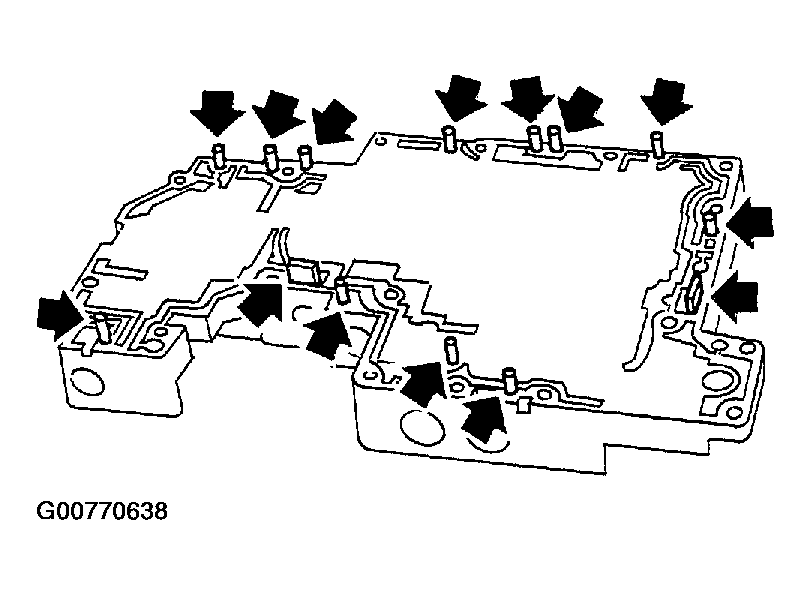

Fig 2: Installing Parallel Pins And Retainer Plates
G00770638Courtesy of NISSAN MOTOR CO., U.S.A.

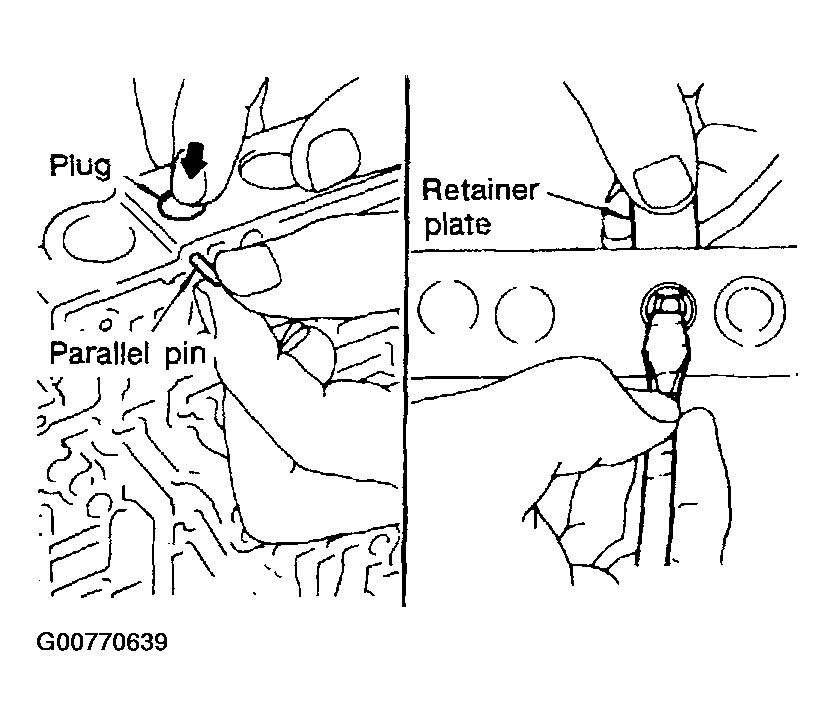

Fig 3: Inserting Retainer Plate
G00770639Courtesy of NISSAN MOTOR CO., U.S.A.
