Band Servo Piston Assembly: Assembly

1. Install O-rings onto servo piston retainer.
   • Apply ATF to O-rings.
   • Pay attention to position of each O-ring.

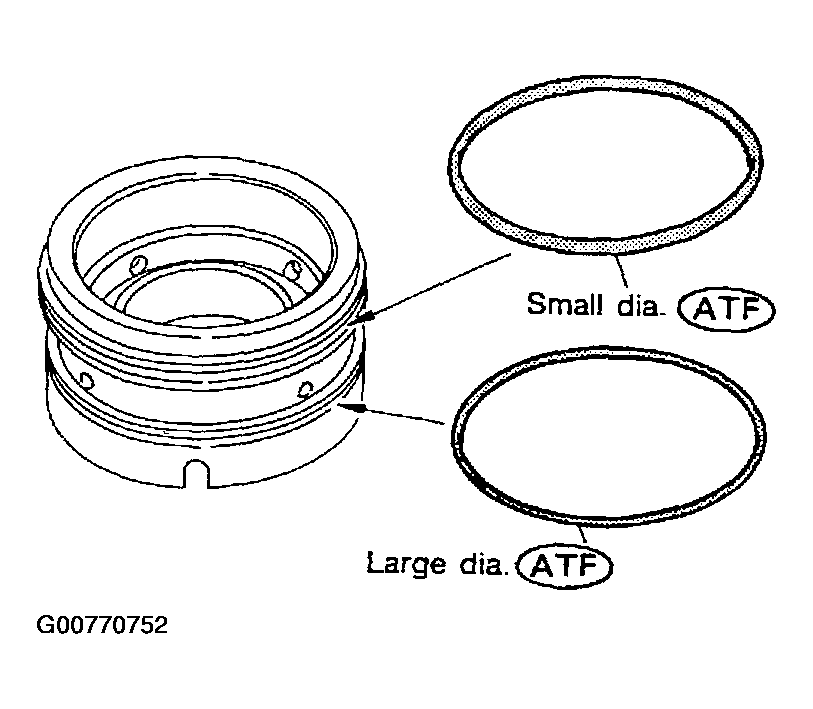

   Fig 1: Installing O-Rings Onto Servo Piston Retainer

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install servo cushion spring retainer onto band servo piston.

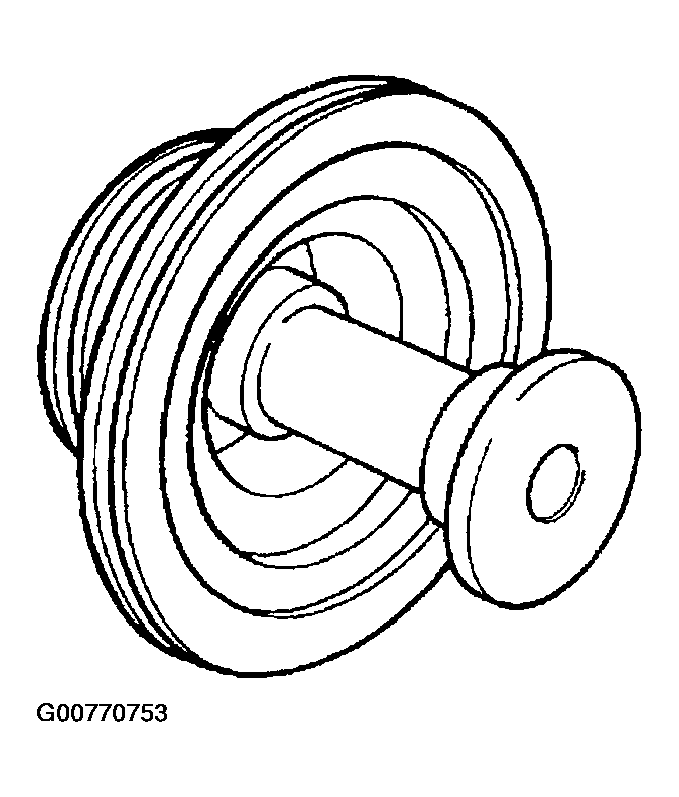

   Fig 2: Installing Servo Cushion Spring Retainer Onto Band Servo Piston

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install E-ring onto servo cushion spring retainer.
4. Install D-rings onto band servo piston.
   • Apply ATF to D-rings.

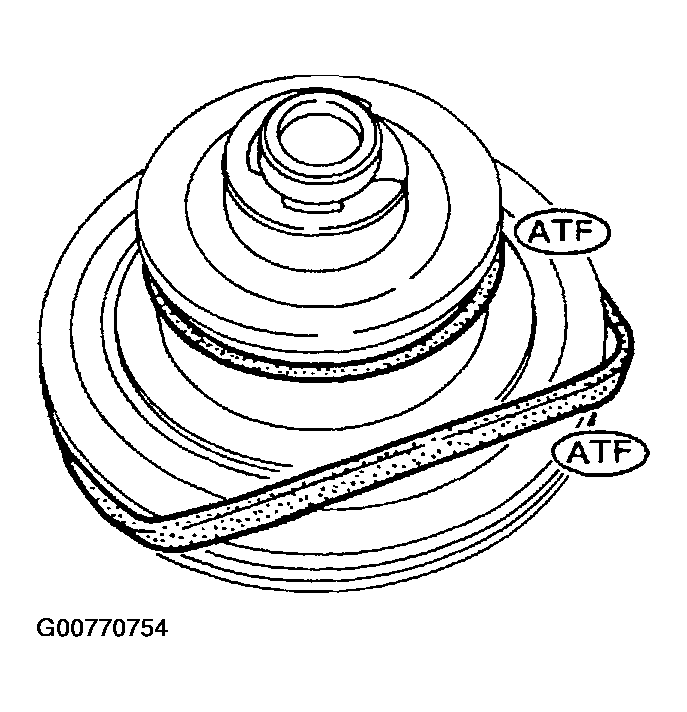

   Fig 3: Installing D-Rings Onto Band Servo Piston

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install servo piston spring retainer, return spring C and piston stem onto band servo piston.

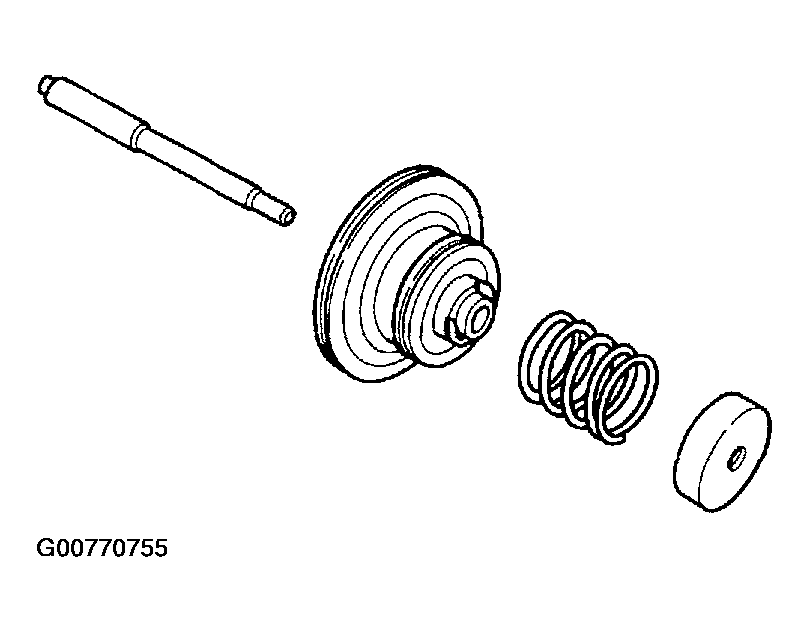

   Fig 4: Installing Servo Piston Spring Retainer, Return Spring C And Piston Stem Onto Band Servo Piston

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

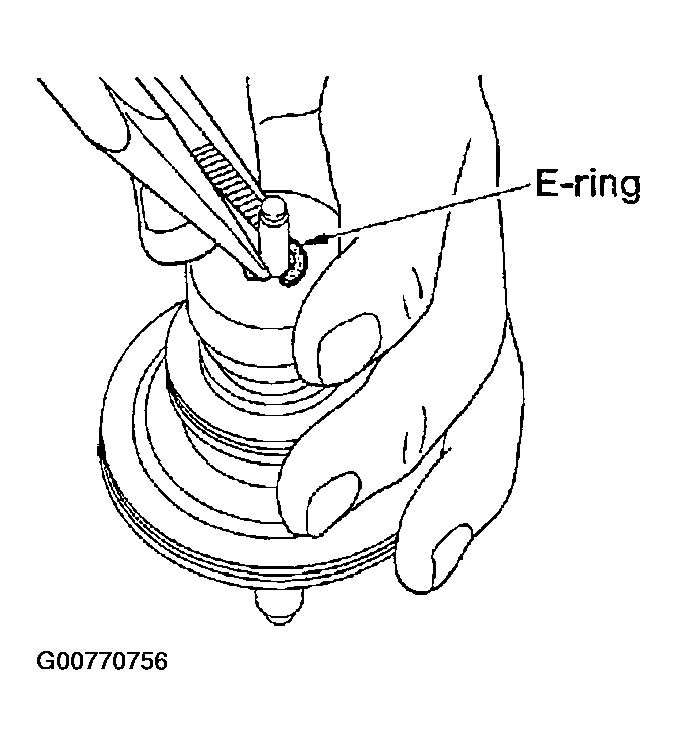

   Fig 5: Installing E-Ring

   Courtesy of NISSAN MOTOR CO., U.S.A.

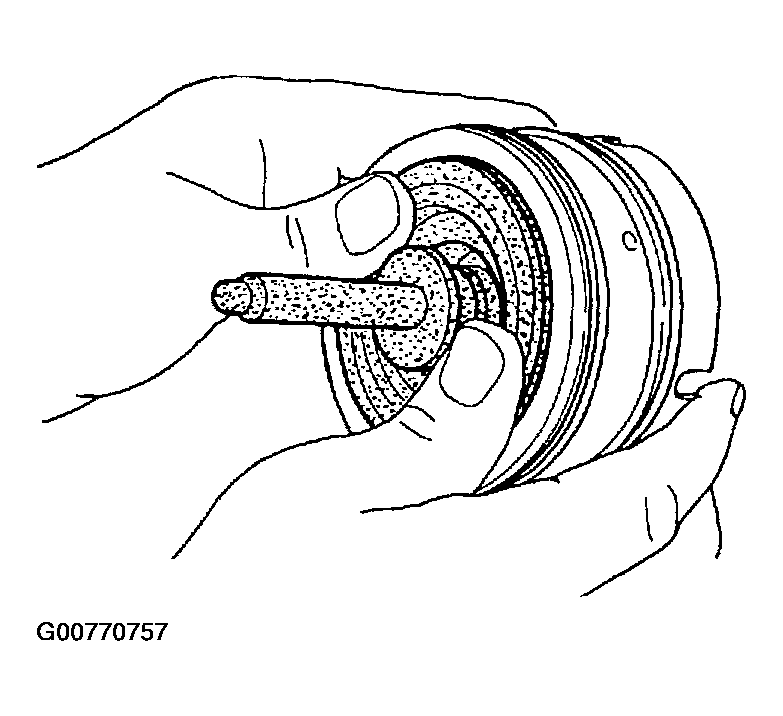

7. Install band servo piston assembly onto servo piston retainer by pushing it inward.
   Fig 6: Installing Band Servo Piston Assembly Onto Servo Piston Retainer

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Install D-ring on O/D band servo piston.
   • Apply ATF to D-ring.

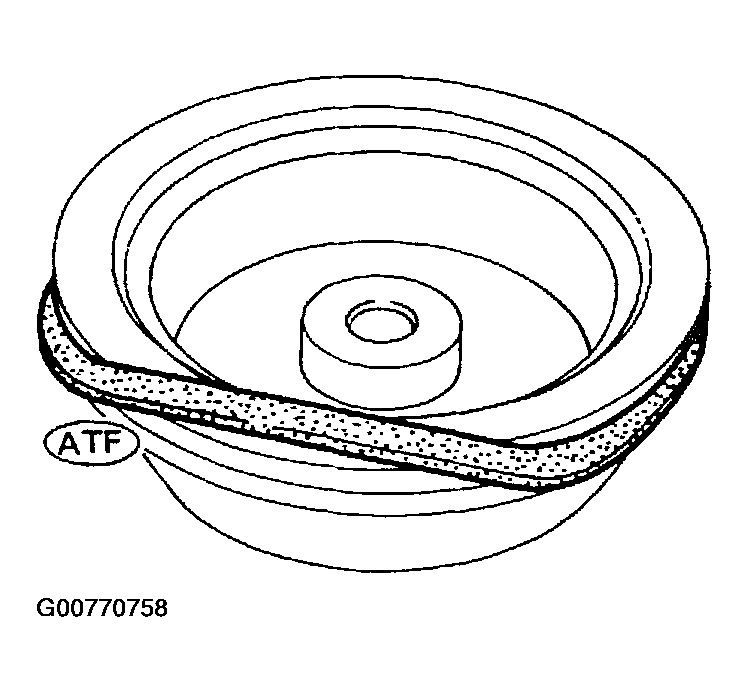

   Fig 7: Installing D-Ring On O/D Band Servo Piston

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install O/D band servo piston onto O/D servo piston retainer by pushing it inward.

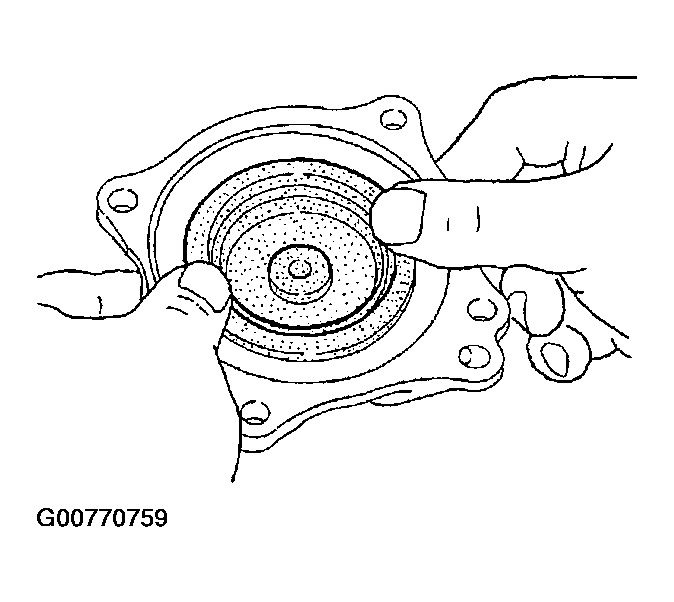

Fig 8: Installing O/D Band Servo Piston Onto O/D Servo Piston Retainer

Courtesy of NISSAN MOTOR CO., U.S.A.
