Shift Lock System Electrical Parts Location

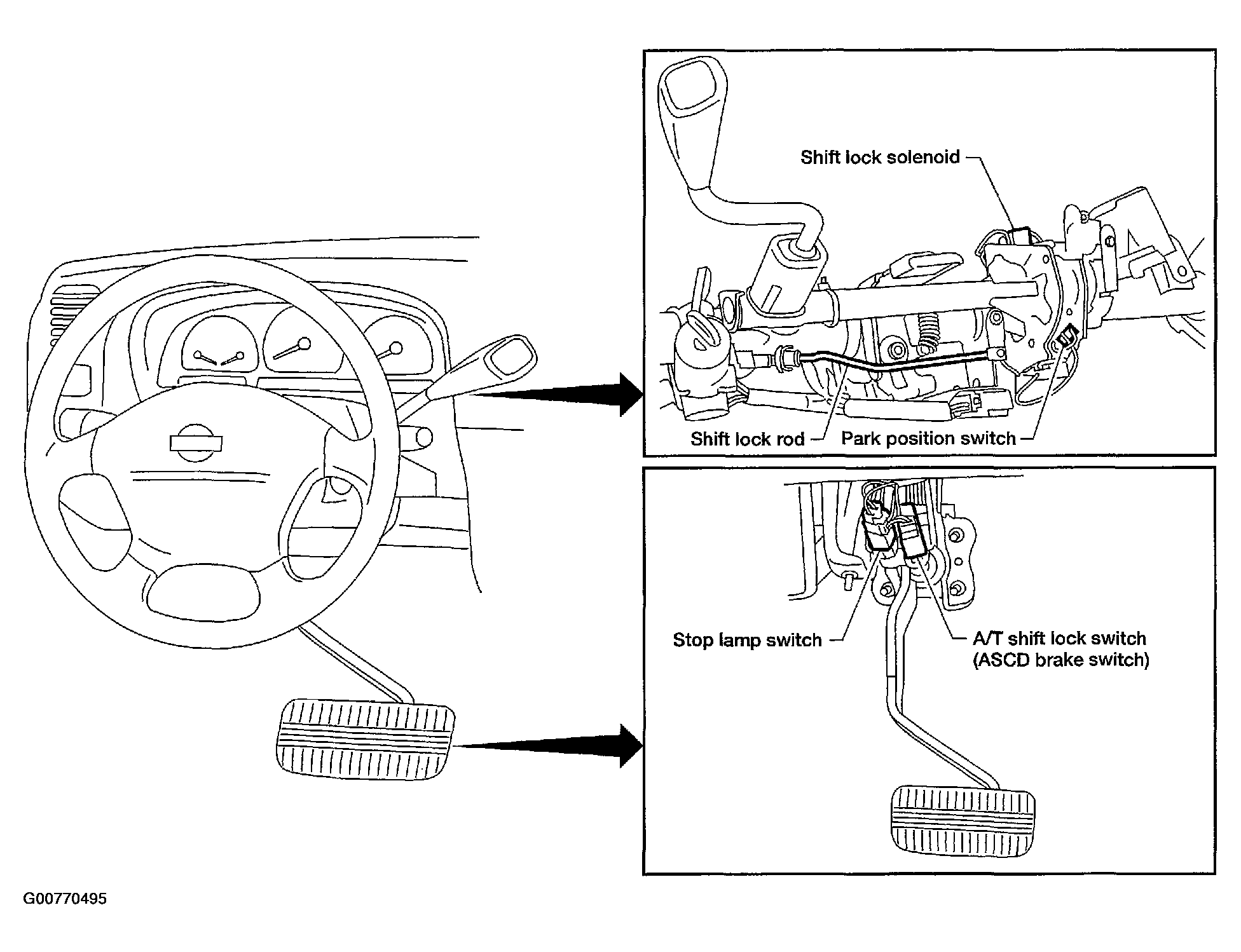

Fig 1: Identifying Shift Lock System Electrical Parts

G00770495

Courtesy of NISSAN MOTOR CO., U.S.A.
