Pre-disassembly Inspection

Disassemble the power steering oil pump only if the following items are found.

• Oil leak from any point shown in Fig 1.
• Deformed or damaged pulley.
• Poor performance.

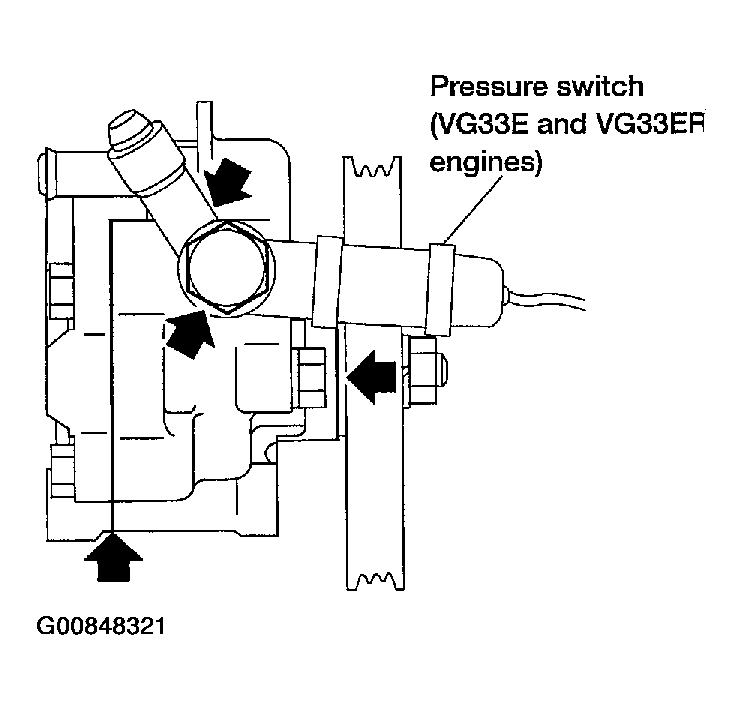

  Fig 1: Disassembling Power Steering Oil Pump

  Courtesy of NISSAN MOTOR CO., U.S.A.
