Repair For Component Parts: Mainshaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

Check front drive sprocket end play using a dial gauge, as shown in Fig 1.
1. Standard : 0.2 - 0.35 mm (0.0079 - 0.0138 in)
- If end play is not within specification, check front drive sprocket and clutch gear for wear.

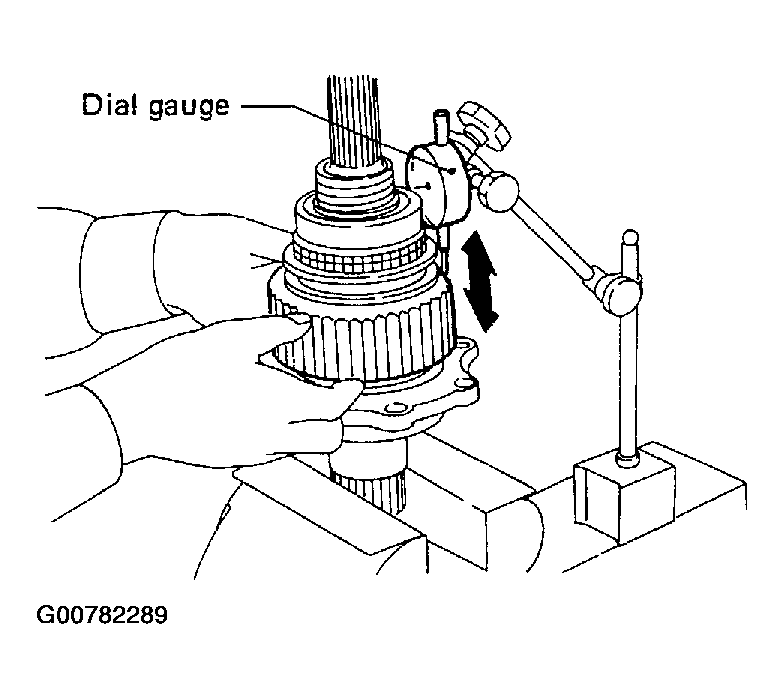

Fig 1: Checking Front Drive Sprocket End Play Using Dial Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retainer ring, speedometer drive gear and steel ball.
- Be careful not to lose the steel ball.

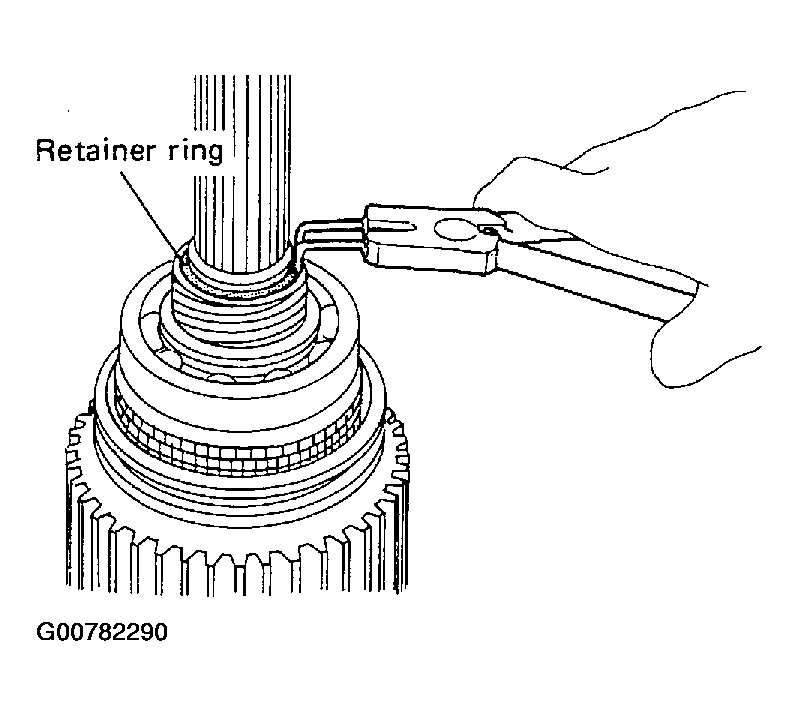

Fig 2: Removing Retainer Ring, Speedometer Drive Gear And Steel Ball
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring and spacer.

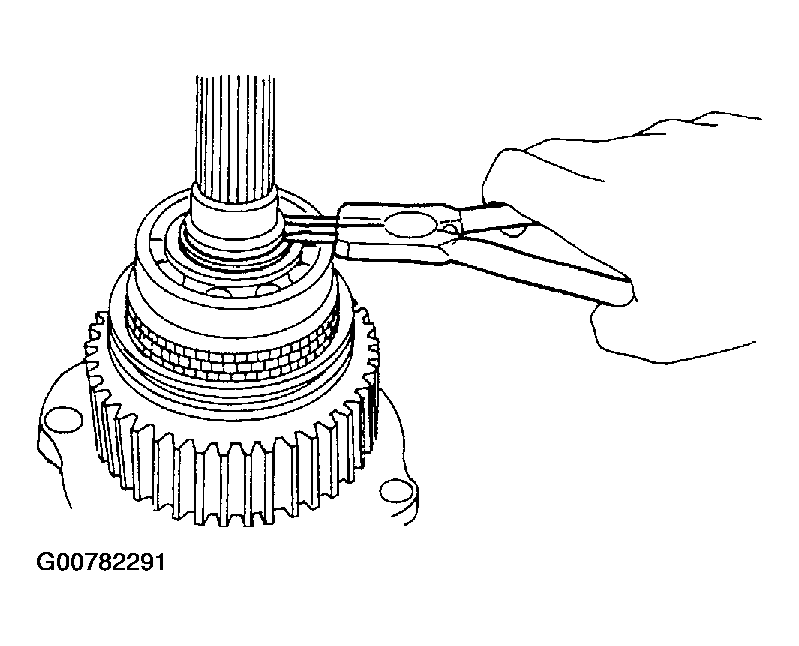

Fig 3: Removing Snap Ring And Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
Use a press to remove front drive sprocket with mainshaft rear bearing and clutch gear together.
Remove needle bearing.

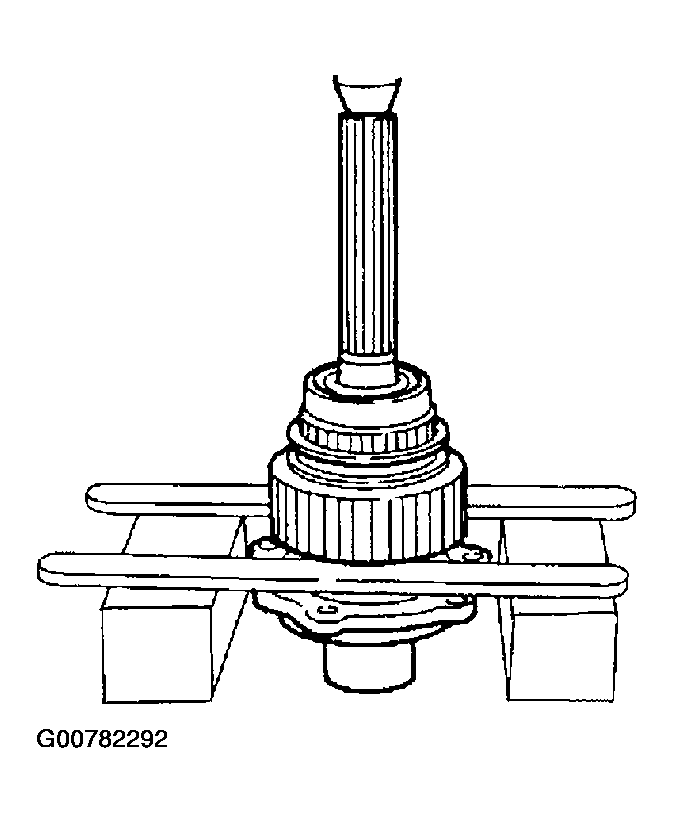

Fig 4: Removing Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing retainer and then remove snap ring.

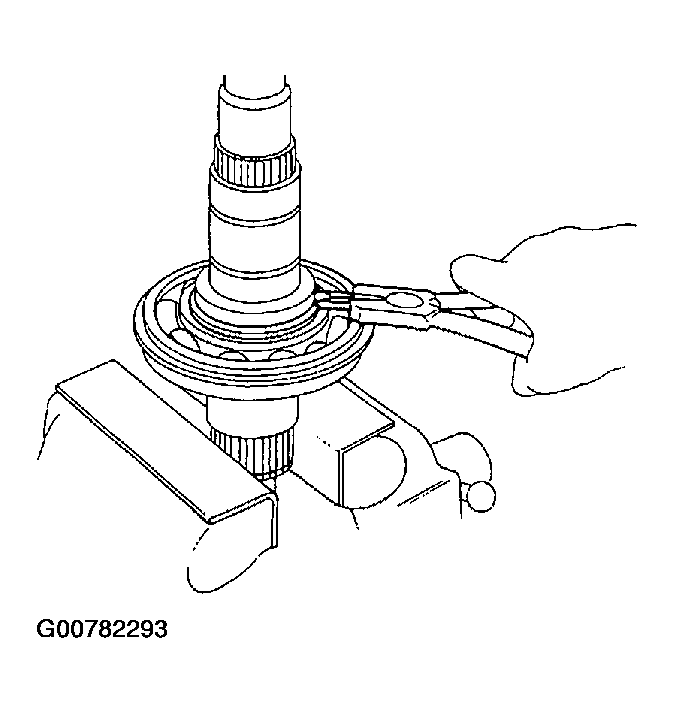

Fig 5: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Use a press to remove mainshaft front bearing from mainshaft.

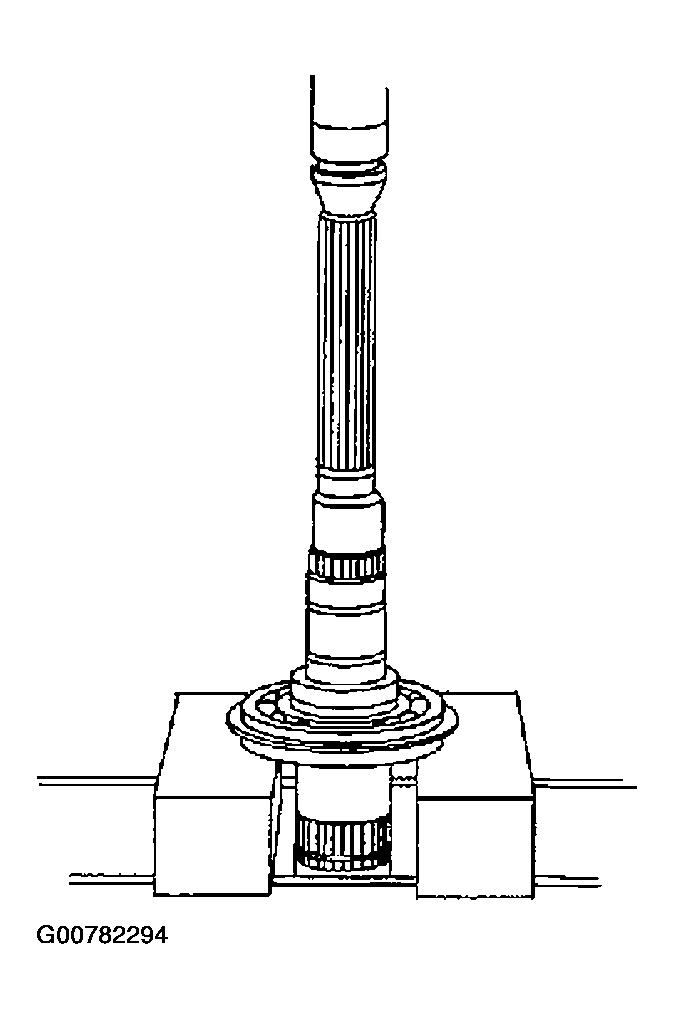

Fig 6: Removing Mainshaft Front Bearing From Mainshaft
Courtesy of NISSAN MOTOR CO., U.S.A.
