Front Drive Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.

Press front drive shaft front and rear bearings onto front drive shaft.

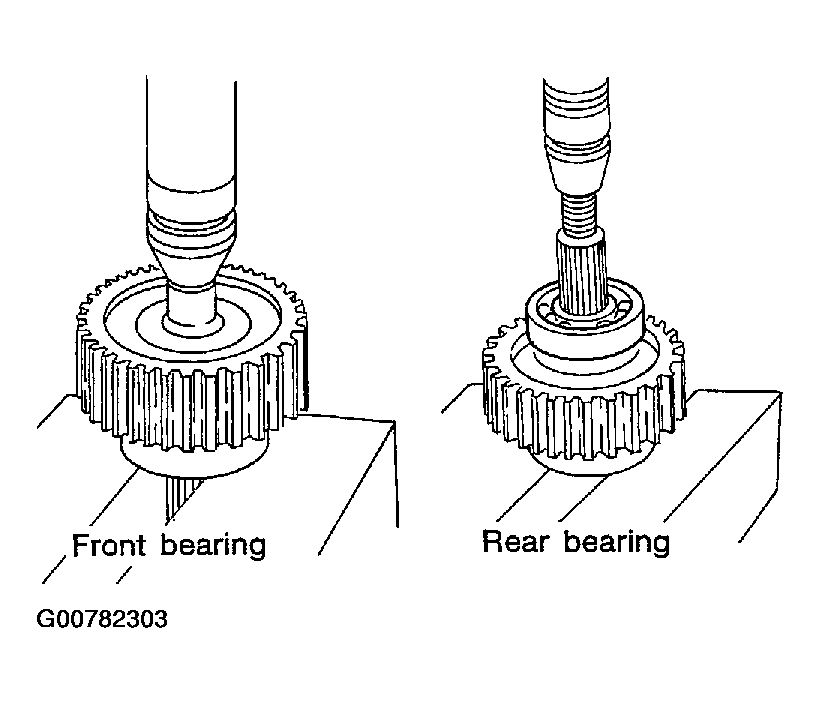

Fig 1: Pressing Front Drive Shaft Front And Rear Bearings Onto Front Drive Shaft
G00782303Courtesy of NISSAN MOTOR CO., U.S.A.
