System - Basic Engine Control System

WARNING: This page is about a different variant/trim than selected.

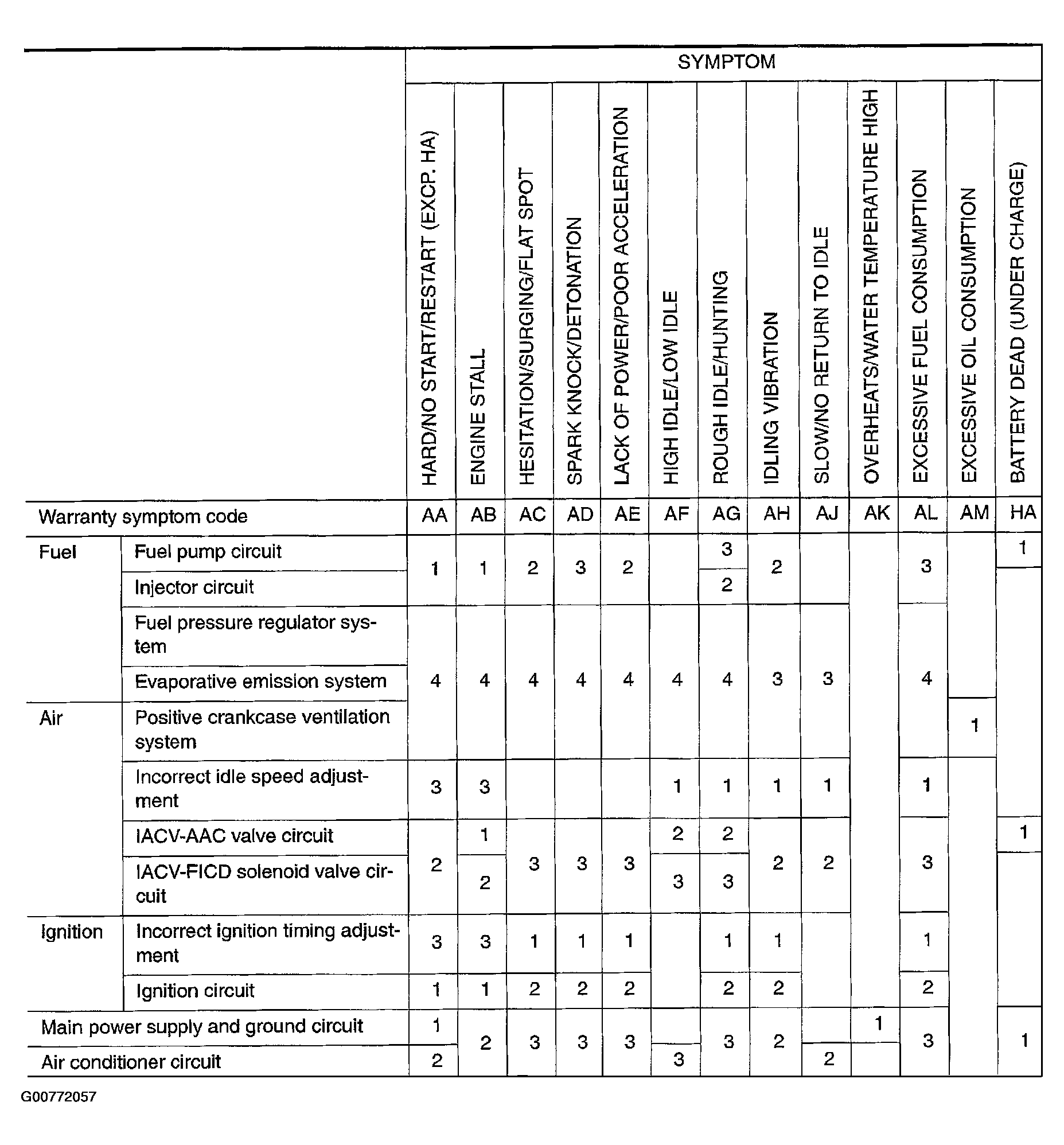

Fig 1: Symptom Matrix Chart (1 Of 2)
G00772057Courtesy of NISSAN MOTOR CO., U.S.A.

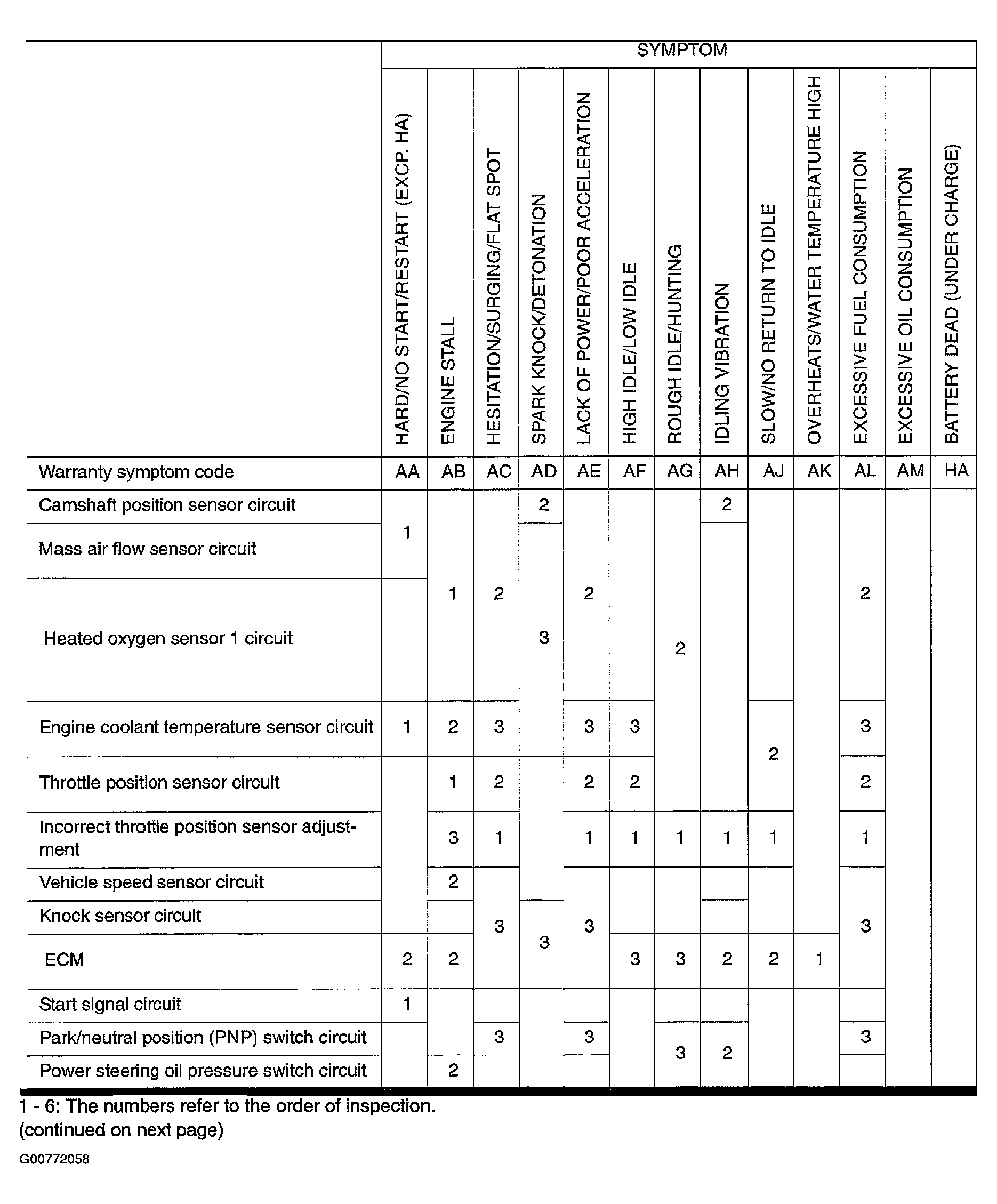

Fig 2: Symptom Matrix Chart (2 Of 2)
G00772058Courtesy of NISSAN MOTOR CO., U.S.A.
