Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different variant/trim than selected.

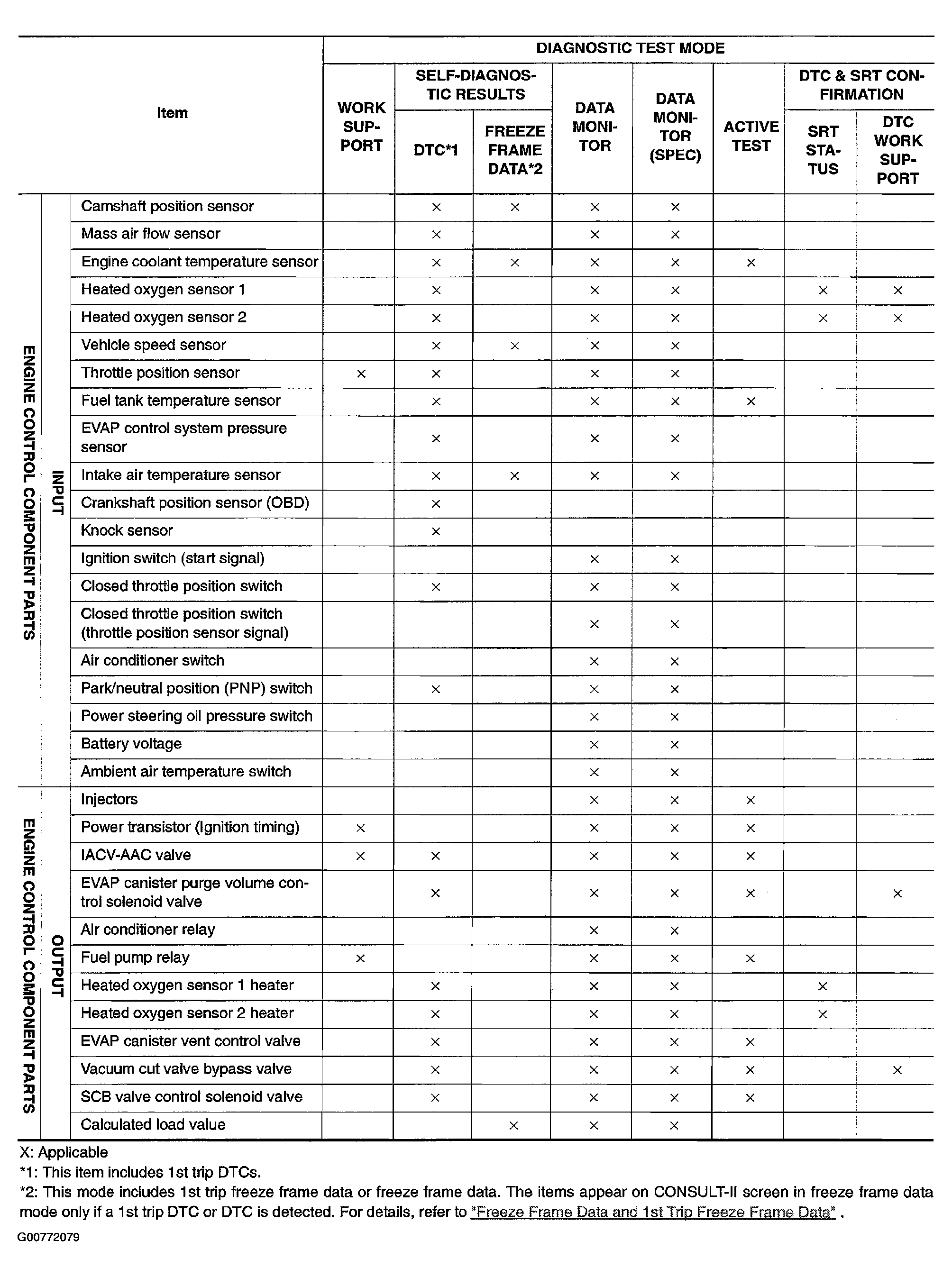

Fig 1: Diagnostic Test Mode Chart
G00772079Courtesy of NISSAN MOTOR CO., U.S.A.

X: Applicable

  1. This item includes 1st trip DTCs.
  2. This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data mode only if a 1st trip DTC or DTC is detected. For details, refer to "FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA ".
