DTC No. Index
WARNING: This page is about a different variant/trim than selected.

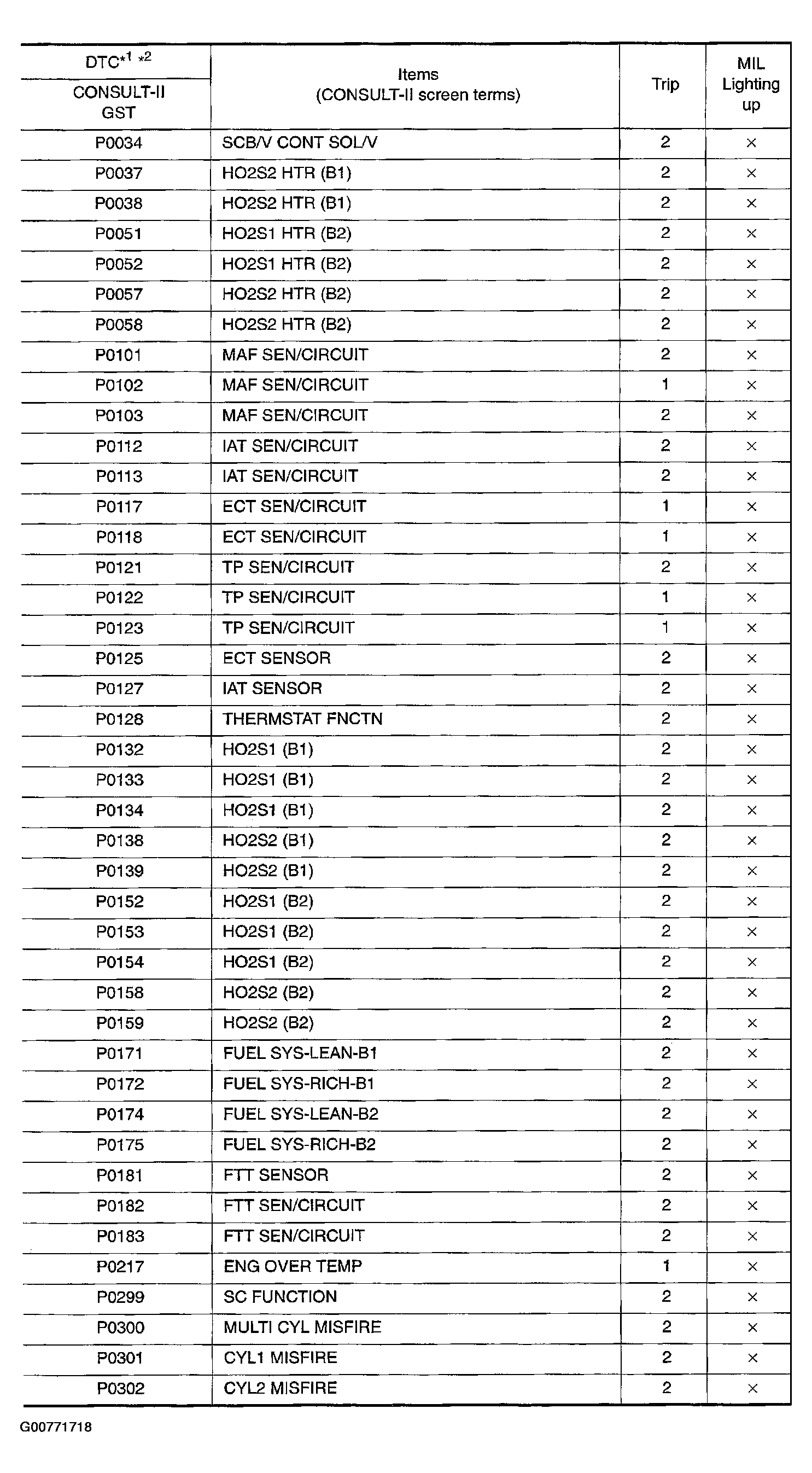

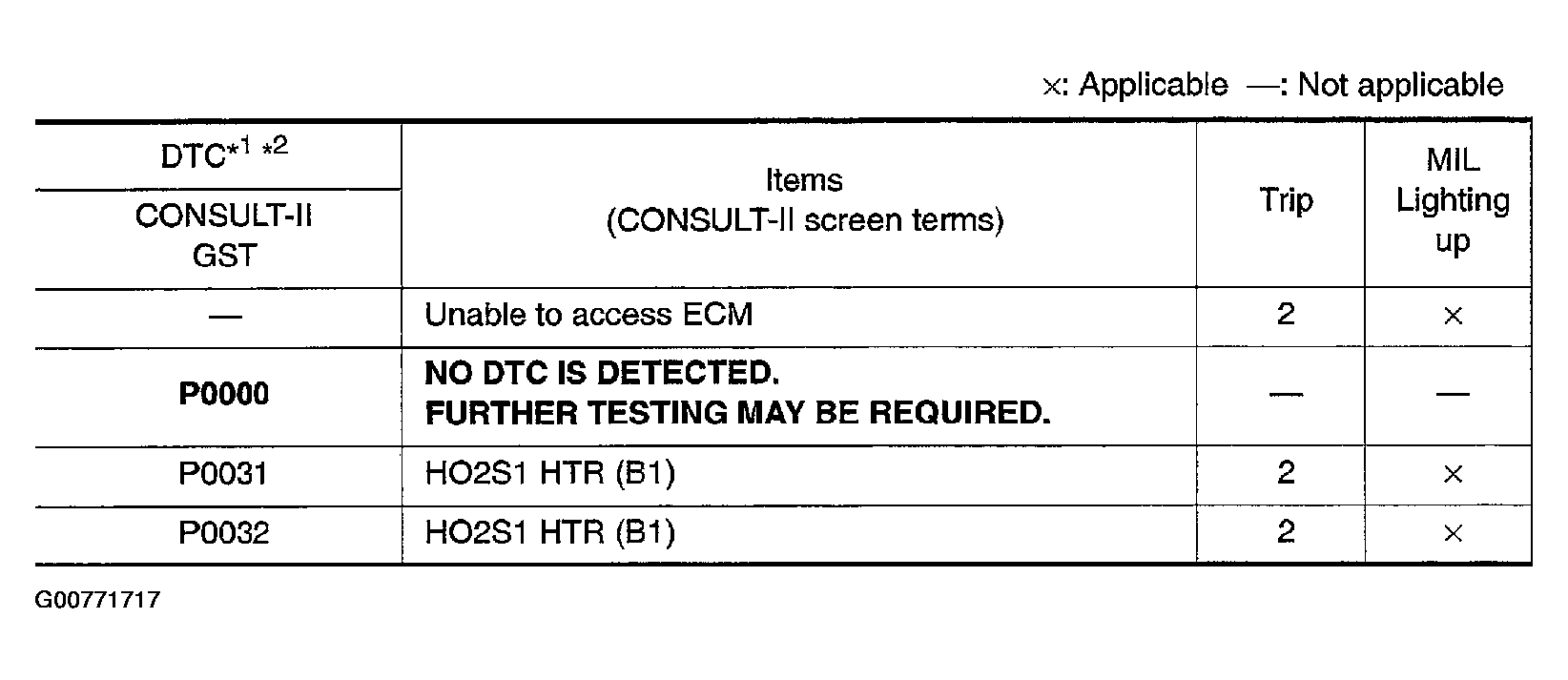

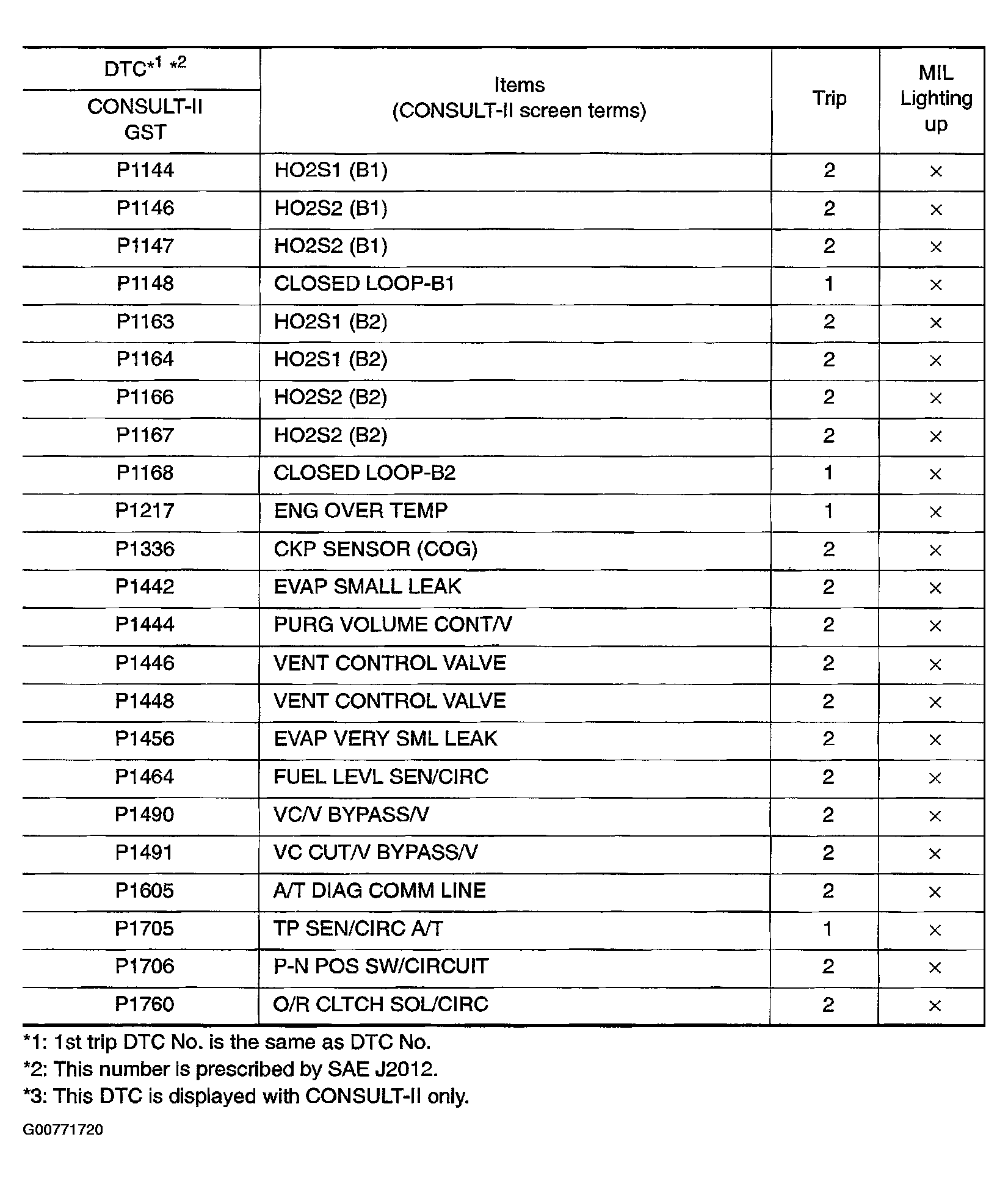

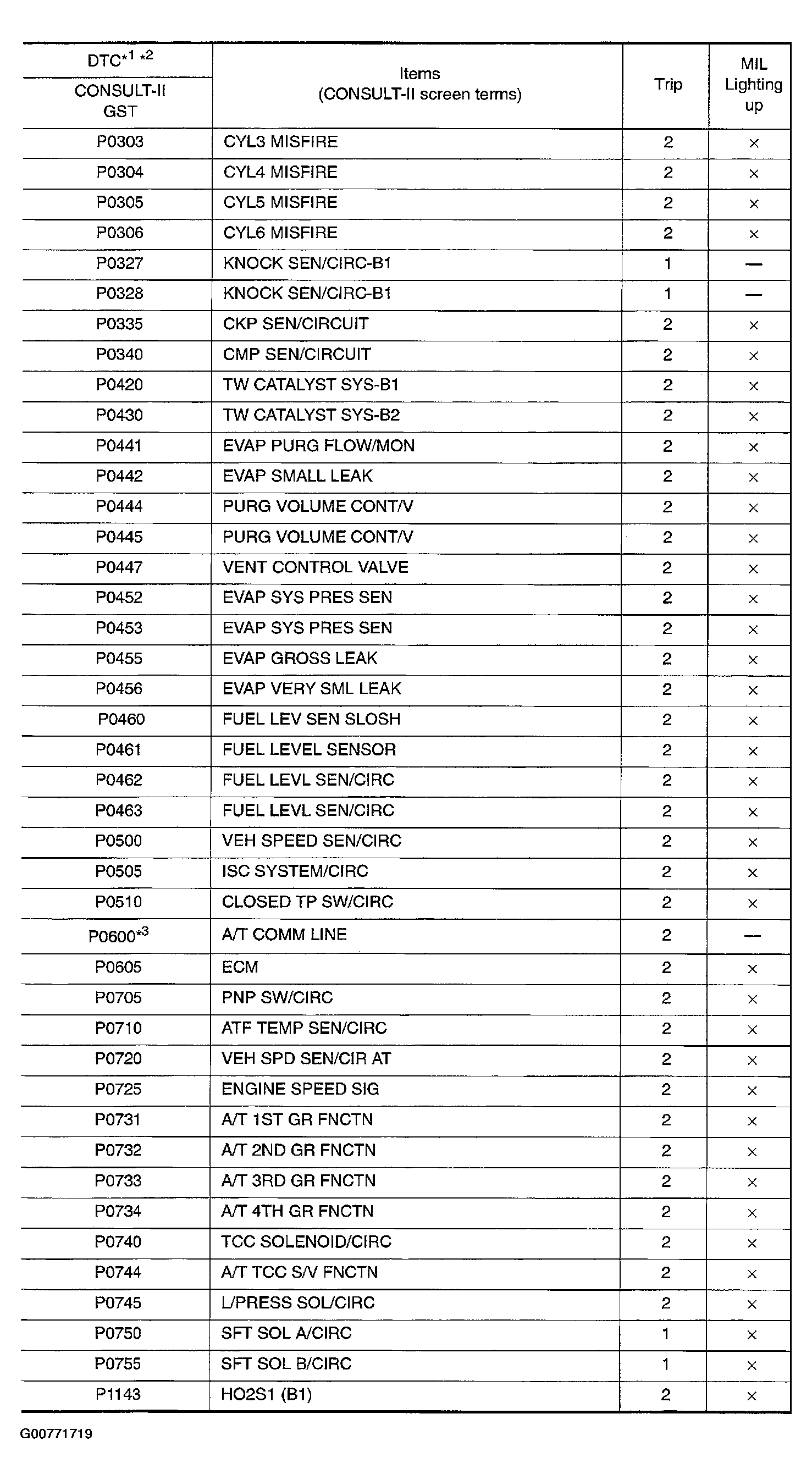

DTC INDEX
| DTC | Description |
|---|---|
| DTC P0031, P0032, P0051, P0052 | HO2S1 HEATER |
| DTC P0034 | SCB VALVE CONTROL SOLENOID VALVE |
| DTC P0037, P0038, P0057, P0058 | HO2S2 HEATER |
| DTC P0101 | MAF SENSOR |
| DTC P0102, P0103 | MAF SENSOR |
| DTC P0112, P0113 | IAT SENSOR |
| DTC P0117, P0118 | ECT SENSOR |
| DTC P0121 | TP SENSOR |
| DTC P0122, P0123 | TP SENSOR |
| DTC P0125 | ECT SENSOR |
| DTC P0127 | IAT SENSOR |
| DTC P0128 | THERMOSTAT FUNCTION |
| DTC P0132, P0152 | HO2S1 |
| DTC P0133, P0153 | HO2S1 |
| DTC P0134, P0154 | HO2S1 |
| DTC P0138 | HO2S2 |
| DTC P0139, P0159 | HO2S2 |
| DTC P0171, P0174 | FUEL INJECTION SYSTEM FUNCTION |
| DTC P0172, P0175 | FUEL INJECTION SYSTEM FUNCTION |
| DTC P0181 | FTT SENSOR |
| DTC P0182, P0183 | FTT SENSOR |
| DTC P0217 | COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION |
| DTC P0299 | SUPERCHARGER FUNCTION |
| DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306 | MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MISFIRE |
| DTC P0327, P0328 | KS |
| DTC P0335 | CKP SENSOR (OBD) |
| DTC P0340 | CMP SENSOR |
| DTC P0420, P0430 | THREE WAY CATALYST FUNCTION |
| DTC P0441 | EVAP CONTROL SYSTEM |
| DTC P0442 | EVAP CONTROL SYSTEM |
| DTC P0444, P0445 | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| DTC P0447 | EVAP CANISTER VENT CONTROL VALVE |
| DTC P0452 | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| DTC P0453 | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| DTC P0455 | EVAP CONTROL SYSTEM |
| DTC P0456 | EVAP CONTROL SYSTEM |
| DTC P0460 | FUEL LEVEL SENSOR |
| DTC P0461 | FUEL LEVEL SENSOR |
| DTC P0462, P0463 | FUEL LEVEL SENSOR |
| DTC P0500 | VSS |
| DTC P0505 | ISC SYSTEM |
| DTC P0510 | CLOSED TP SWITCH |
| DTC P0600 | A/T COMMUNICATION LINE |
| DTC P0605 | ECM |
| DTC P1143, P1163 | HO2S1 |
| DTC P1144, P1164 | HO2S1 |
| DTC P1146, P1166 | HO2S2 |
| DTC P1147, P1167 | HO2S2 |
| DTC P1148, P1168 | CLOSED LOOP CONTROL |
| DTC P1217 | ENGINE OVER TEMPERATURE (OVERHEAT) |
| DTC P1336 | CKP SENSOR (OBD) |
| DTC P1442 | EVAP CONTROL SYSTEM |
| DTC P1444 | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| DTC P1446 | EVAP CANISTER VENT CONTROL VALVE |
| DTC P1448 | EVAP CANISTER VENT CONTROL VALVE |
| DTC P1456 | EVAP CONTROL SYSTEM |
| DTC P1464 | FUEL LEVEL SENSOR |
| DTC P1490 | VACUUM CUT VALVE BYPASS VALVE |
| DTC P1491 | VACUUM CUT VALVE BYPASS VALVE |
| DTC P1605 | A/T DIAGNOSIS COMMUNICATION LINE |
| DTC P1706 | PNP SWITCH |
