On Board Diagnosis Logic

WARNING: This page is about a different variant/trim than selected.

NOTE: If DTC P1442 is displayed with P1448, perform trouble diagnosis for DTC P1448 first. (See DTC P1448 EVAP CANISTER VENT CONTROL VALVE .)

This diagnosis detects leaks in the EVAP purge line using of vapor pressure in the fuel tank.

The EVAP canister vent control valve is closed to shut the EVAP purge line. The vacuum cut valve bypass valve will then be opened to clear the line between the fuel tank and the EVAP canister purge volume control solenoid valve. The EVAP control system pressure sensor can now monitor the pressure inside the fuel tank.

If pressure increases, the ECM will check for leaks in the line between the vacuum cut valve and EVAP canister purge volume control solenoid valve.

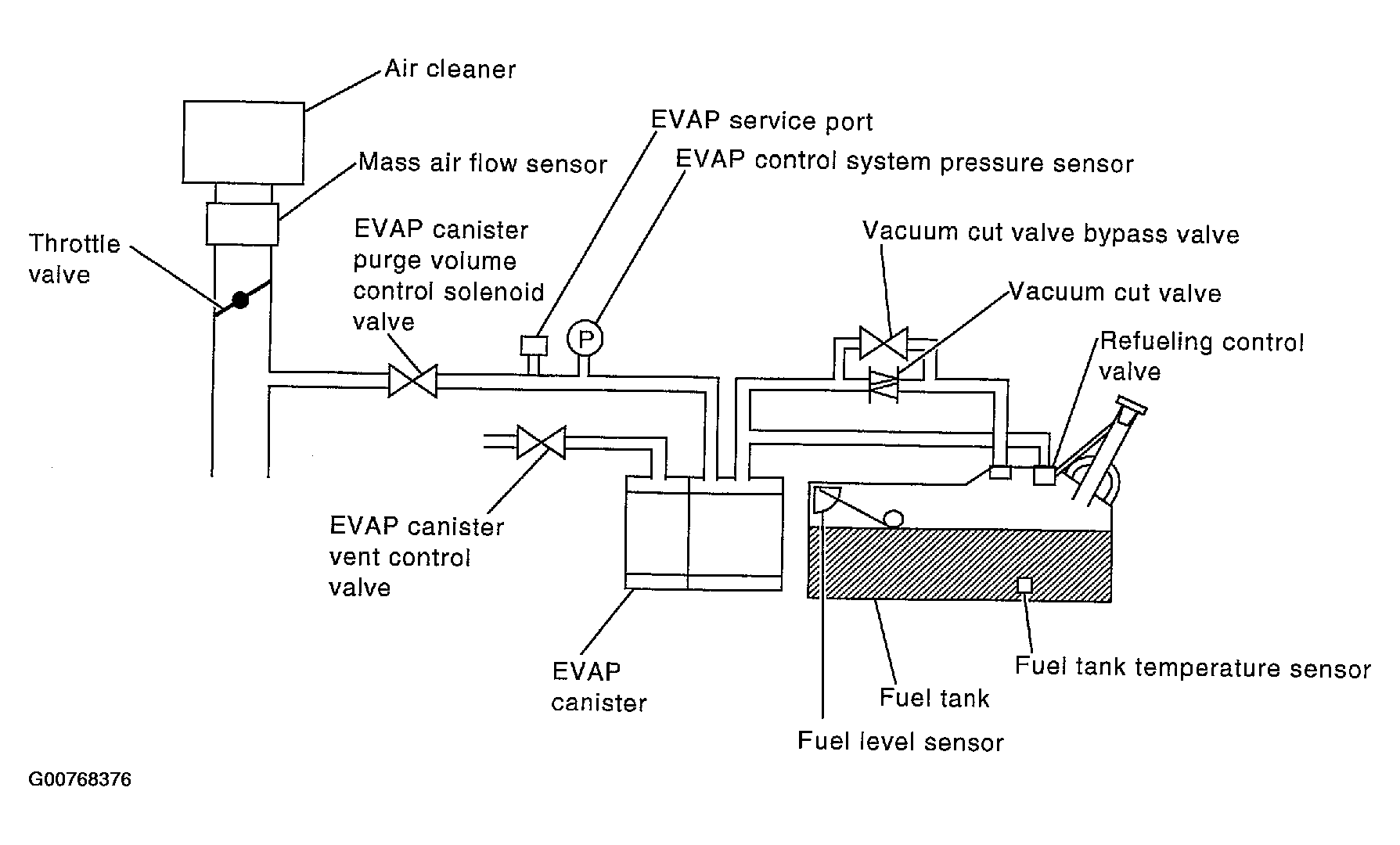

Fig 1: Identifying EVAP Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

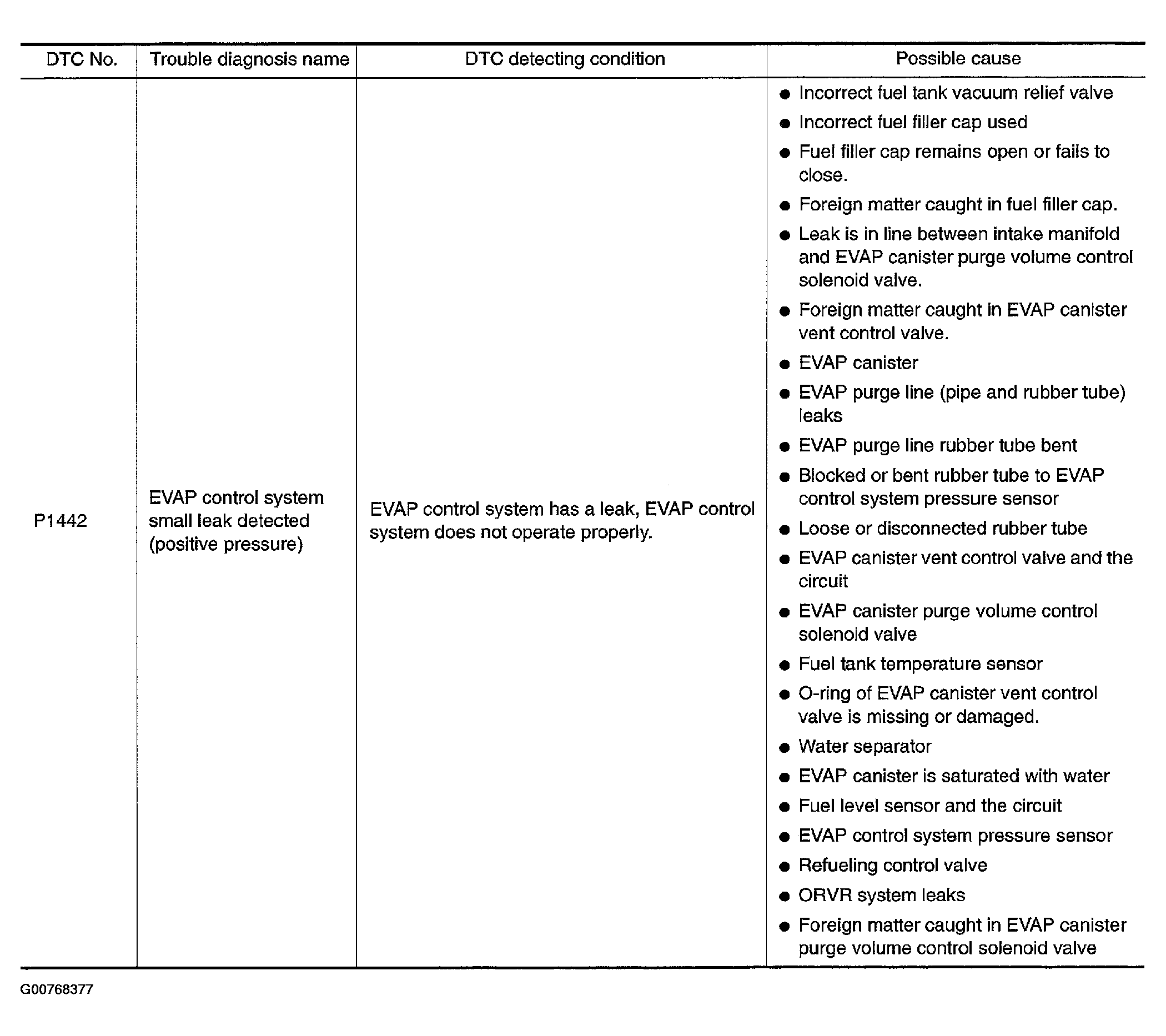

Fig 2: DTC Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
If the fuel filler cap is not tightened properly, the MIL may come on.
Use only a genuine NISSAN rubber tube as a replacement.
