DTC Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
Start engine.
Maintain the following conditions for at least 5 seconds.

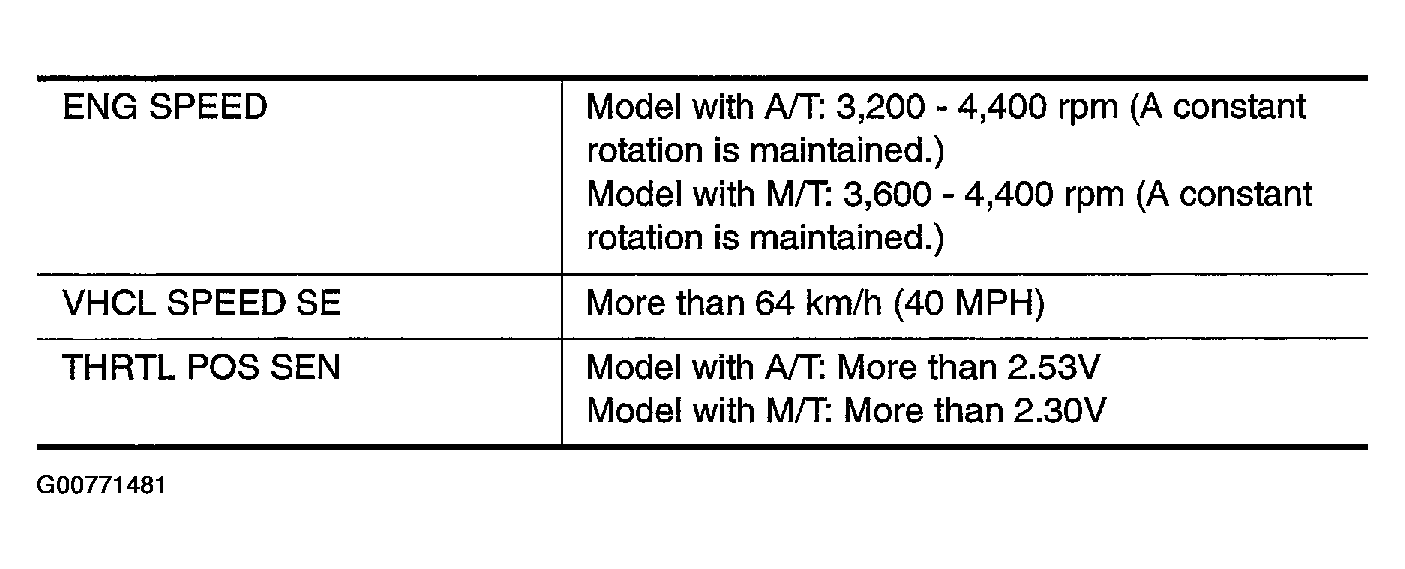

Fig 1: Conditions Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

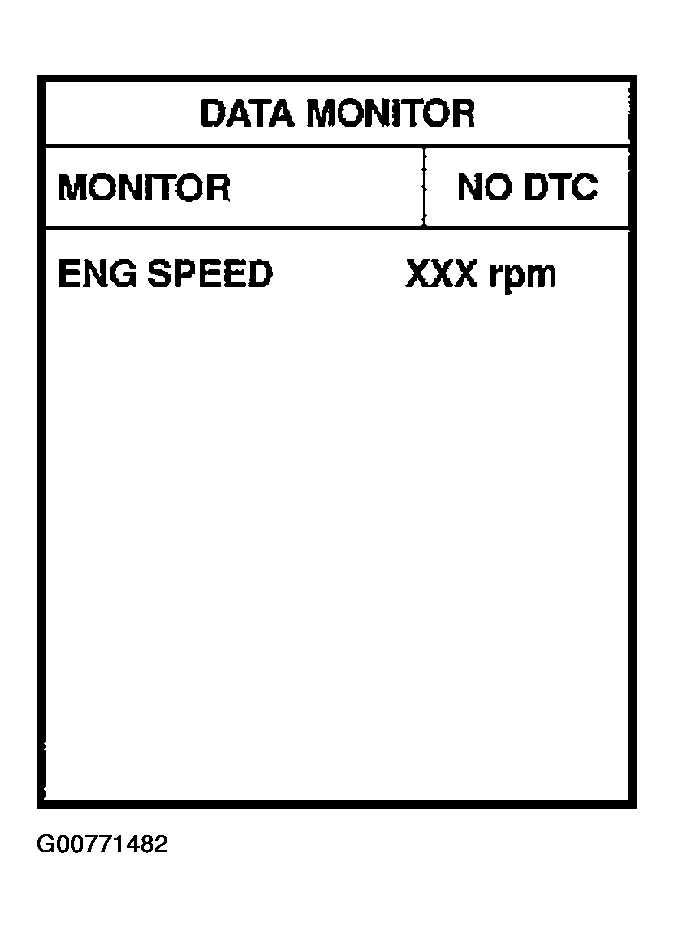

Fig 2: Displaying Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

WITH GST

Follow the procedure "WITH CONSULT-II" above.
